Nexperia BC817DPN NPN/PNP general purpose transistor 13. Soldering

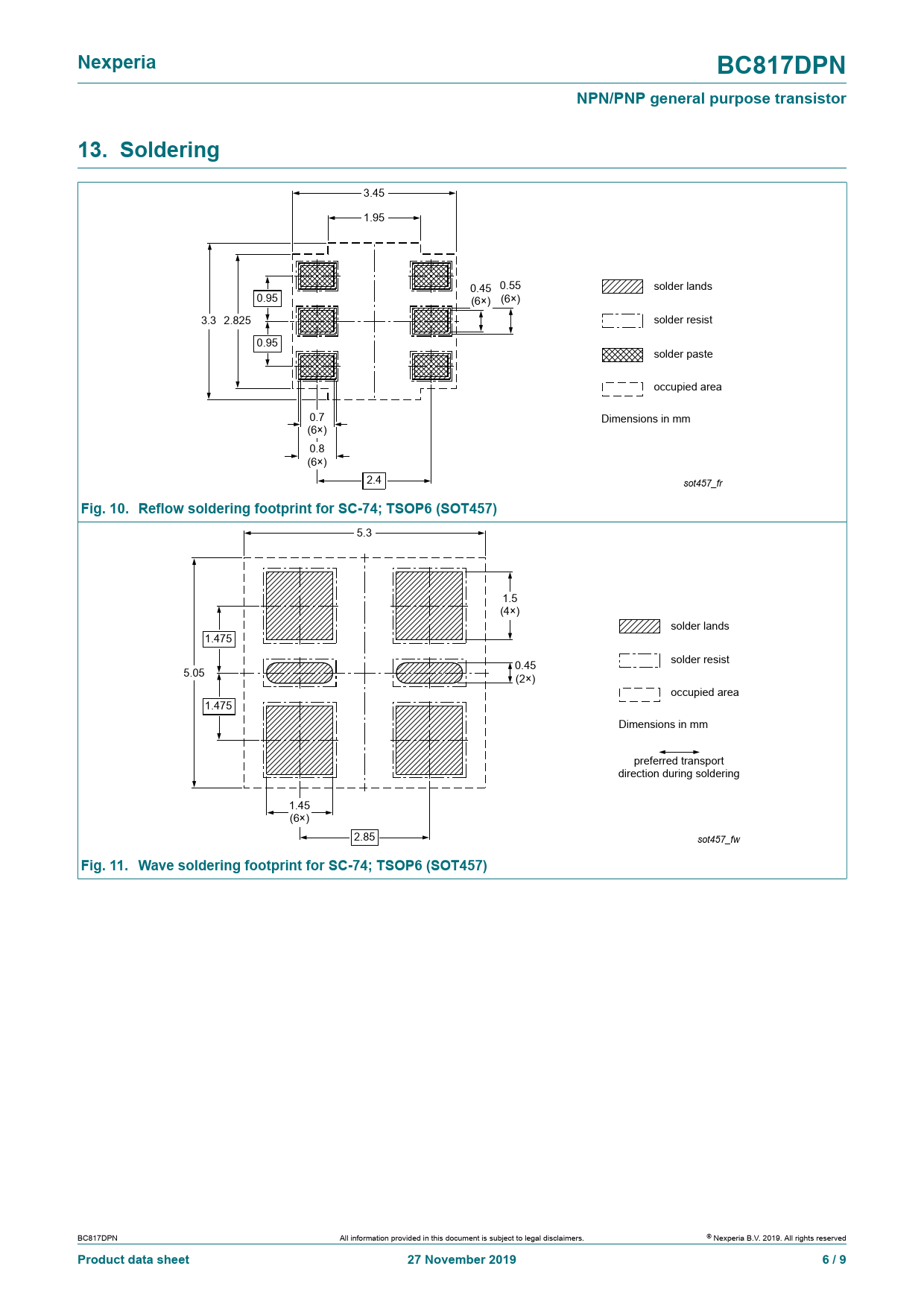

3.45 1.95 0.45 0.55 solder lands 0.95 (6×) (6×) 3.3 2.825 solder resist 0.95 solder paste occupied area 0.7 Dimensions in mm (6×) 0.8 (6×) 2.4 sot457_fr
Fig. 10. Reflow soldering footprint for SC-74; TSOP6 (SOT457)
5.3 1.5 (4×) solder lands 1.475 solder resist 5.05 0.45 (2×) occupied area 1.475 Dimensions in mm preferred transport direction during soldering 1.45 (6×) 2.85 sot457_fw
Fig. 11. Wave soldering footprint for SC-74; TSOP6 (SOT457)
BC817DPN All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2019. Al rights reserved
Product data sheet 27 November 2019 6 / 9
