Datasheet HCPL-181 (Broadcom) - 2
| Fabricante | Broadcom |
| Descripción | Phototransistor Optocoupler SMD Mini-Flat Type |
| Páginas / Página | 8 / 2 — HCPL-181. Ordering Information. RoHS Compliant Option. Rank '0' Rank 'A' … |
| Formato / tamaño de archivo | PDF / 828 Kb |
| Idioma del documento | Inglés |
HCPL-181. Ordering Information. RoHS Compliant Option. Rank '0' Rank 'A' Rank 'B' Rank 'C'. Rank 'D'. 50%. 80%. 130%. 200%. 300%. Part
Línea de modelo para esta hoja de datos
Versión de texto del documento
HCPL-181

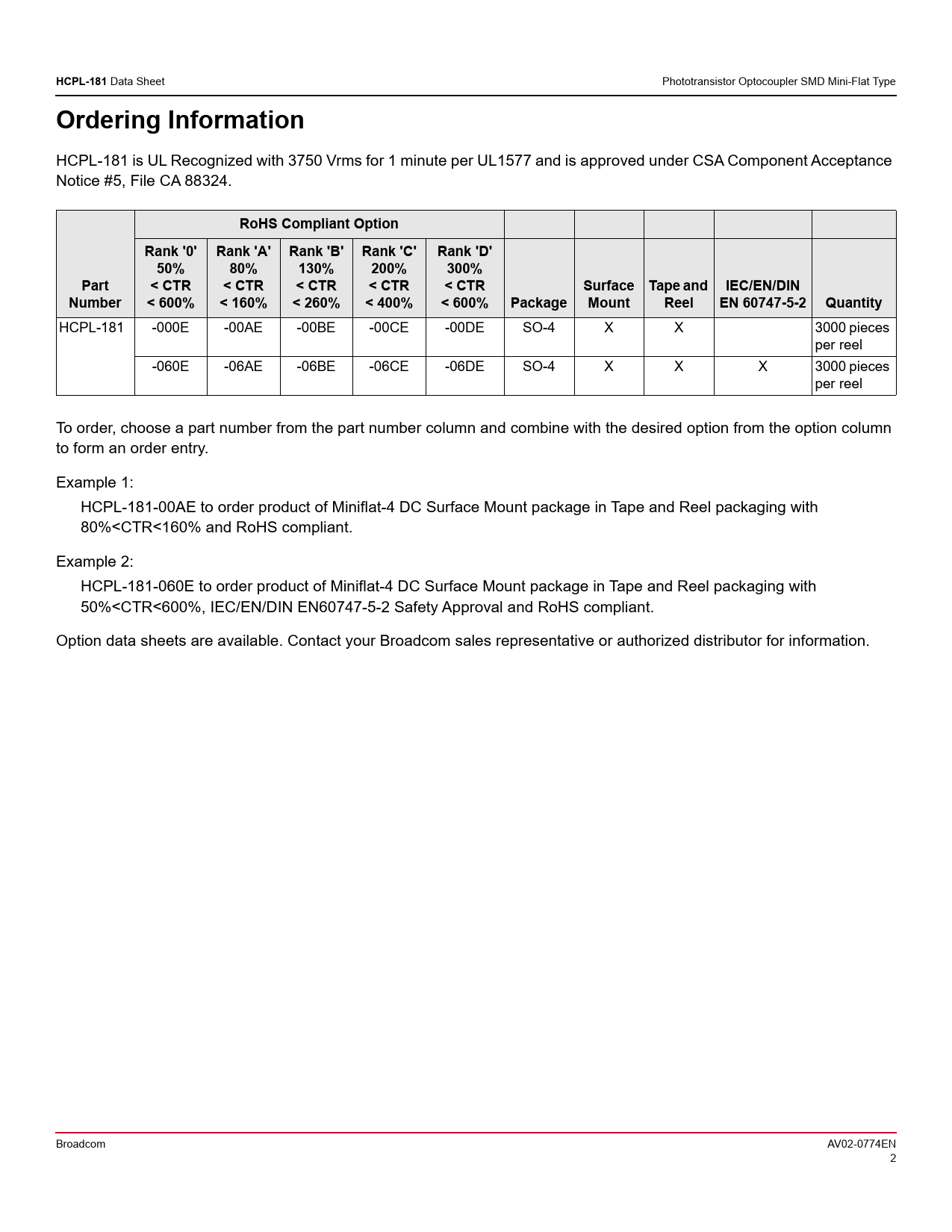

Data Sheet Phototransistor Optocoupler SMD Mini-Flat Type
Ordering Information
HCPL-181 is UL Recognized with 3750 Vrms for 1 minute per UL1577 and is approved under CSA Component Acceptance Notice #5, File CA 88324.
RoHS Compliant Option Rank '0' Rank 'A' Rank 'B' Rank 'C' Rank 'D' 50% 80% 130% 200% 300% Part < CTR < CTR < CTR < CTR < CTR Surface Tape and IEC/EN/DIN Number < 600% < 160% < 260% < 400% < 600% Package Mount Reel EN 60747-5-2 Quantity
HCPL-181 -000E -00AE -00BE -00CE -00DE SO-4 X X 3000 pieces per reel -060E -06AE -06BE -06CE -06DE SO-4 X X X 3000 pieces per reel To order, choose a part number from the part number column and combine with the desired option from the option column to form an order entry. Example 1: HCPL-181-00AE to order product of Miniflat-4 DC Surface Mount package in Tape and Reel packaging with 80%<CTR<160% and RoHS compliant. Example 2: HCPL-181-060E to order product of Miniflat-4 DC Surface Mount package in Tape and Reel packaging with 50%<CTR<600%, IEC/EN/DIN EN60747-5-2 Safety Approval and RoHS compliant. Option data sheets are available. Contact your Broadcom sales representative or authorized distributor for information. Broadcom AV02-0774EN 2 Document Outline Description Schematic Functional Diagram Features Applications Ordering Information Package Outline Drawings HCPL-181-000E HCPL-181-060E Solder Reflow Temperature Profile Absolute Maximum Ratings (TA = 25°C) Electrical Specifications (TA = 25°C) Test Circuit for Response Time Test Circuit for Frequency Response
