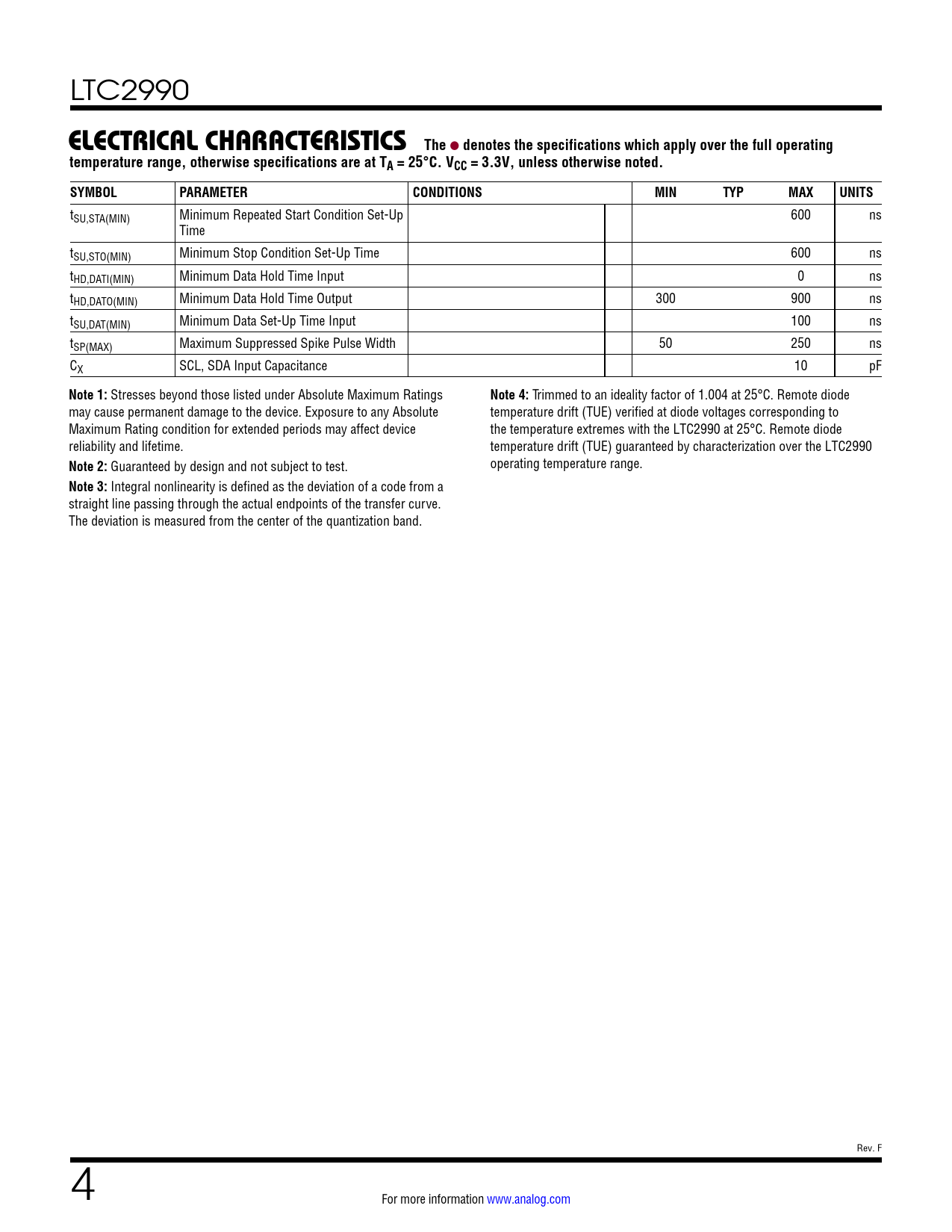

ELECTRICAL CHARACTERISTICS The. denotes the specifications which apply over the full operating

ELECTRICAL CHARACTERISTICS The denotes the specifications which apply over the full operating

Línea de modelo para esta hoja de datos

Versión de texto del documento

link to page 2 LTC2990
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. VCC = 3.3V, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
tSU,STA(MIN) Minimum Repeated Start Condition Set-Up 600 ns Time tSU,STO(MIN) Minimum Stop Condition Set-Up Time 600 ns tHD,DATI(MIN) Minimum Data Hold Time Input 0 ns tHD,DATO(MIN) Minimum Data Hold Time Output 300 900 ns tSU,DAT(MIN) Minimum Data Set-Up Time Input 100 ns tSP(MAX) Maximum Suppressed Spike Pulse Width 50 250 ns CX SCL, SDA Input Capacitance 10 pF
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings
Note 4:
Trimmed to an ideality factor of 1.004 at 25°C. Remote diode may cause permanent damage to the device. Exposure to any Absolute temperature drift (TUE) verified at diode voltages corresponding to Maximum Rating condition for extended periods may affect device the temperature extremes with the LTC2990 at 25°C. Remote diode reliability and lifetime. temperature drift (TUE) guaranteed by characterization over the LTC2990
Note 2:
Guaranteed by design and not subject to test. operating temperature range.
Note 3:
Integral nonlinearity is defined as the deviation of a code from a straight line passing through the actual endpoints of the transfer curve. The deviation is measured from the center of the quantization band. Rev. F 4 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Electrical Characteristics Pin Configuration Pin Functions Functional Diagram Timing Diagram Operation Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
