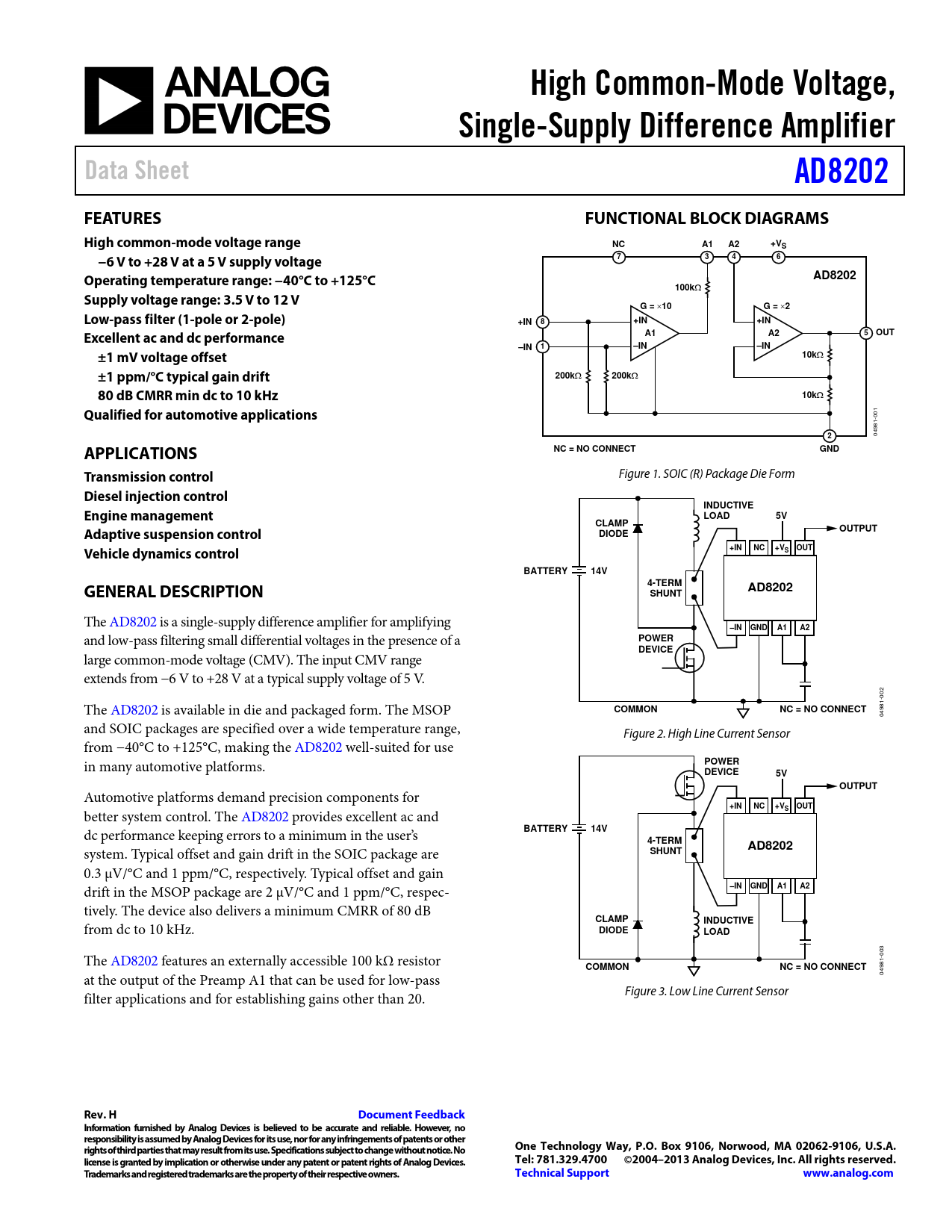

High Common-Mode Voltage,. Single-Supply Difference Amplifier. Data Sheet. AD8202. FEATURES. FUNCTIONAL BLOCK DIAGRAMS

Datasheet AD8202 Analog Devices, Revisión: H

Línea de modelo para esta hoja de datos

Versión de texto del documento

High Common-Mode Voltage, Single-Supply Difference Amplifier Data Sheet AD8202 FEATURES FUNCTIONAL BLOCK DIAGRAMS High common-mode voltage range NC A1 A2 +VS −6 V to +28 V at a 5 V supply voltage 7 3 4 6 Operating temperature range: −40°C to +125°C AD8202 100k

Supply voltage range: 3.5 V to 12 V G =
×
10 G =
×
2 Low-pass filter (1-pole or 2-pole) +IN 8 +IN +IN Excellent ac and dc performance A1 A2 5 OUT –IN 1 –IN –IN ±1 mV voltage offset 10k

±1 ppm/°C typical gain drift 200k

200k

80 dB CMRR min dc to 10 kHz 10k

Qualified for automotive applications 2
04981-001
APPLICATIONS NC = NO CONNECT GND Transmission control
Figure 1. SOIC (R) Package Die Form
Diesel injection control INDUCTIVE Engine management LOAD 5V CLAMP Adaptive suspension control OUTPUT DIODE Vehicle dynamics control +IN NC +VS OUT BATTERY 14V GENERAL DESCRIPTION 4-TERM AD8202 SHUNT
The AD8202 is a single-supply difference amplifier for amplifying
–IN GND A1 A2
and low-pass filtering small differential voltages in the presence of a
POWER DEVICE
large common-mode voltage (CMV). The input CMV range extends from −6 V to +28 V at a typical supply voltage of 5 V. The AD8202 is available in die and packaged form. The MSOP
COMMON NC = NO CONNECT
04981-002 and SOIC packages are specified over a wide temperature range, Figure 2. High Line Current Sensor from −40°C to +125°C, making the AD8202 wel -suited for use in many automotive platforms.
POWER DEVICE 5V OUTPUT
Automotive platforms demand precision components for
+IN NC +V OUT
better system control. The AD8202 provides excellent ac and
S
dc performance keeping errors to a minimum in the user’s
BATTERY 14V 4-TERM
system. Typical offset and gain drift in the SOIC package are
AD8202 SHUNT
0.3 µV/°C and 1 ppm/°C, respectively. Typical offset and gain drift in the MSOP package are 2 µV/°C and 1 ppm/°C, respec-
–IN GND A1 A2
tively. The device also delivers a minimum CMRR of 80 dB
CLAMP
from dc to 10 kHz.
INDUCTIVE DIODE LOAD
The AD8202 features an external y accessible 100 kΩ resistor
COMMON NC = NO CONNECT
at the output of the Preamp A1 that can be used for low-pass 04981-003 filter applications and for establishing gains other than 20. Figure 3. Low Line Current Sensor
