Datasheet TLS715B0NAV50 (Infineon) - 4
| Fabricante | Infineon |
| Descripción | OPTIREG Linear TLS715B0NAV50. Low dropout li near voltage regulator |
| Páginas / Página | 22 / 4 — OPTIREG™ Linear TLS715B0NAV50 Low dropout linear voltage regulator Block … |
| Revisión | 01_10 |
| Formato / tamaño de archivo | PDF / 686 Kb |
| Idioma del documento | Inglés |

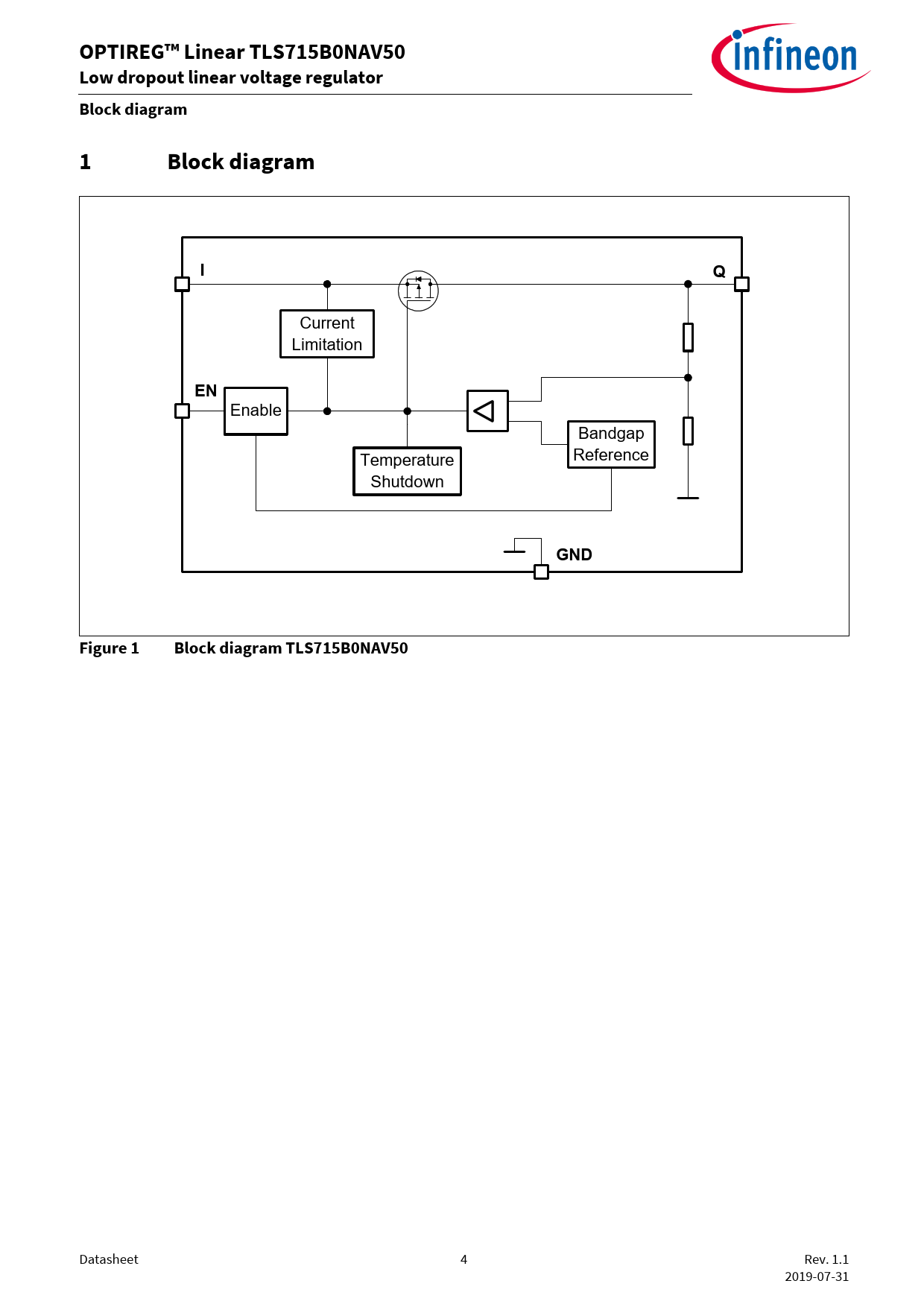

OPTIREG™ Linear TLS715B0NAV50 Low dropout linear voltage regulator Block diagram. Block diagram. GND. Figure 1
Línea de modelo para esta hoja de datos
Versión de texto del documento
OPTIREG™ Linear TLS715B0NAV50 Low dropout linear voltage regulator Block diagram 1 Block diagram I Q
Current Limitation
EN
Enable Bandgap Reference Temperature Shutdown
GND Figure 1 Block diagram TLS715B0NAV50
