TC78H670FTG
Timing Chart of Step Resolution Setting and Initial Angle

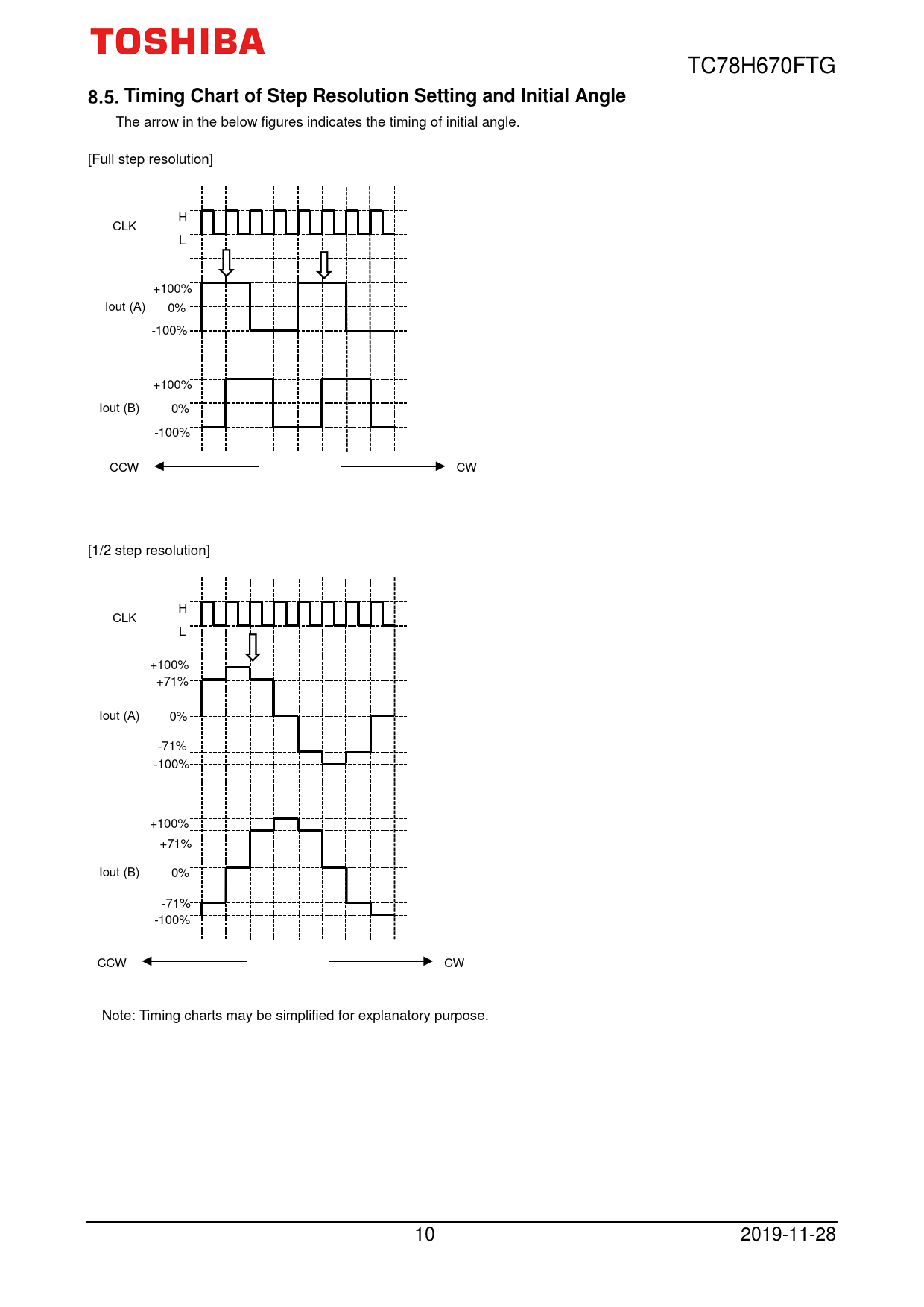

The arrow in the below figures indicates the timing of initial angle. [Full step resolution] H CLK L +100% Iout (A) 0% -100% +100% Iout (B) 0% -100% CCW CW [1/2 step resolution] H CLK L +100% +71% Iout (A) 0% -71% -100% +100% +71% Iout (B) 0% -71% -100% CCW CW Note: Timing charts may be simplified for explanatory purpose. 10 2019-11-28
Timing Chart of Step Resolution Setting and Initial Angle
The arrow in the below figures indicates the timing of initial angle. [Full step resolution] H CLK L +100% Iout (A) 0% -100% +100% Iout (B) 0% -100% CCW CW [1/2 step resolution] H CLK L +100% +71% Iout (A) 0% -71% -100% +100% +71% Iout (B) 0% -71% -100% CCW CW Note: Timing charts may be simplified for explanatory purpose. 10 2019-11-28
