TLP3106A. Photocouplers. Photorelay. TLP3106A. 1. Applications. •. Mechanical. relay. replacements. •. Factory. Automation. (FA). •. Measuring

Datasheet TLP3106A Toshiba

Línea de modelo para esta hoja de datos

Versión de texto del documento

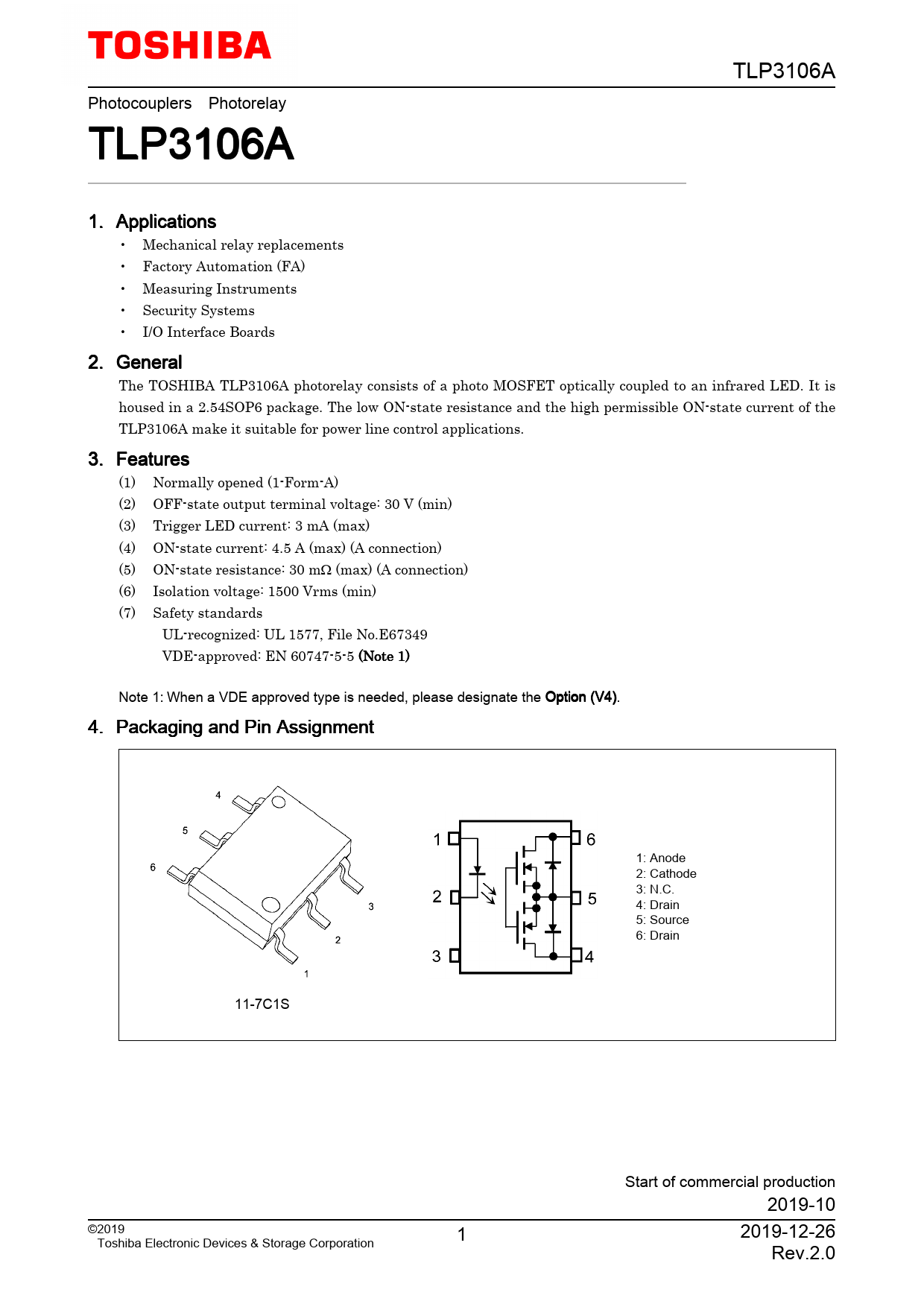

TLP3106A Photocouplers Photorelay TLP3106A 1. Applications • Mechanical relay replacements • Factory Automation (FA) • Measuring Instruments • Security Systems • I/O Interface Boards 2. General The TOSHIBA TLP3106A photorelay consists of a photo MOSFET optically coupled to an infrared LED. It is housed in a 2.54SOP6 package. The low ON-state resistance and the high permissible ON-state current of the TLP3106A make it suitable for power line control applications. 3. Features (1) Normally opened (1-Form-A) (2) OFF-state output terminal voltage: 30 V (min) (3) Trigger LED current: 3 mA (max) (4) ON-state current: 4.5 A (max) (A connection) (5) ON-state resistance: 30 mΩ (max) (A connection) (6) Isolation voltage: 1500 Vrms (min) (7) Safety standards UL-recognized: UL 1577, File No.E67349 VDE-approved: EN 60747-5-5 (Note 1) Note 1: When a VDE approved type is needed, please designate the Option (V4). 4. Packaging and Pin Assignment 1: Anode 2: Cathode 3: N.C. 4: Drain 5: Source 6: Drain 11-7C1S Start of commercial production 2019-10 ©2019 1 2019-12-26 Toshiba Electronic Devices & Storage Corporation Rev.2.0
