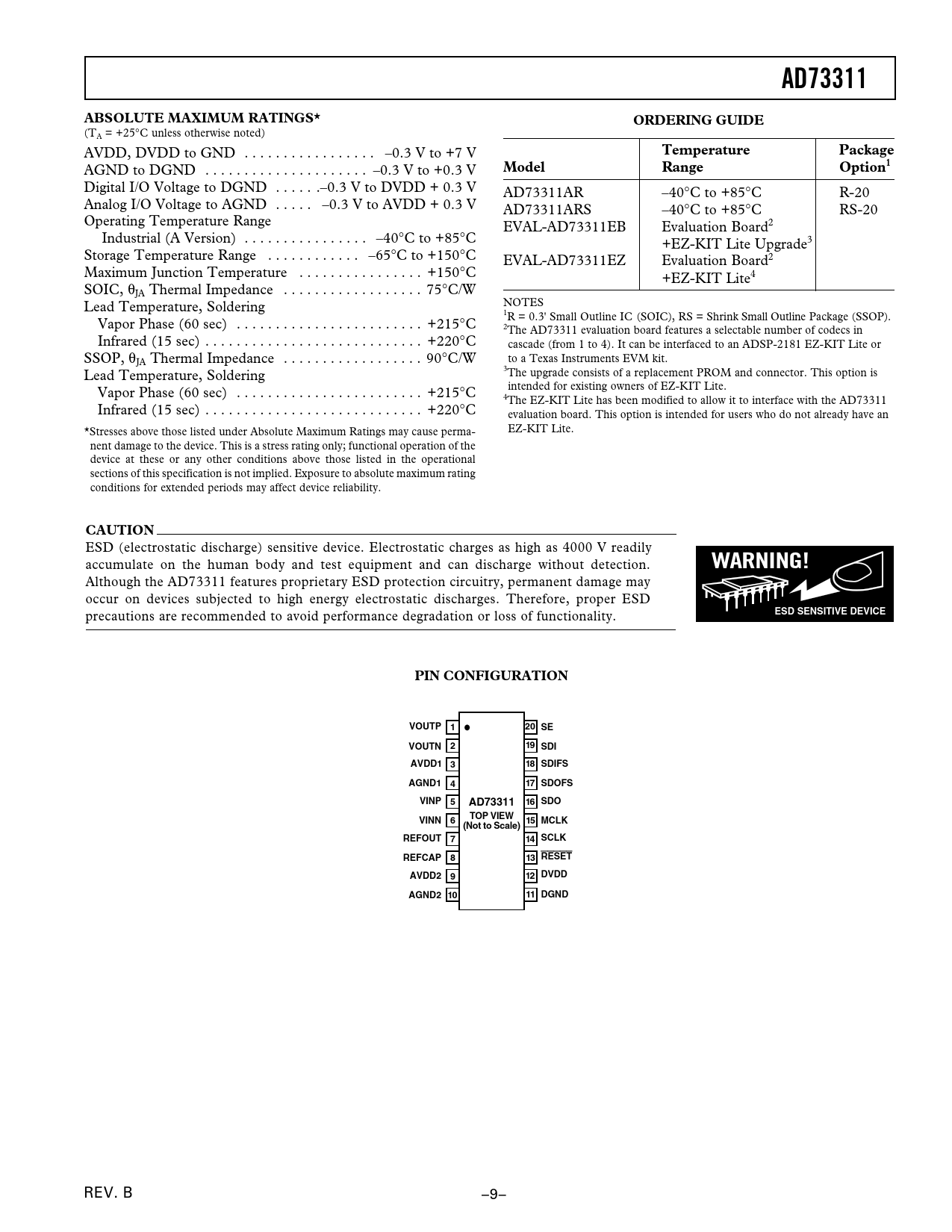

AD73311. ABSOLUTE MAXIMUM RATINGS*. ORDERING GUIDE. Temperature. Package. Model. Range. Option1. CAUTION. WARNING!. ESD SENSITIVE DEVICE
Línea de modelo para esta hoja de datos
Versión de texto del documento
AD73311 ABSOLUTE MAXIMUM RATINGS* ORDERING GUIDE
(TA = +25°C unless otherwise noted) AVDD, DVDD to GND . –0.3 V to +7 V
Temperature Package
AGND to DGND . –0.3 V to +0.3 V
Model Range Option1
Digital I/O Voltage to DGND . .–0.3 V to DVDD + 0.3 V AD73311AR –40°C to +85°C R-20 Analog I/O Voltage to AGND . –0.3 V to AVDD + 0.3 V AD73311ARS –40°C to +85°C RS-20 Operating Temperature Range EVAL-AD73311EB Evaluation Board2 Industrial (A Version) . –40°C to +85°C +EZ-KIT Lite Upgrade3 Storage Temperature Range . –65°C to +150°C EVAL-AD73311EZ Evaluation Board2 Maximum Junction Temperature . +150°C +EZ-KIT Lite4 SOIC, θJA Thermal Impedance . 75°C/W Lead Temperature, Soldering NOTES 1R = 0.3' Small Outline IC (SOIC), RS = Shrink Small Outline Package (SSOP). Vapor Phase (60 sec) . +215°C 2The AD73311 evaluation board features a selectable number of codecs in Infrared (15 sec) . +220°C cascade (from 1 to 4). It can be interfaced to an ADSP-2181 EZ-KIT Lite or SSOP, θJA Thermal Impedance . 90°C/W to a Texas Instruments EVM kit. 3 Lead Temperature, Soldering The upgrade consists of a replacement PROM and connector. This option is Vapor Phase (60 sec) . +215°C intended for existing owners of EZ-KIT Lite. 4The EZ-KIT Lite has been modified to allow it to interface with the AD73311 Infrared (15 sec) . +220°C evaluation board. This option is intended for users who do not already have an *Stresses above those listed under Absolute Maximum Ratings may cause perma- EZ-KIT Lite. nent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those listed in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection.
WARNING!
Although the AD73311 features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD precautions are recommended to avoid performance degradation or loss of functionality.
ESD SENSITIVE DEVICE PIN CONFIGURATION VOUTP 1 20 SE VOUTN 2 19 SDI AVDD1 3 18 SDIFS AGND1 4 17 SDOFS VINP 5 AD73311 16 SDO VINN 6 TOP VIEW 15 MCLK (Not to Scale) REFOUT 7 14 SCLK REFCAP 8 13 RESET AVDD2 9 12 DVDD AGND2 10 11 DGND
