Datasheet AIM702H50B (Alpha & Omega) - 2

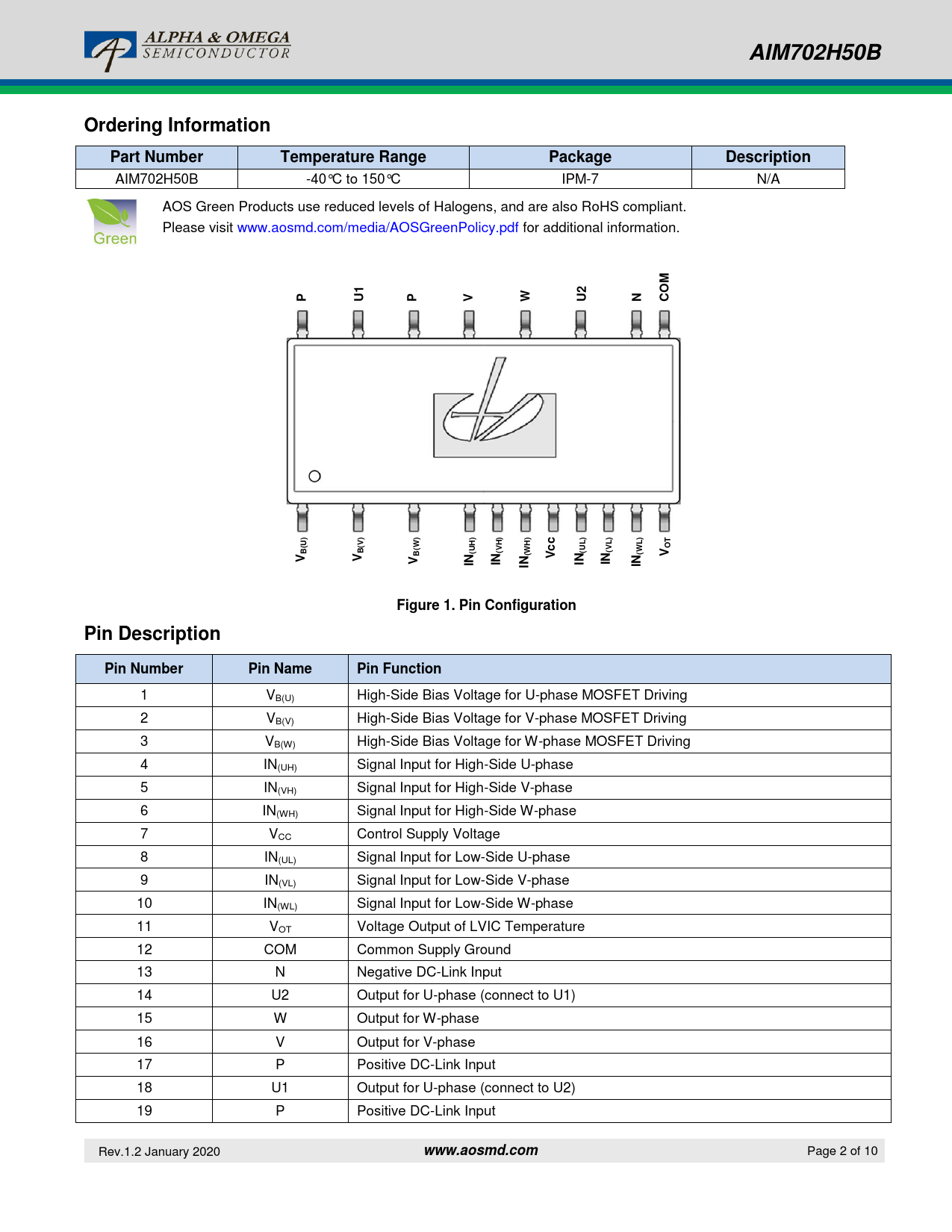

AIM702H50B Ordering Information Part Number Temperature Range Package Description
AIM702H50B -40°C to 150°C IPM-7 N/A AOS Green Products use reduced levels of Halogens, and are also RoHS compliant. Please visit www.aosmd.com/media/AOSGreenPolicy.pdf for additional information.
M 1 2 O P U P V W U N C ) ) ) ) ) ) ) ) ) U V H H H c L L L T ( ( W( U V c U O V B B ( ( W ( ( W B ( ( V V V N N V N V I I N I NI N I I Figure 1. Pin Configuration Pin Description Pin Number Pin Name Pin Function
1 VB(U)

High-Side Bias Voltage for U-phase MOSFET Driving 2 VB(V) High-Side Bias Voltage for V-phase MOSFET Driving 3 VB(W) High-Side Bias Voltage for W-phase MOSFET Driving 4 IN(UH) Signal Input for High-Side U-phase 5 IN(VH) Signal Input for High-Side V-phase 6 IN(WH) Signal Input for High-Side W-phase 7 VCC Control Supply Voltage 8 IN(UL) Signal Input for Low-Side U-phase 9 IN(VL) Signal Input for Low-Side V-phase 10 IN(WL) Signal Input for Low-Side W-phase 11 VOT Voltage Output of LVIC Temperature 12 COM Common Supply Ground 13 N Negative DC-Link Input 14 U2 Output for U-phase (connect to U1) 15 W Output for W-phase 16 V Output for V-phase 17 P Positive DC-Link Input 18 U1 Output for U-phase (connect to U2) 19 P Positive DC-Link Input

Rev.1.2 January 2020
www.aosmd.com
Page 2 of 10
