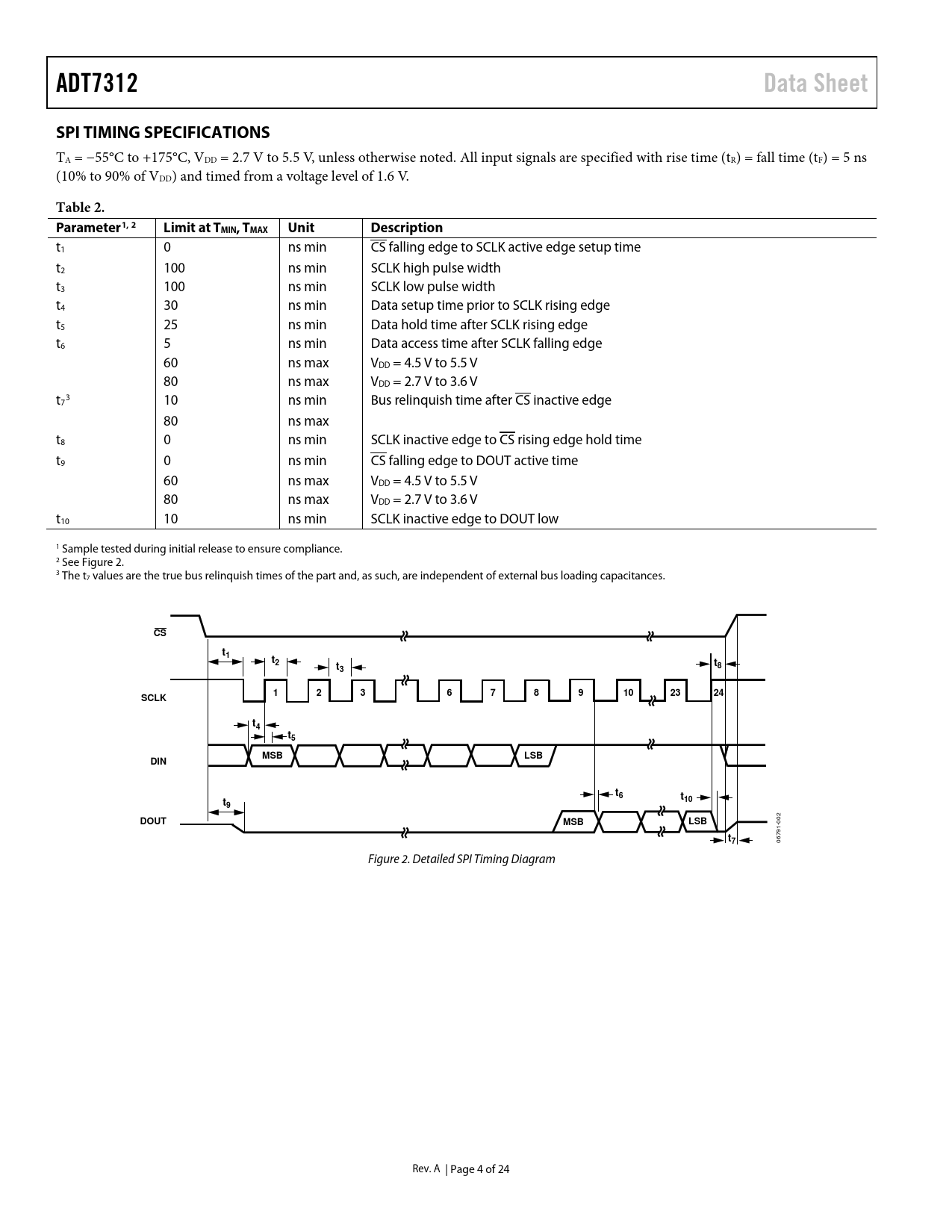

ADT7312 Data Sheet SPI TIMING SPECIFICATIONS
TA = −55°C to +175°C, VDD = 2.7 V to 5.5 V, unless otherwise noted. All input signals are specified with rise time (tR) = fall time (tF) = 5 ns (10% to 90% of VDD) and timed from a voltage level of 1.6 V.
Table 2. Parameter1, 2 Limit at TMIN, TMAX Unit Description
t1 0 ns min CS falling edge to SCLK active edge setup time t2 100 ns min SCLK high pulse width t3 100 ns min SCLK low pulse width t4 30 ns min Data setup time prior to SCLK rising edge t5 25 ns min Data hold time after SCLK rising edge t6 5 ns min Data access time after SCLK falling edge 60 ns max VDD = 4.5 V to 5.5 V 80 ns max VDD = 2.7 V to 3.6 V t 3 7 10 ns min Bus relinquish time after CS inactive edge 80 ns max t8 0 ns min SCLK inactive edge to CS rising edge hold time t9 0 ns min CS falling edge to DOUT active time 60 ns max VDD = 4.5 V to 5.5 V 80 ns max VDD = 2.7 V to 3.6 V t10 10 ns min SCLK inactive edge to DOUT low 1 Sample tested during initial release to ensure compliance. 2 See Figure 2. 3 The t7 values are the true bus relinquish times of the part and, as such, are independent of external bus loading capacitances.
CS t1 t2 t t 3 8 1 2 3 6 7 8 9 10 23 24 SCLK t4 t5 MSB LSB DIN t6 t t 10 9 DOUT MSB LSB
002
t7
