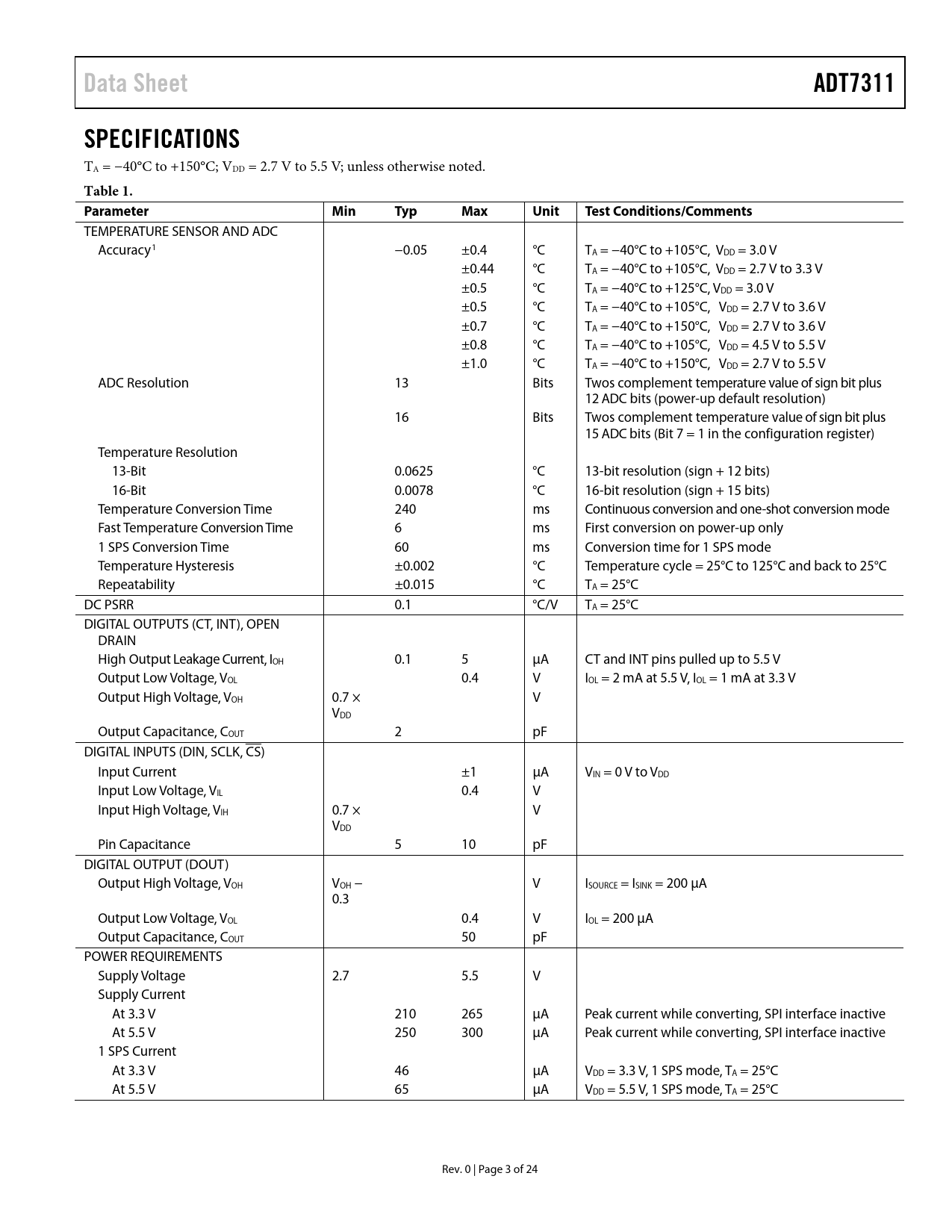

Data Sheet ADT7311 SPECIFICATIONS
TA = −40°C to +150°C; VDD = 2.7 V to 5.5 V; unless otherwise noted.
Table 1. Parameter Min Typ Max Unit Test Conditions/Comments
TEMPERATURE SENSOR AND ADC Accuracy1 −0.05 ±0.4 °C TA = −40°C to +105°C, VDD = 3.0 V ±0.44 °C TA = −40°C to +105°C, VDD = 2.7 V to 3.3 V ±0.5 °C TA = −40°C to +125°C, VDD = 3.0 V ±0.5 °C TA = −40°C to +105°C, VDD = 2.7 V to 3.6 V ±0.7 °C TA = −40°C to +150°C, VDD = 2.7 V to 3.6 V ±0.8 °C TA = −40°C to +105°C, VDD = 4.5 V to 5.5 V ±1.0 °C TA = −40°C to +150°C, VDD = 2.7 V to 5.5 V ADC Resolution 13 Bits Twos complement temperature value of sign bit plus 12 ADC bits (power-up default resolution) 16 Bits Twos complement temperature value of sign bit plus 15 ADC bits (Bit 7 = 1 in the configuration register) Temperature Resolution 13-Bit 0.0625 °C 13-bit resolution (sign + 12 bits) 16-Bit 0.0078 °C 16-bit resolution (sign + 15 bits) Temperature Conversion Time 240 ms Continuous conversion and one-shot conversion mode Fast Temperature Conversion Time 6 ms First conversion on power-up only 1 SPS Conversion Time 60 ms Conversion time for 1 SPS mode Temperature Hysteresis ±0.002 °C Temperature cycle = 25°C to 125°C and back to 25°C Repeatability ±0.015 °C TA = 25°C DC PSRR 0.1 °C/V TA = 25°C DIGITAL OUTPUTS (CT, INT), OPEN DRAIN High Output Leakage Current, IOH 0.1 5 μA CT and INT pins pulled up to 5.5 V Output Low Voltage, VOL 0.4 V IOL = 2 mA at 5.5 V, IOL = 1 mA at 3.3 V Output High Voltage, VOH 0.7 × V VDD Output Capacitance, COUT 2 pF DIGITAL INPUTS (DIN, SCLK, CS) Input Current ±1 μA VIN = 0 V to VDD Input Low Voltage, VIL 0.4 V Input High Voltage, VIH 0.7 × V VDD Pin Capacitance 5 10 pF DIGITAL OUTPUT (DOUT) Output High Voltage, VOH VOH − V ISOURCE = ISINK = 200 μA 0.3 Output Low Voltage, VOL 0.4 V IOL = 200 μA Output Capacitance, COUT 50 pF POWER REQUIREMENTS Supply Voltage 2.7 5.5 V Supply Current At 3.3 V 210 265 μA Peak current while converting, SPI interface inactive At 5.5 V 250 300 μA Peak current while converting, SPI interface inactive 1 SPS Current At 3.3 V 46 μA VDD = 3.3 V, 1 SPS mode, TA = 25°C At 5.5 V 65 μA VDD = 5.5 V, 1 SPS mode, TA = 25°C Rev. 0 | Page 3 of 24 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS SPI TIMING SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION CIRCUIT INFORMATION CONVERTER DETAILS TEMPERATURE MEASUREMENT ONE-SHOT MODE 1 SPS MODE CT and INT Operation in One-Shot Mode SHUTDOWN FAULT QUEUE TEMPERATURE DATA FORMAT TEMPERATURE CONVERSION FORMULAS 16-Bit Temperature Data Format 13-Bit Temperature Data Format 10-Bit Temperature Data Format 9-Bit Temperature Data Format REGISTERS STATUS REGISTER CONFIGURATION REGISTER TEMPERATURE VALUE REGISTER ID REGISTER TCRIT SETPOINT REGISTER THYST SETPOINT REGISTER THIGH SETPOINT REGISTER TLOW SETPOINT REGISTER SERIAL PERIPHERAL INTERFACE SPI COMMAND BYTE WRITING DATA READING DATA INTERFACING TO DSPs OR MICROCONTROLLERS SERIAL INTERFACE RESET INT AND CT OUTPUTS UNDERTEMPERATURE AND OVERTEMPERATURE DETECTION Comparator Mode Interrupt Mode APPLICATIONS INFORMATION THERMAL RESPONSE TIME SUPPLY DECOUPLING POWERING FROM A SWITCHING REGULATOR TEMPERATURE MONITORING QUICK GUIDE TO MEASURING TEMPERATURE OUTLINE DIMENSIONS ORDERING GUIDE AUTOMOTIVE PRODUCTS
