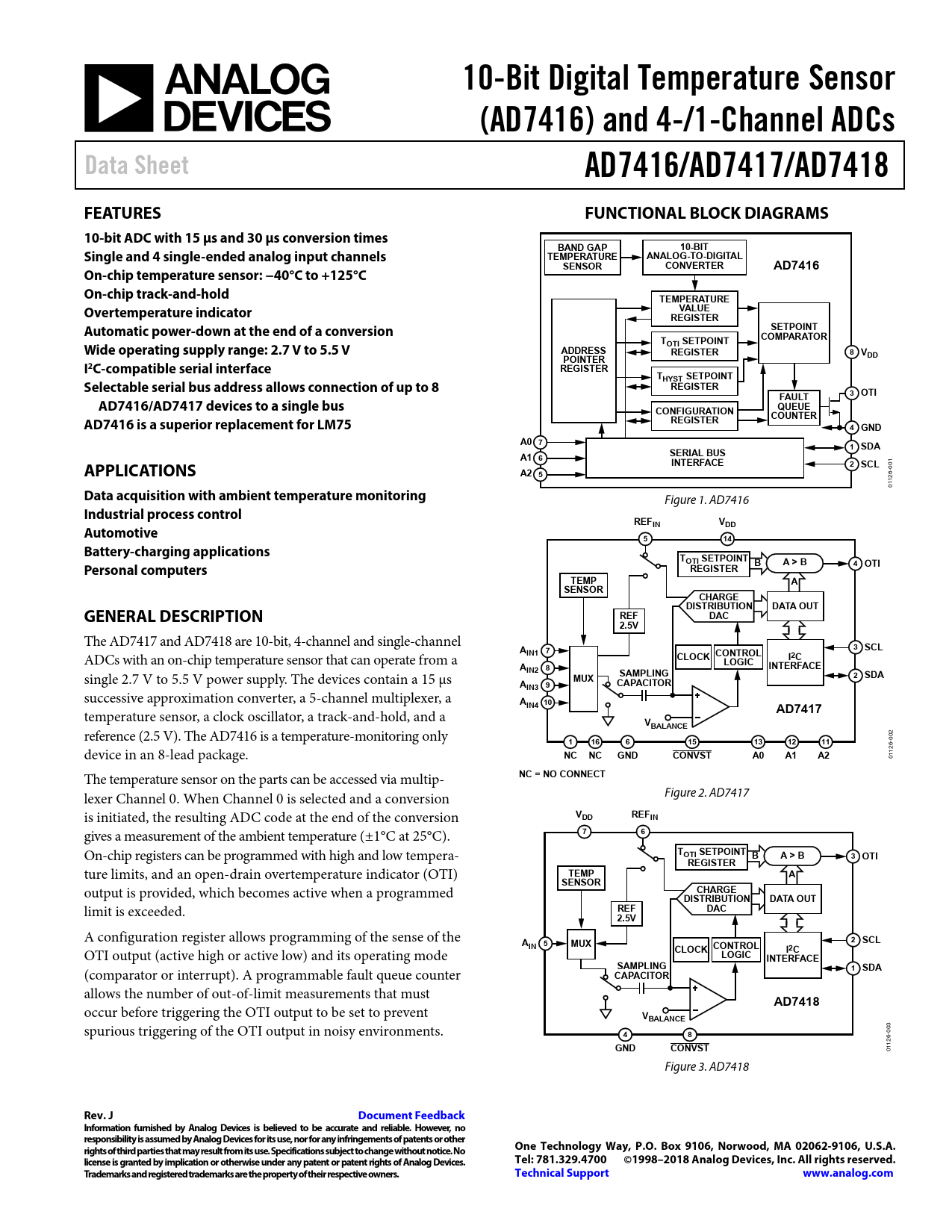

10-Bit Digital Temperature Sensor. (AD7416) and 4-/1-Channel ADCs. Data Sheet. AD7416/AD7417/AD7418. FEATURES

Datasheet AD7416, AD7417, AD7418 Analog Devices, Revisión: J

Línea de modelo para esta hoja de datos

Versión de texto del documento

10-Bit Digital Temperature Sensor (AD7416) and 4-/1-Channel ADCs Data Sheet AD7416/AD7417/AD7418 FEATURES FUNCTIONAL BLOCK DIAGRAMS 10-bit ADC with 15 μs and 30 μs conversion times BAND GAP 10-BIT Single and 4 single-ended analog input channels TEMPERATURE ANALOG-TO-DIGITAL SENSOR CONVERTER AD7416 On-chip temperature sensor: −40°C to +125°C On-chip track-and-hold TEMPERATURE Overtemperature indicator VALUE REGISTER Automatic power-down at the end of a conversion SETPOINT COMPARATOR TOTI SETPOINT Wide operating supply range: 2.7 V to 5.5 V ADDRESS REGISTER 8 V POINTER DD I2C-compatible serial interface REGISTER THYST SETPOINT Selectable serial bus address allows connection of up to 8 REGISTER FAULT 3 OTI AD7416/AD7417 devices to a single bus CONFIGURATION QUEUE COUNTER AD7416 is a superior replacement for LM75 REGISTER 4 GND A0 7 1 SDA SERIAL BUS A1 6 INTERFACE 2
1 0
APPLICATIONS SCL
0
A2 5
6- 12 01
Data acquisition with ambient temperature monitoring
Figure 1. AD7416
Industrial process control REFIN VDD Automotive 5 14 Battery-charging applications TOTI SETPOINT B A > B 4 OTI Personal computers REGISTER TEMP A SENSOR CHARGE DISTRIBUTION DATA OUT GENERAL DESCRIPTION REF DAC 2.5V
The AD7417 and AD7418 are 10-bit, 4-channel and single-channel
3 A SCL IN1 7 CONTROL
ADCs with an on-chip temperature sensor that can operate from a
CLOCK I2C LOGIC A 8 INTERFACE IN2
single 2.7 V to 5.5 V power supply. The devices contain a 15 μs
SAMPLING 2 MUX SDA A 9 CAPACITOR IN3
successive approximation converter, a 5-channel multiplexer, a
A 10 IN4 AD7417
temperature sensor, a clock oscillator, a track-and-hold, and a
VBALANCE
reference (2.5 V). The AD7416 is a temperature-monitoring only 2
1 16 6 15 13 12 11
00 6- device in an 8-lead package.
NC NC GND CONVST A0 A1 A2
12 1 0 The temperature sensor on the parts can be accessed via multip-
NC = NO CONNECT
lexer Channel 0. When Channel 0 is selected and a conversion Figure 2. AD7417 is initiated, the resulting ADC code at the end of the conversion
V REF DD IN
gives a measurement of the ambient temperature (±1°C at 25°C).
7 6
On-chip registers can be programmed with high and low tempera-
TOTI SETPOINT B A > B 3 OTI REGISTER
ture limits, and an open-drain overtemperature indicator (OTI)
TEMP A SENSOR
output is provided, which becomes active when a programmed
CHARGE DISTRIBUTION DATA OUT
limit is exceeded.
REF DAC 2.5V
A configuration register allows programming of the sense of the
2 A SCL IN 5 MUX CONTROL I2C
OTI output (active high or active low) and its operating mode
CLOCK LOGIC INTERFACE SAMPLING 1 SDA
(comparator or interrupt). A programmable fault queue counter
CAPACITOR
allows the number of out-of-limit measurements that must
AD7418
occur before triggering the OTI output to be set to prevent
VBALANCE
3 spurious triggering of the OTI output in noisy environments.
4 8
00 6-
GND CONVST
12 1 0 Figure 3. AD7418
