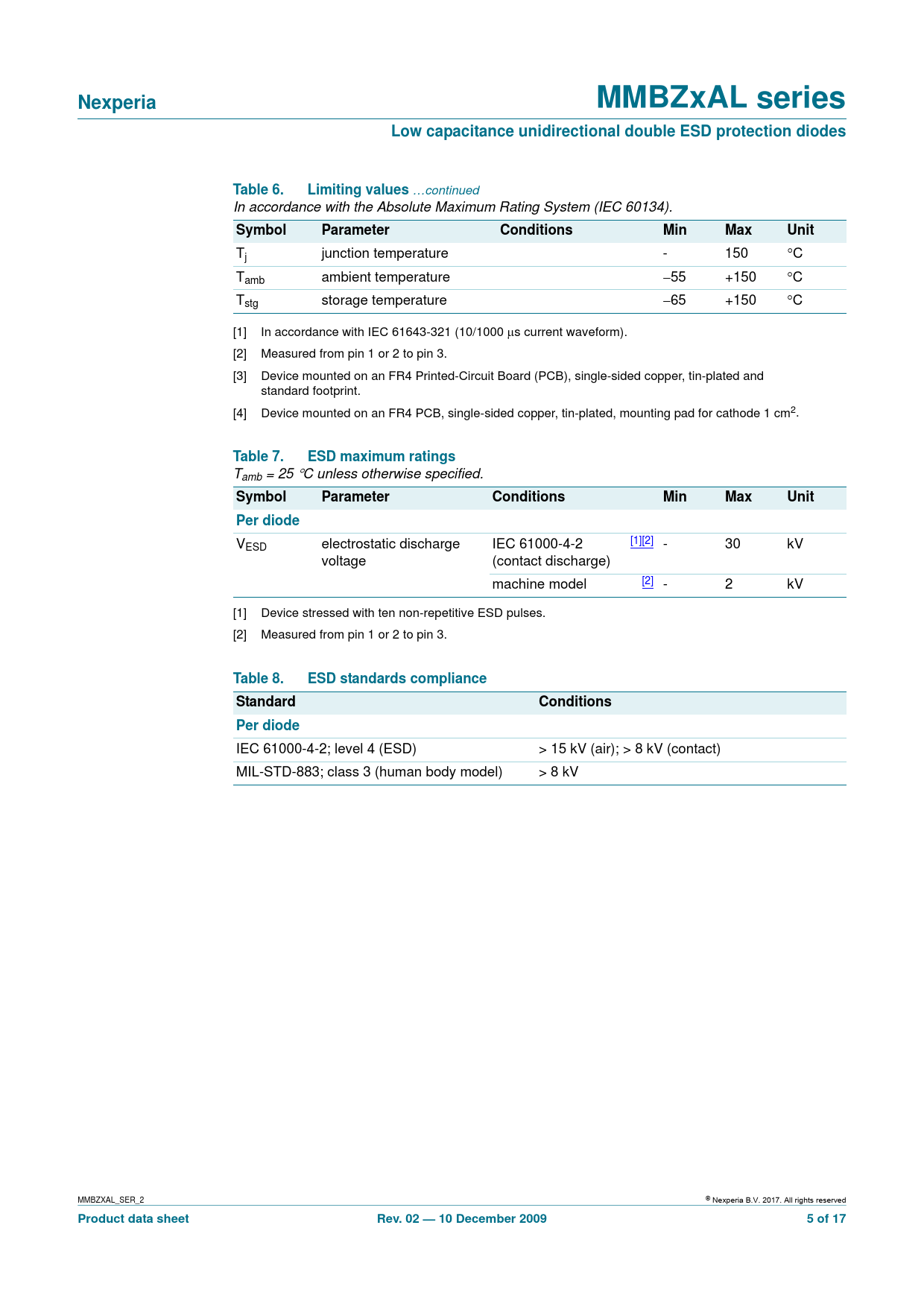

Nexperia. MMBZxAL series. Low capacitance unidirectional double ESD protection diodes. Table 6. Limiting values. Symbol. Parameter

Nexperia MMBZxAL series Low capacitance unidirectional double ESD protection diodes Table 6 Limiting values Symbol Parameter

Línea de modelo para esta hoja de datos

Versión de texto del documento

link to page 5 link to page 5 link to page 5
Nexperia MMBZxAL series Low capacitance unidirectional double ESD protection diodes Table 6. Limiting values
…continued In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter Conditions Min Max Unit
Tj junction temperature - 150 °C Tamb ambient temperature −55 +150 °C Tstg storage temperature −65 +150 °C [1] In accordance with IEC 61643-321 (10/1000 μs current waveform). [2] Measured from pin 1 or 2 to pin 3. [3] Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated and standard footprint. [4] Device mounted on an FR4 PCB, single-sided copper, tin-plated, mounting pad for cathode 1 cm2.
Table 7. ESD maximum ratings
Tamb = 25 °C unless otherwise specified.
Symbol Parameter Conditions Min Max Unit Per diode
V [1][2] ESD electrostatic discharge IEC 61000-4-2 - 30 kV voltage (contact discharge) machine model [2] - 2 kV [1] Device stressed with ten non-repetitive ESD pulses. [2] Measured from pin 1 or 2 to pin 3.
Table 8. ESD standards compliance Standard Conditions Per diode
IEC 61000-4-2; level 4 (ESD) > 15 kV (air); > 8 kV (contact) MIL-STD-883; class 3 (human body model) > 8 kV MMBZXAL_SER_2 © Nexperia B.V. 2017. All rights reserved
