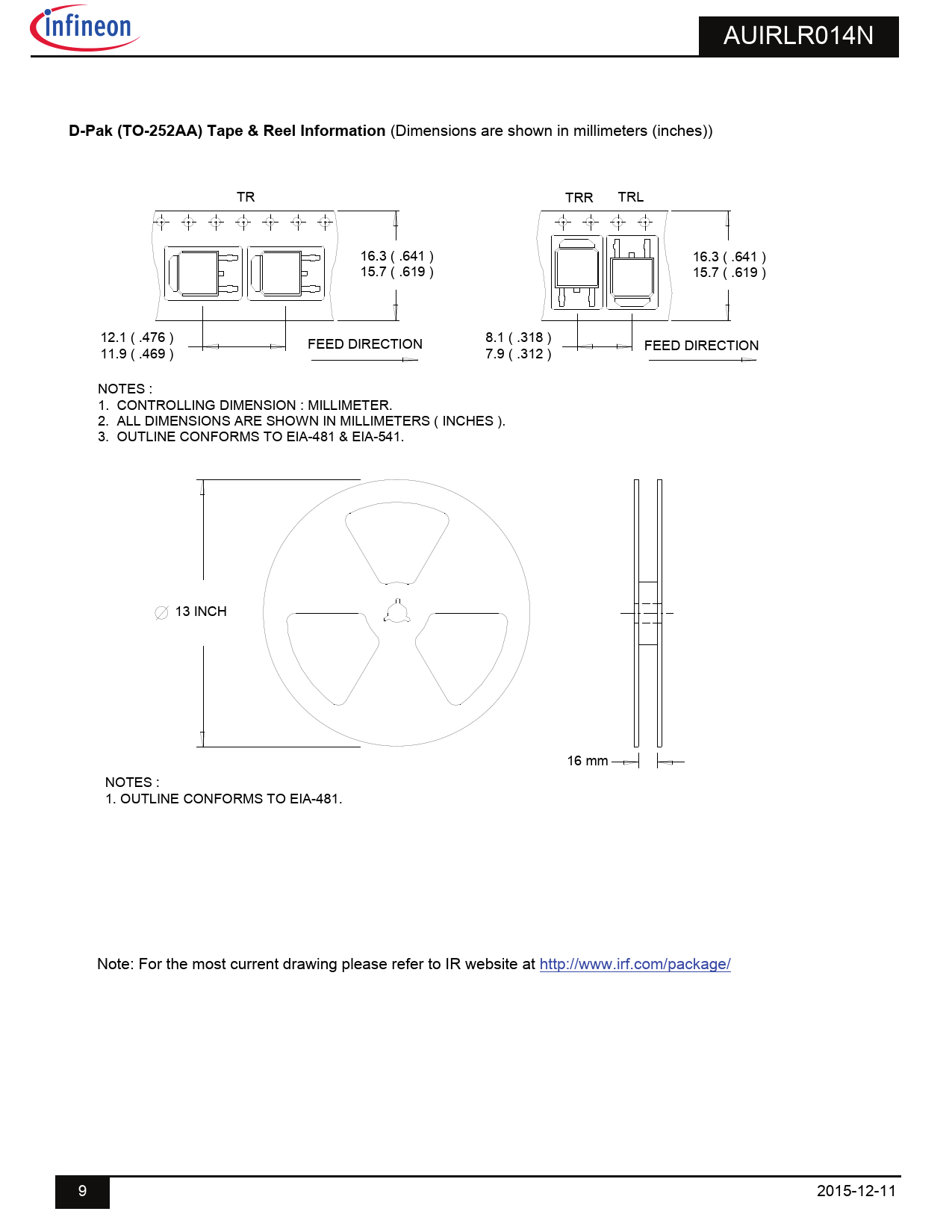

D-Pak (TO-252AA) Tape & Reel Information
Línea de modelo para esta hoja de datos
Versión de texto del documento
AUIRLR014N
D-Pak (TO-252AA) Tape & Reel Information
(Dimensions are shown in millimeters (inches)) TR TRR TRL 16.3 ( .641 ) 16.3 ( .641 ) 15.7 ( .619 ) 15.7 ( .619 ) 12.1 ( .476 ) 8.1 ( .318 ) FEED DIRECTION FEED DIRECTION 11.9 ( .469 ) 7.9 ( .312 ) NOTES : 1. CONTROLLING DIMENSION : MILLIMETER. 2. ALL DIMENSIONS ARE SHOWN IN MILLIMETERS ( INCHES ). 3. OUTLINE CONFORMS TO EIA-481 & EIA-541. 13 INCH 16 mm NOTES : 1. OUTLINE CONFORMS TO EIA-481. Note: For the most current drawing please refer to IR website at http://www.irf.com/package/ 9 2015-12-11
