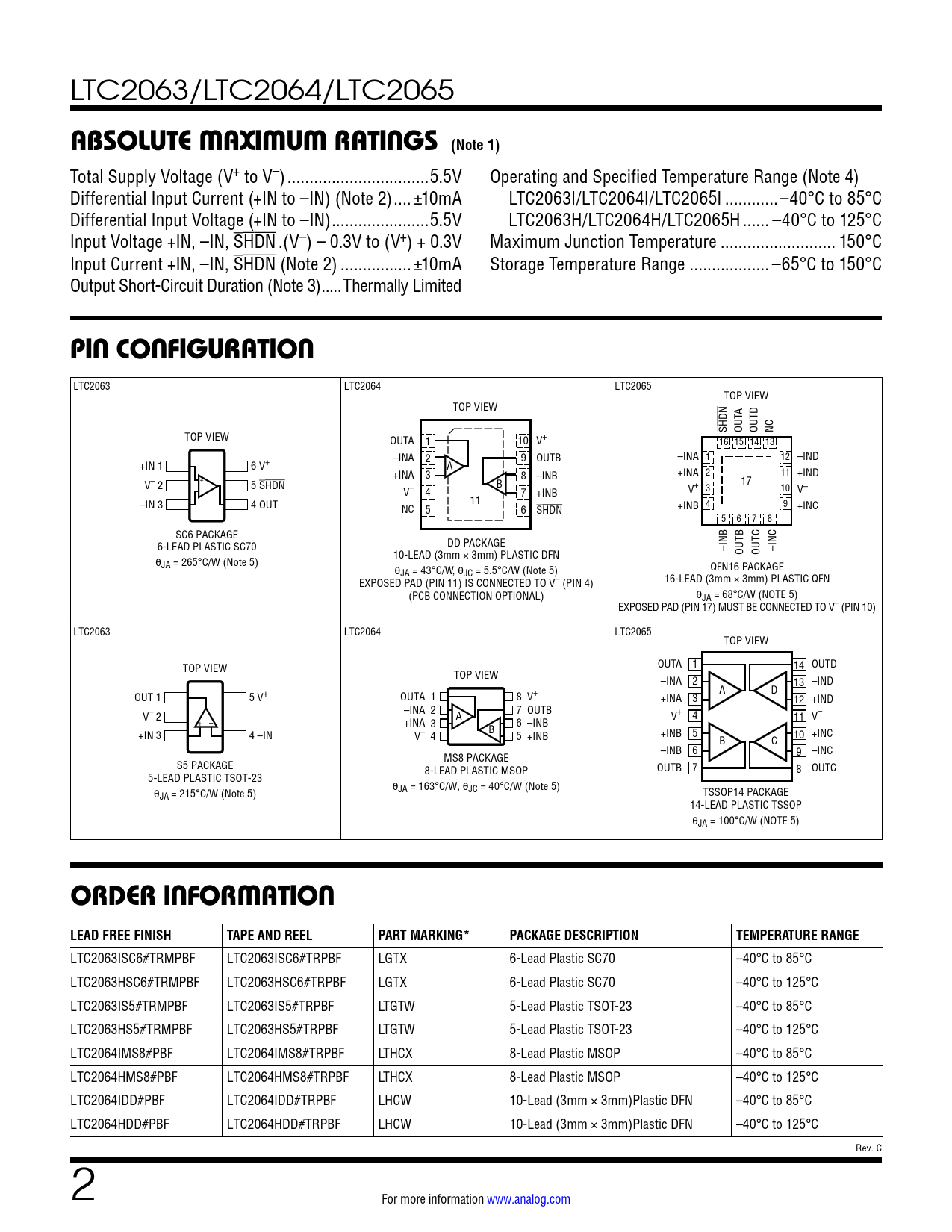

LTC2063/LTC2064/LTC2065
ABSOLUTE MAXIMUM RATINGS (Note 1)
Total Supply Voltage (V+ to V–) ..5.5V Operating and Specified Temperature Range (Note 4) Differential Input Current (+IN to –IN) (Note 2) .. ±10mA LTC2063I/LTC2064I/LTC2065I ..–40°C to 85°C Differential Input Voltage (+IN to –IN) ..5.5V LTC2063H/LTC2064H/LTC2065H .. –40°C to 125°C Input Voltage +IN, –IN, SHDN .(V–) – 0.3V to (V+) + 0.3V Maximum Junction Temperature .. 150°C Input Current +IN, –IN, SHDN (Note 2) .. ±10mA Storage Temperature Range .. –65°C to 150°C Output Short-Circuit Duration (Note 3) ...Thermally Limited
PIN CONFIGURATION
LTC2063 LTC2064 LTC2065 TOP VIEW TOP VIEW A SHDN OUT OUTD NC TOP VIEW OUTA 1 10 V+ 16 15 14 13 –INA 2 9 OUTB –INA 1 12 –IND +IN 1 6 V+ A +INA 3 8 –INB +INA 2 11 +IND V– 2 + 5 SHDN B 17 – V– 4 7 +INB V+ 3 10 V– –IN 3 4 OUT 11 NC 5 6 SHDN 4 9 +INB +INC 5 6 7 8 SC6 PACKAGE 6-LEAD PLASTIC SC70 DD PACKAGE –INB 10-LEAD (3mm × 3mm) PLASTIC DFN OUTB OUTC –INC θJA = 265°C/W (Note 5) θ QFN16 PACKAGE JA = 43°C/W, θJC = 5.5°C/W (Note 5) EXPOSED PAD (PIN 11) IS CONNECTED TO V– (PIN 4) 16-LEAD (3mm × 3mm) PLASTIC QFN (PCB CONNECTION OPTIONAL) θJA = 68°C/W (NOTE 5) EXPOSED PAD (PIN 17) MUST BE CONNECTED TO V– (PIN 10) LTC2063 LTC2064 LTC2065 TOP VIEW TOP VIEW OUTA 1 14 OUTD TOP VIEW –INA 2 13 –IND A D OUT 1 5 V+ OUTA 1 8 V+ +INA 3 12 +IND V– 2 –INA 2 7 OUTB A V+ 4 11 V– + – +INA 3 6 –INB +IN B 3 4 –IN V– 4 5 +INB +INB 5 10 +INC B C –INB 6 –INC MS8 PACKAGE 9 S5 PACKAGE 8-LEAD PLASTIC MSOP OUTB 7 8 OUTC 5-LEAD PLASTIC TSOT-23 θ θ JA = 163°C/W, θJC = 40°C/W (Note 5) JA = 215°C/W (Note 5) TSSOP14 PACKAGE 14-LEAD PLASTIC TSSOP θJA = 100°C/W (NOTE 5)
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC2063ISC6#TRMPBF LTC2063ISC6#TRPBF LGTX 6-Lead Plastic SC70 –40°C to 85°C LTC2063HSC6#TRMPBF LTC2063HSC6#TRPBF LGTX 6-Lead Plastic SC70 –40°C to 125°C LTC2063IS5#TRMPBF LTC2063IS5#TRPBF LTGTW 5-Lead Plastic TSOT-23 –40°C to 85°C LTC2063HS5#TRMPBF LTC2063HS5#TRPBF LTGTW 5-Lead Plastic TSOT-23 –40°C to 125°C LTC2064IMS8#PBF LTC2064IMS8#TRPBF LTHCX 8-Lead Plastic MSOP –40°C to 85°C LTC2064HMS8#PBF LTC2064HMS8#TRPBF LTHCX 8-Lead Plastic MSOP –40°C to 125°C LTC2064IDD#PBF LTC2064IDD#TRPBF LHCW 10-Lead (3mm × 3mm)Plastic DFN –40°C to 85°C LTC2064HDD#PBF LTC2064HDD#TRPBF LHCW 10-Lead (3mm × 3mm)Plastic DFN –40°C to 125°C Rev. C 2 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
