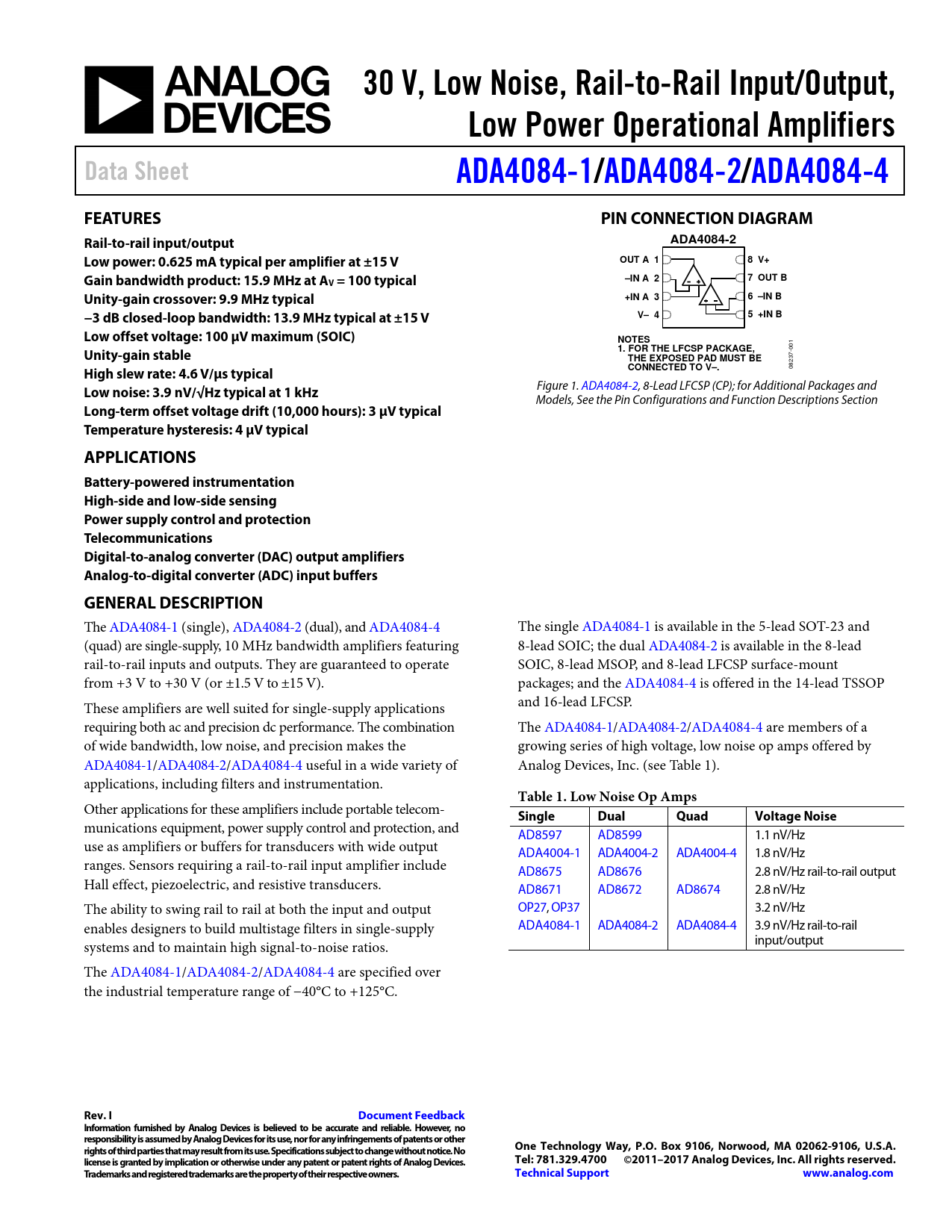

30 V, Low Noise, Rail-to-Rail Input/Output,. Low Power Operational Amplifiers. Data Sheet. ADA4084-1/. ADA4084-2/. ADA4084-4

Datasheet ADA4084-1, ADA4084-2, ADA4084-4 Analog Devices, Revisión: I

Línea de modelo para esta hoja de datos

Versión de texto del documento

link to page 8 link to page 1
30 V, Low Noise, Rail-to-Rail Input/Output, Low Power Operational Amplifiers Data Sheet ADA4084-1/ ADA4084-2/ ADA4084-4 FEATURES PIN CONNECTION DIAGRAM Rail-to-rail input/output ADA4084-2 Low power: 0.625 mA typical per amplifier at ±15 V OUT A 1 8 V+ Gain bandwidth product: 15.9 MHz at AV = 100 typical –IN A 2 7 OUT B Unity-gain crossover: 9.9 MHz typical +IN A 3 6 –IN B −3 dB closed-loop bandwidth: 13.9 MHz typical at ±15 V V– 4 5 +IN B Low offset voltage: 100 µV maximum (SOIC) NOTES Unity-gain stable
001
1. FOR THE LFCSP PACKAGE, THE EXPOSED PAD MUST BE High slew rate: 4.6 V/µs typical
08237-
CONNECTED TO V–. Low noise: 3.9 nV/√Hz typical at 1 kHz
Figure 1. ADA4084-2, 8-Lead LFCSP (CP); for Additional Packages and Models, See the Pin Configurations and Function Descriptions Section
Long-term offset voltage drift (10,000 hours): 3 µV typical Temperature hysteresis: 4 µV typical APPLICATIONS Battery-powered instrumentation High-side and low-side sensing Power supply control and protection Telecommunications Digital-to-analog converter (DAC) output amplifiers Analog-to-digital converter (ADC) input buffers GENERAL DESCRIPTION
The ADA4084-1 (single), ADA4084-2 (dual), and ADA4084-4 The single ADA4084-1 is available in the 5-lead SOT-23 and (quad) are single-supply, 10 MHz bandwidth amplifiers featuring 8-lead SOIC; the dual ADA4084-2 is available in the 8-lead rail-to-rail inputs and outputs. They are guaranteed to operate SOIC, 8-lead MSOP, and 8-lead LFCSP surface-mount from +3 V to +30 V (or ±1.5 V to ±15 V). packages; and the ADA4084-4 is offered in the 14-lead TSSOP These amplifiers are well suited for single-supply applications and 16-lead LFCSP. requiring both ac and precision dc performance. The combination The ADA4084-1/ADA4084-2/ADA4084-4 are members of a of wide bandwidth, low noise, and precision makes the growing series of high voltage, low noise op amps offered by ADA4084-1/ADA4084-2/ADA4084-4 useful in a wide variety of Analog Devices, Inc. (see Table 1). applications, including filters and instrumentation.
Table 1. Low Noise Op Amps
Other applications for these amplifiers include portable telecom-
Single Dual Quad Voltage Noise
munications equipment, power supply control and protection, and AD8597 AD8599 1.1 nV/Hz use as amplifiers or buffers for transducers with wide output ADA4004-1 ADA4004-2 ADA4004-4 1.8 nV/Hz ranges. Sensors requiring a rail-to-rail input amplifier include AD8675 AD8676 2.8 nV/Hz rail-to-rail output Hall effect, piezoelectric, and resistive transducers. AD8671 AD8672 AD8674 2.8 nV/Hz The ability to swing rail to rail at both the input and output OP27, OP37 3.2 nV/Hz enables designers to build multistage filters in single-supply ADA4084-1 ADA4084-2 ADA4084-4 3.9 nV/Hz rail-to-rail systems and to maintain high signal-to-noise ratios. input/output The ADA4084-1/ADA4084-2/ADA4084-4 are specified over the industrial temperature range of −40°C to +125°C.
Rev. I Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2011–2017 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
