AD822. Data Sheet. 3.20 3.00 2.80. 5.15. 3.20. 4.90. 3.00. 4.65. 2.80. PIN 1. IDENTIFIER. 0.65 BSC. 0.95. 15° MAX. 0.85. 1.10 MAX. 0.75. 0.80. 0.15. 0.23. 0.55
Línea de modelo para esta hoja de datos
Versión de texto del documento
AD822 Data Sheet 3.20 3.00 2.80 8 5 5.15 3.20 4.90 3.00 4.65 1 2.80 4 PIN 1 IDENTIFIER 0.65 BSC 0.95 15° MAX 0.85 1.10 MAX 0.75 0.80 0.15 6° 0.23 0.55 0.40 0.05 0° 0.09 0.40 0.25 COPLANARITY 0.10 B 0709- COMPLIANT TO JEDEC STANDARDS MO-187-AA 10

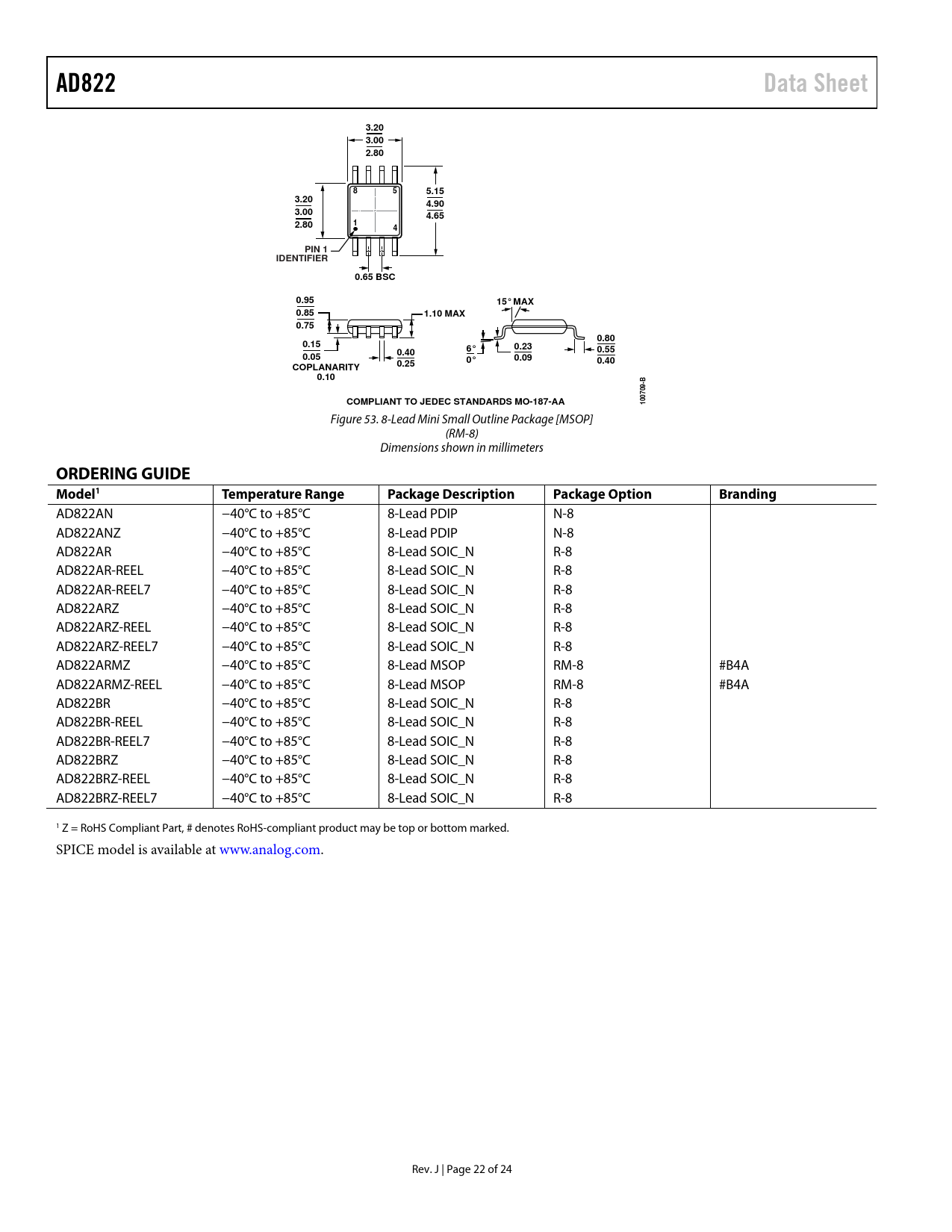

Figure 53. 8-Lead Mini Small Outline Package [MSOP] (RM-8) Dimensions shown in millimeters
ORDERING GUIDE Model1 Temperature Range Package Description Package Option Branding
AD822AN −40°C to +85°C 8-Lead PDIP N-8 AD822ANZ −40°C to +85°C 8-Lead PDIP N-8 AD822AR −40°C to +85°C 8-Lead SOIC_N R-8 AD822AR-REEL −40°C to +85°C 8-Lead SOIC_N R-8 AD822AR-REEL7 −40°C to +85°C 8-Lead SOIC_N R-8 AD822ARZ −40°C to +85°C 8-Lead SOIC_N R-8 AD822ARZ-REEL −40°C to +85°C 8-Lead SOIC_N R-8 AD822ARZ-REEL7 −40°C to +85°C 8-Lead SOIC_N R-8 AD822ARMZ −40°C to +85°C 8-Lead MSOP RM-8 #B4A AD822ARMZ-REEL −40°C to +85°C 8-Lead MSOP RM-8 #B4A AD822BR −40°C to +85°C 8-Lead SOIC_N R-8 AD822BR-REEL −40°C to +85°C 8-Lead SOIC_N R-8 AD822BR-REEL7 −40°C to +85°C 8-Lead SOIC_N R-8 AD822BRZ −40°C to +85°C 8-Lead SOIC_N R-8 AD822BRZ-REEL −40°C to +85°C 8-Lead SOIC_N R-8 AD822BRZ-REEL7 −40°C to +85°C 8-Lead SOIC_N R-8 1 Z = RoHS Compliant Part, # denotes RoHS-compliant product may be top or bottom marked. SPICE model is available at www.analog.com. Rev. J | Page 22 of 24 Document Outline FEATURES APPLICATIONS CONNECTION DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE MAXIMUM POWER DISSIPATION ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS INFORMATION INPUT CHARACTERISTICS OUTPUT CHARACTERISTICS SINGLE-SUPPLY VOLTAGE TO FREQUENCY CONVERTER LOW DROPOUT BIPOLAR BRIDGE DRIVER OUTLINE DIMENSIONS ORDERING GUIDE
