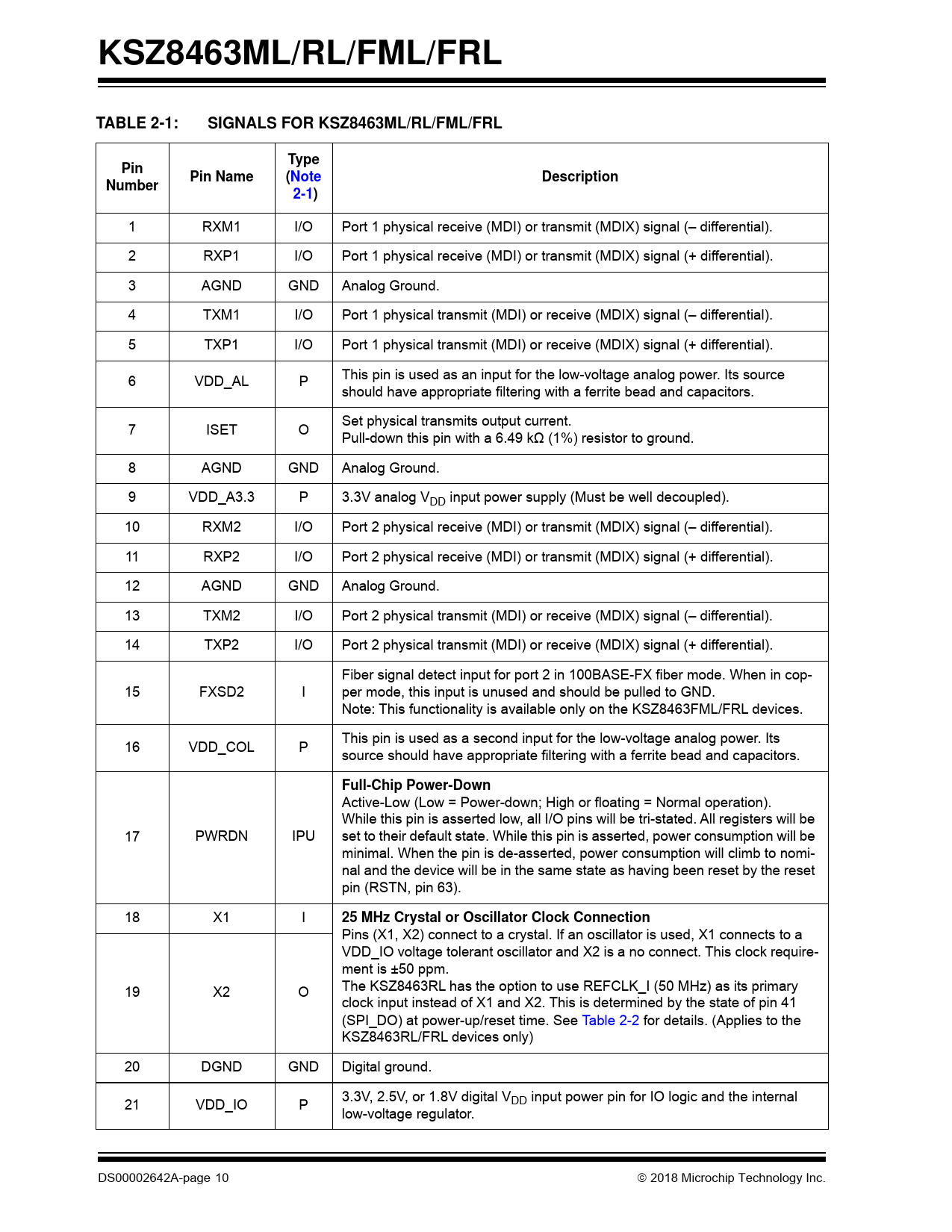

KSZ8463ML/RL/FML/FRL TABLE 2-1: SIGNALS FOR KSZ8463ML/RL/FML/FRL Type Pin Pin Name (Note Description Number 2-1 )
1 RXM1 I/O Port 1 physical receive (MDI) or transmit (MDIX) signal (– differential). 2 RXP1 I/O Port 1 physical receive (MDI) or transmit (MDIX) signal (+ differential). 3 AGND GND Analog Ground. 4 TXM1 I/O Port 1 physical transmit (MDI) or receive (MDIX) signal (– differential). 5 TXP1 I/O Port 1 physical transmit (MDI) or receive (MDIX) signal (+ differential). 6 VDD_AL P This pin is used as an input for the low-voltage analog power. Its source should have appropriate filtering with a ferrite bead and capacitors. Set physical transmits output current. 7 ISET O Pull-down this pin with a 6.49 kΩ (1%) resistor to ground. 8 AGND GND Analog Ground. 9 VDD_A3.3 P 3.3V analog VDD input power supply (Must be well decoupled). 10 RXM2 I/O Port 2 physical receive (MDI) or transmit (MDIX) signal (– differential). 11 RXP2 I/O Port 2 physical receive (MDI) or transmit (MDIX) signal (+ differential). 12 AGND GND Analog Ground. 13 TXM2 I/O Port 2 physical transmit (MDI) or receive (MDIX) signal (– differential). 14 TXP2 I/O Port 2 physical transmit (MDI) or receive (MDIX) signal (+ differential). Fiber signal detect input for port 2 in 100BASE-FX fiber mode. When in cop- 15 FXSD2 I per mode, this input is unused and should be pulled to GND. Note: This functionality is available only on the KSZ8463FML/FRL devices. This pin is used as a second input for the low-voltage analog power. Its 16 VDD_COL P source should have appropriate filtering with a ferrite bead and capacitors.
Full-Chip Power-Down
Active-Low (Low = Power-down; High or floating = Normal operation). While this pin is asserted low, all I/O pins will be tri-stated. All registers will be 17 PWRDN IPU set to their default state. While this pin is asserted, power consumption will be minimal. When the pin is de-asserted, power consumption will climb to nomi- nal and the device will be in the same state as having been reset by the reset pin (RSTN, pin 63). 18 X1 I
25 MHz Crystal or Oscillator Clock Connection
Pins (X1, X2) connect to a crystal. If an oscillator is used, X1 connects to a VDD_IO voltage tolerant oscillator and X2 is a no connect. This clock require- ment is ±50 ppm. The KSZ8463RL has the option to use REFCLK_I (50 MHz) as its primary 19 X2 O clock input instead of X1 and X2. This is determined by the state of pin 41 (SPI_DO) at power-up/reset time. See Table 2-2 for details. (Applies to the KSZ8463RL/FRL devices only) 20 DGND GND Digital ground. 3.3V, 2.5V, or 1.8V digital V 21 VDD_IO P DD input power pin for IO logic and the internal low-voltage regulator. DS00002642A-page 10
