Data Sheet. ADuM6020/. ADuM6028. ELECTRICAL CHARACTERISTICS—3.3 V PRIMARY INPUT SUPPLY/3.3 V SECONDARY ISOLATED SUPPLY

Data Sheet ADuM6020/ ADuM6028 ELECTRICAL CHARACTERISTICS—3.3 V PRIMARY INPUT SUPPLY/3.3 V SECONDARY ISOLATED SUPPLY

Línea de modelo para esta hoja de datos

Versión de texto del documento

Data Sheet ADuM6020/ ADuM6028 ELECTRICAL CHARACTERISTICS—3.3 V PRIMARY INPUT SUPPLY/3.3 V SECONDARY ISOLATED SUPPLY
All typical specifications are at TA = 25°C, VDDP = 3.3 V, VISO = 3.3 V. Minimum and maximum specifications apply over the entire recommended operation range, which is 3.0 V ≤ VDDP ≤ 3.6 V, 3.0 V ≤ VISO ≤ 3.6 V, and −40°C ≤ TA ≤ +125°C, unless otherwise noted.

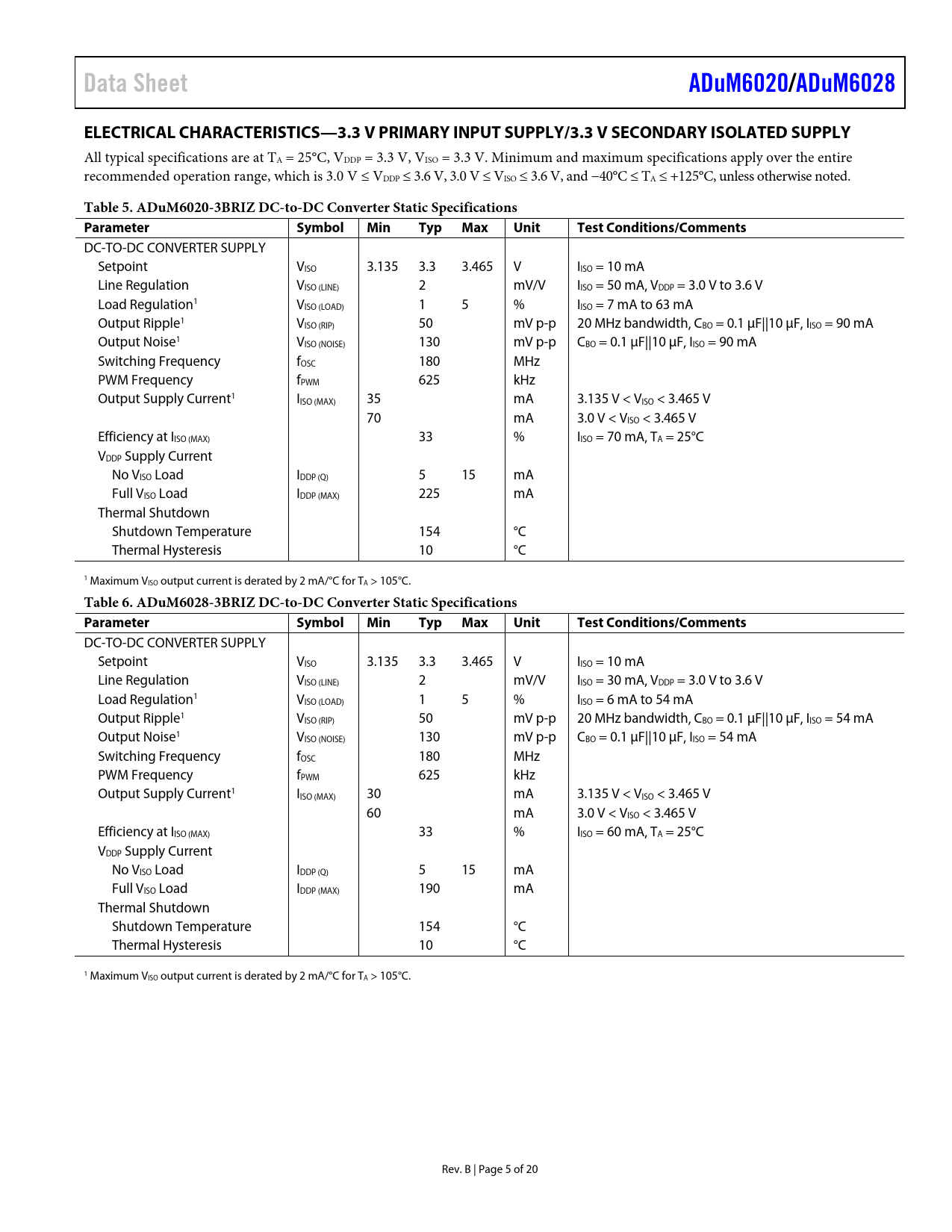

Table 5. ADuM6020-3BRIZ DC-to-DC Converter Static Specifications Parameter Symbol Min Typ Max Unit Test Conditions/Comments
DC-TO-DC CONVERTER SUPPLY Setpoint VISO 3.135 3.3 3.465 V IISO = 10 mA Line Regulation VISO (LINE) 2 mV/V IISO = 50 mA, VDDP = 3.0 V to 3.6 V Load Regulation1 VISO (LOAD) 1 5 % IISO = 7 mA to 63 mA Output Ripple1 VISO (RIP) 50 mV p-p 20 MHz bandwidth, CBO = 0.1 μF||10 μF, IISO = 90 mA Output Noise1 VISO (NOISE) 130 mV p-p CBO = 0.1 μF||10 μF, IISO = 90 mA Switching Frequency fOSC 180 MHz PWM Frequency fPWM 625 kHz Output Supply Current1 IISO (MAX) 35 mA 3.135 V < VISO < 3.465 V 70 mA 3.0 V < VISO < 3.465 V Efficiency at IISO (MAX) 33 % IISO = 70 mA, TA = 25°C VDDP Supply Current No VISO Load IDDP (Q) 5 15 mA Full VISO Load IDDP (MAX) 225 mA Thermal Shutdown Shutdown Temperature 154 °C Thermal Hysteresis 10 °C 1 Maximum VISO output current is derated by 2 mA/°C for TA > 105°C.
