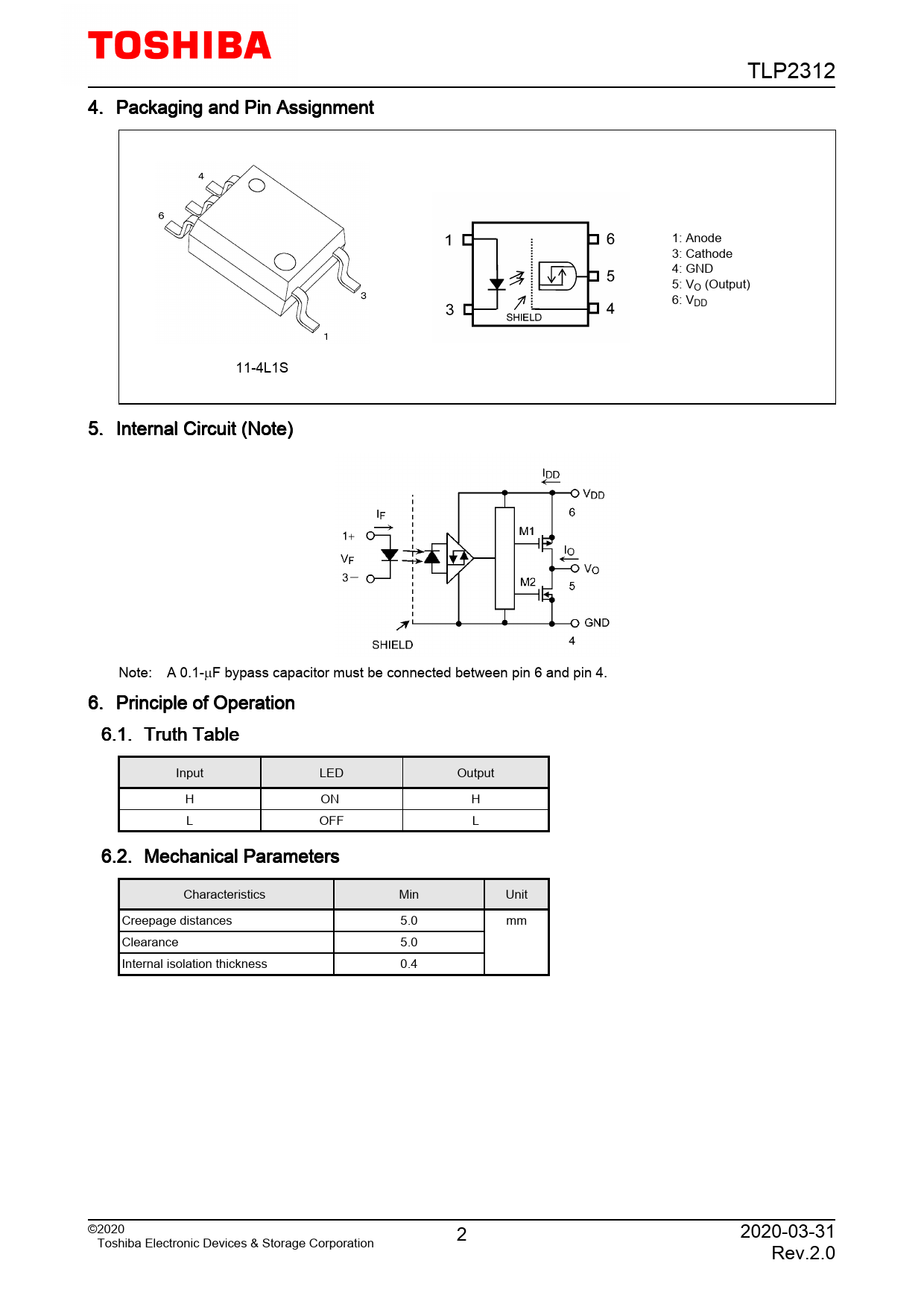

TLP2312. 4. Packaging. and. Pin. Assignment. 1:. Anode. 3:. Cathode. 4:. GND. 5:. VO. (Output). 6:. VDD. 11-4L1S. 5. Internal. Circuit. (Note). Note:. A. 0.1-µF. bypass

TLP2312 4 Packaging and Pin Assignment 1: Anode 3: Cathode 4: GND 5: VO (Output) 6: VDD 11-4L1S 5 Internal Circuit (Note) Note: A 0.1-µF bypass

Línea de modelo para esta hoja de datos

Versión de texto del documento

TLP2312 4. Packaging and Pin Assignment 1: Anode 3: Cathode 4: GND 5: VO (Output) 6: VDD 11-4L1S 5. Internal Circuit (Note) Note: A 0.1-µF bypass capacitor must be connected between pin 6 and pin 4. 6. Principle of Operation 6.1. Truth Table Input LED Output H ON H L OFF L 6.2. Mechanical Parameters Characteristics Min Unit Creepage distances 5.0 mm Clearance 5.0 Internal isolation thickness 0.4 ©2020 2 2020-03-31 Toshiba Electronic Devices & Storage Corporation Rev.2.0
