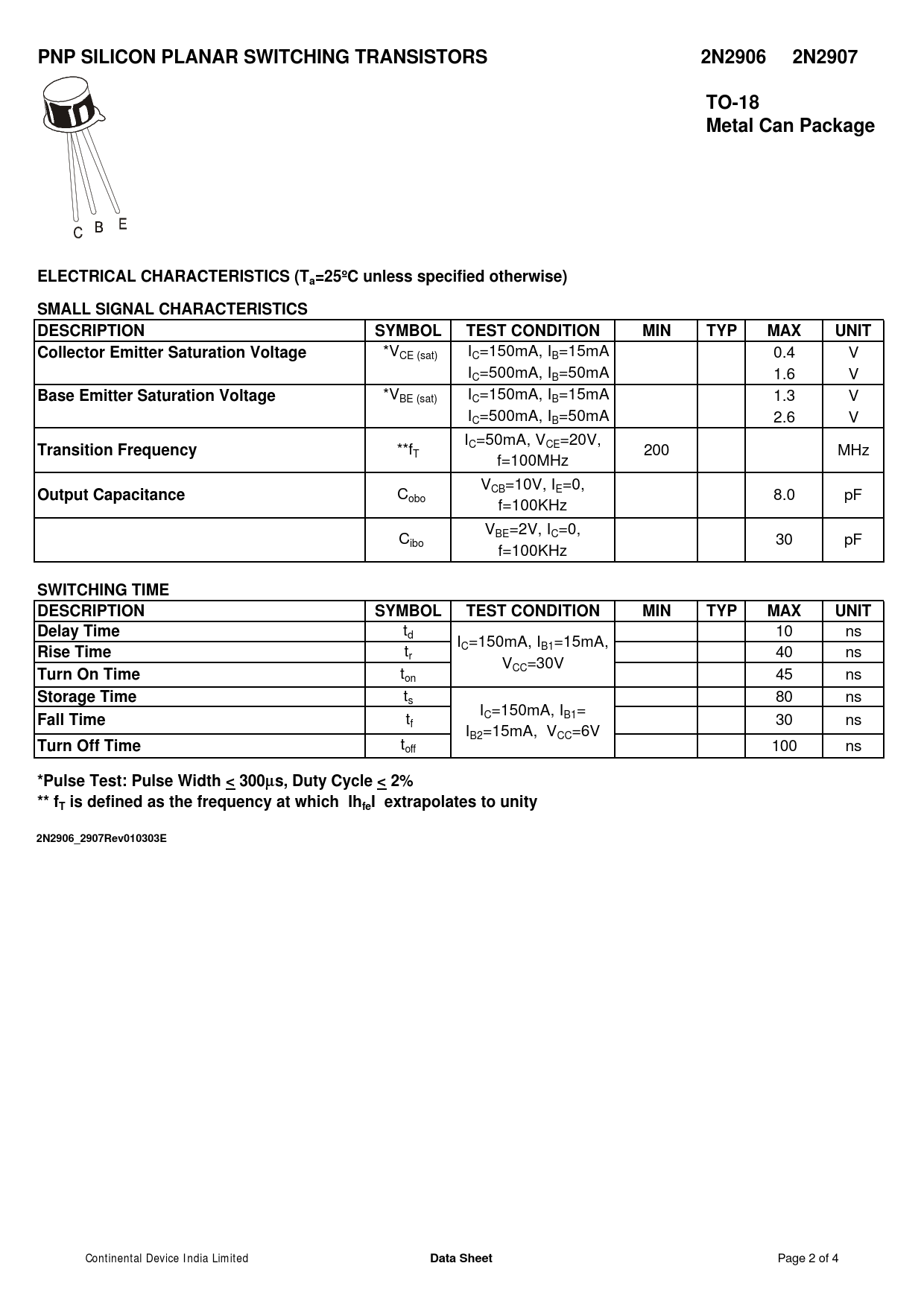

PNP SILICON PLANAR SWITCHING TRANSISTORS. 2N2906 2N2907. TO-18 Metal Can Package

PNP SILICON PLANAR SWITCHING TRANSISTORS 2N2906 2N2907 TO-18 Metal Can Package

Línea de modelo para esta hoja de datos

Versión de texto del documento

PNP SILICON PLANAR SWITCHING TRANSISTORS 2N2906 2N2907 TO-18 Metal Can Package ELECTRICAL CHARACTERISTICS (Ta=25ºC unless specified otherwise) SMALL SIGNAL CHARACTERISTICS DESCRIPTION SYMBOL TEST CONDITION MIN TYP MAX UNIT Collector Emitter Saturation Voltage
*VCE (sat) IC=150mA, IB=15mA 0.4 V IC=500mA, IB=50mA 1.6 V
Base Emitter Saturation Voltage
*VBE (sat) IC=150mA, IB=15mA 1.3 V IC=500mA, IB=50mA 2.6 V I
Transition Frequency
**f C=50mA, VCE=20V, T 200 MHz f=100MHz V
Output Capacitance
C CB=10V, IE=0, obo 8.0 pF f=100KHz V C BE=2V, IC=0, ibo 30 pF f=100KHz
SWITCHING TIME DESCRIPTION SYMBOL TEST CONDITION MIN TYP MAX UNIT Delay Time
td 10 ns I
Rise Time
t C=150mA, IB1=15mA, r 40 ns V
Turn On Time
t CC=30V on 45 ns
Storage Time
ts 80 ns I
Fall Time
t C=150mA, IB1= f 30 ns IB2=15mA, VCC=6V
Turn Off Time
toff 100 ns
*Pulse Test: Pulse Width < 300µs, Duty Cycle < 2% ** fT is defined as the frequency at which IhfeI extrapolates to unity 2N2906_2907Rev010303E
Continental Device India Limited
Data Sheet
Page 2 of 4
