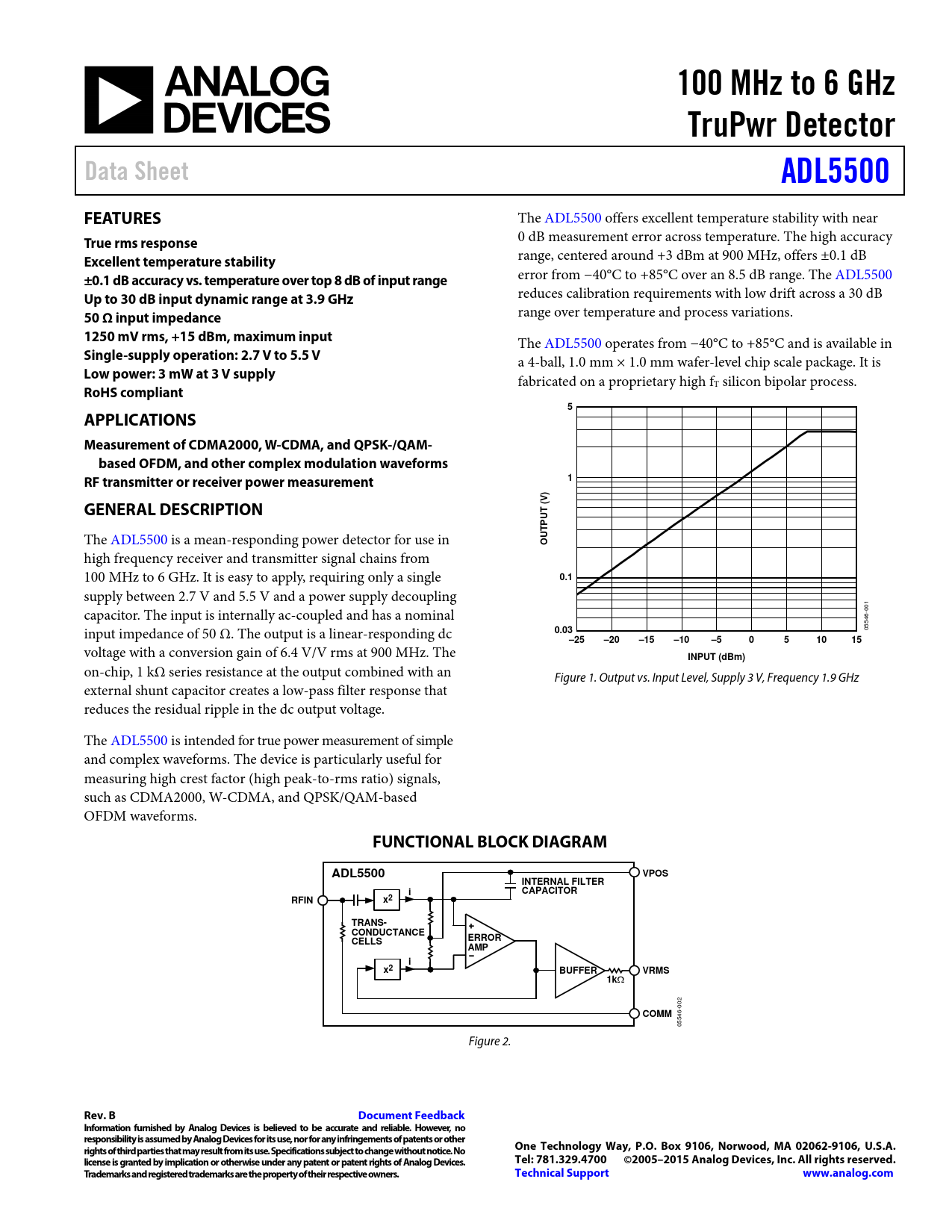

100 MHz to 6 GHz TruPwr Detector Data Sheet ADL5500 FEATURES
The ADL5500 offers excellent temperature stability with near
True rms response
0 dB measurement error across temperature. The high accuracy
Excellent temperature stability
range, centered around +3 dBm at 900 MHz, offers ±0.1 dB
±0.1 dB accuracy vs. temperature over top 8 dB of input range
error from −40°C to +85°C over an 8.5 dB range. The ADL5500
Up to 30 dB input dynamic range at 3.9 GHz
reduces calibration requirements with low drift across a 30 dB
50 Ω input impedance
range over temperature and process variations.
1250 mV rms, +15 dBm, maximum input
The ADL5500 operates from −40°C to +85°C and is available in
Single-supply operation: 2.7 V to 5.5 V
a 4-ball, 1.0 mm × 1.0 mm wafer-level chip scale package. It is
Low power: 3 mW at 3 V supply
fabricated on a proprietary high fT silicon bipolar process.
RoHS compliant 5 APPLICATIONS Measurement of CDMA2000, W-CDMA, and QPSK-/QAM- based OFDM, and other complex modulation waveforms RF transmitter or receiver power measurement 1 GENERAL DESCRIPTION
The ADL5500 is a mean-responding power detector for use in
OUTPUT (V)
high frequency receiver and transmitter signal chains from 100 MHz to 6 GHz. It is easy to apply, requiring only a single
0.1
supply between 2.7 V and 5.5 V and a power supply decoupling capacitor. The input is internally ac-coupled and has a nominal input impedance of 50 Ω. The output is a linear-responding dc
0.03
05546-001
–25 –20 –15 –10 –5 0 5 10 15
voltage with a conversion gain of 6.4 V/V rms at 900 MHz. The
INPUT (dBm)
on-chip, 1 kΩ series resistance at the output combined with an Figure 1. Output vs. Input Level, Supply 3 V, Frequency 1.9 GHz external shunt capacitor creates a low-pass filter response that reduces the residual ripple in the dc output voltage. The ADL5500 is intended for true power measurement of simple and complex waveforms. The device is particularly useful for measuring high crest factor (high peak-to-rms ratio) signals, such as CDMA2000, W-CDMA, and QPSK/QAM-based OFDM waveforms.
FUNCTIONAL BLOCK DIAGRAM ADL5500 VPOS INTERNAL FILTER i CAPACITOR RFIN x2 TRANS- CONDUCTANCE ERROR CELLS AMP i x2 BUFFER VRMS 1k
Ω
COMM
05546-002 Figure 2.
Rev. B Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2005–2015 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS CIRCUIT DESCRIPTION FILTERING APPLICATIONS INFORMATION BASIC CONNECTIONS OUTPUT SWING LINEARITY INPUT COUPLING USING A SERIES RESISTOR MULTIPLE RF INPUTS SELECTING THE OUTPUT LOW-PASS FILTER NETWORK POWER CONSUMPTION AND POWER-ON/-OFF RESPONSE OUTPUT DRIVE CAPABILITY AND BUFFERING VRMS OUTPUT OFFSET DEVICE CALIBRATION AND ERROR CALCULATION CALIBRATION FOR IMPROVED ACCURACY DRIFT OVER A REDUCED TEMPERATURE RANGE OPERATION ABOVE 4.0 GHz DEVICE HANDLING EVALUATION BOARD Land Pattern and Soldering Information Junction-to-Board Thermal Impedance OUTLINE DIMENSIONS ORDERING GUIDE
