Datasheet AD9361 (Analog Devices) - 9

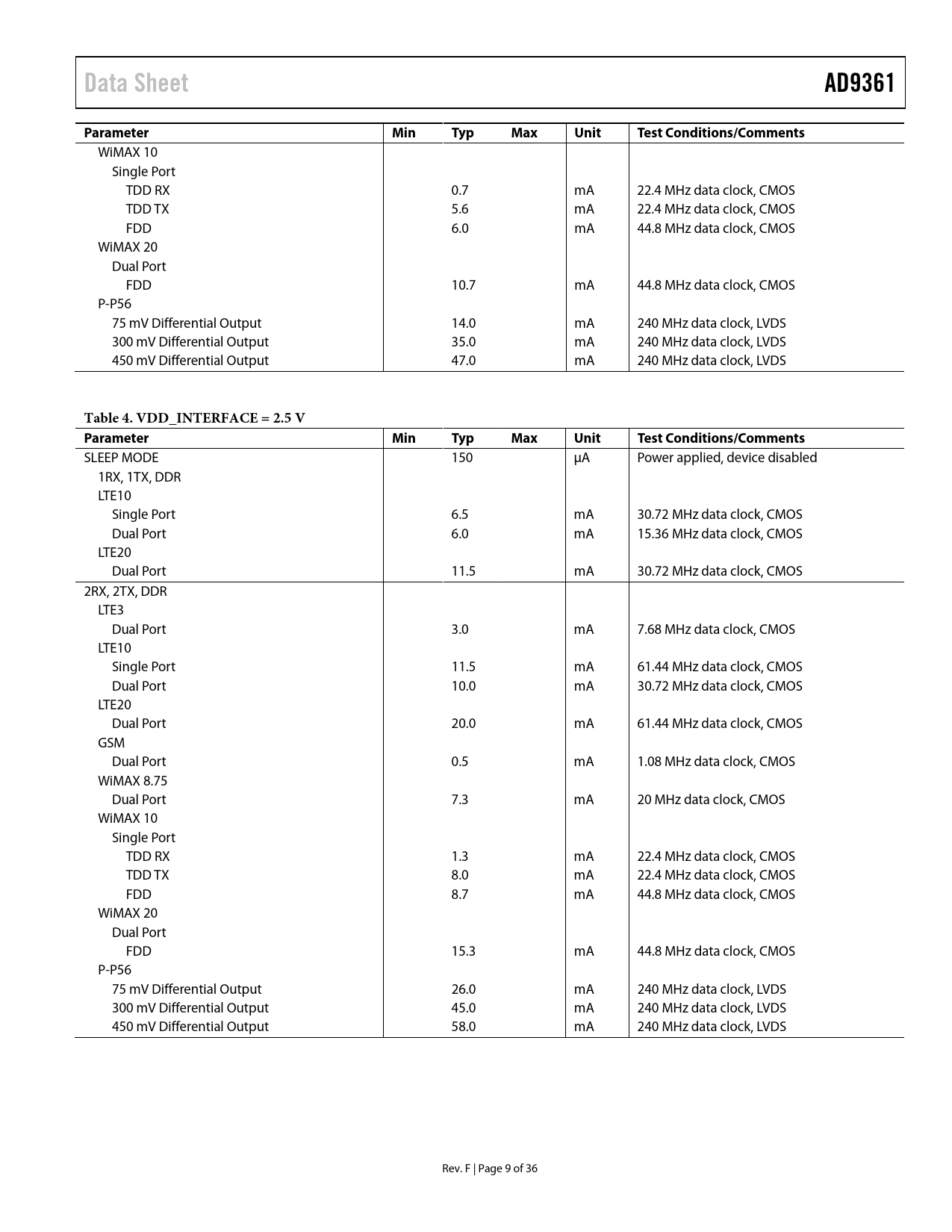

Data Sheet AD9361 Parameter Min Typ Max Unit Test Conditions/Comments
WiMAX 10 Single Port TDD RX 0.7 mA 22.4 MHz data clock, CMOS TDD TX 5.6 mA 22.4 MHz data clock, CMOS FDD 6.0 mA 44.8 MHz data clock, CMOS WiMAX 20 Dual Port FDD 10.7 mA 44.8 MHz data clock, CMOS P-P56 75 mV Differential Output 14.0 mA 240 MHz data clock, LVDS 300 mV Differential Output 35.0 mA 240 MHz data clock, LVDS 450 mV Differential Output 47.0 mA 240 MHz data clock, LVDS
Table 4. VDD_INTERFACE = 2.5 V Parameter Min Typ Max Unit Test Conditions/Comments
SLEEP MODE 150 µA Power applied, device disabled 1RX, 1TX, DDR LTE10 Single Port 6.5 mA 30.72 MHz data clock, CMOS Dual Port 6.0 mA 15.36 MHz data clock, CMOS LTE20 Dual Port 11.5 mA 30.72 MHz data clock, CMOS 2RX, 2TX, DDR LTE3 Dual Port 3.0 mA 7.68 MHz data clock, CMOS LTE10 Single Port 11.5 mA 61.44 MHz data clock, CMOS Dual Port 10.0 mA 30.72 MHz data clock, CMOS LTE20 Dual Port 20.0 mA 61.44 MHz data clock, CMOS GSM Dual Port 0.5 mA 1.08 MHz data clock, CMOS WiMAX 8.75 Dual Port 7.3 mA 20 MHz data clock, CMOS WiMAX 10 Single Port TDD RX 1.3 mA 22.4 MHz data clock, CMOS TDD TX 8.0 mA 22.4 MHz data clock, CMOS FDD 8.7 mA 44.8 MHz data clock, CMOS WiMAX 20 Dual Port FDD 15.3 mA 44.8 MHz data clock, CMOS P-P56 75 mV Differential Output 26.0 mA 240 MHz data clock, LVDS 300 mV Differential Output 45.0 mA 240 MHz data clock, LVDS 450 mV Differential Output 58.0 mA 240 MHz data clock, LVDS Rev. F | Page 9 of 36 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS CURRENT CONSUMPTION—VDD_INTERFACE CURRENT CONSUMPTION—VDDD1P3_DIG AND VDDAx (COMBINATION OF ALL 1.3 V SUPPLIES) ABSOLUTE MAXIMUM RATINGS REFLOW PROFILE THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS 800 MHz FREQUENCY BAND 2.4 GHz FREQUENCY BAND 5.5 GHz FREQUENCY BAND THEORY OF OPERATION GENERAL RECEIVER TRANSMITTER CLOCK INPUT OPTIONS SYNTHESIZERS RF PLLs BB PLL DIGITAL DATA INTERFACE DATA_CLK Signal FB_CLK Signal RX_FRAME Signal ENABLE STATE MACHINE SPI Control Mode Pin Control Mode SPI INTERFACE CONTROL PINS Control Outputs (CTRL_OUT[7:0]) Control Inputs (CTRL_IN[3:0]) GPO PINS (GPO_3 TO GPO_0) AUXILIARY CONVERTERS AUXADC AUXDAC1 and AUXDAC2 POWERING THE AD9361 PACKAGING AND ORDERING INFORMATION OUTLINE DIMENSIONS ORDERING GUIDE
