DescripciónSingle-Chip, Multiband 3G Femtocell Transceiver
Páginas / Página36 / 1 — Single-Chip, Multiband 3G Femtocell. Transceiver. ADF4602. FEATURES. …
RevisiónA
Formato / tamaño de archivoPDF / 662 Kb
Idioma del documentoInglés

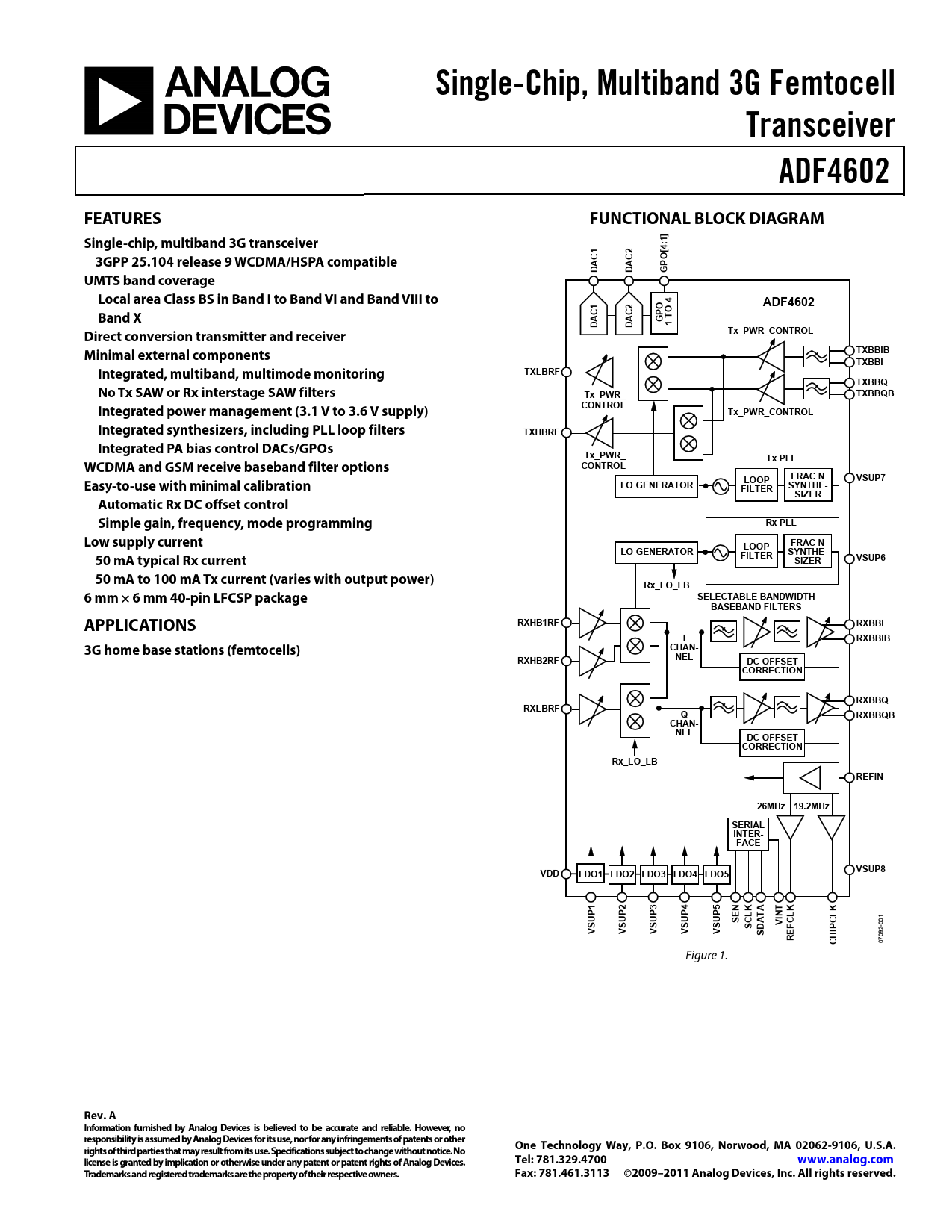

Single-Chip, Multiband 3G Femtocell. Transceiver. ADF4602. FEATURES. FUNCTIONAL BLOCK DIAGRAM

Datasheet ADF4602 Analog Devices, Revisión: A

Línea de modelo para esta hoja de datos

Versión de texto del documento

Single-Chip, Multiband 3G Femtocell Transceiver ADF4602 FEATURES FUNCTIONAL BLOCK DIAGRAM ] Single-chip, multiband 3G transceiver 4:1 C1 C2 3GPP 25.104 release 9 WCDMA/HSPA compatible DA DA GPO[ UMTS band coverage Local area Class BS in Band I to Band VI and Band VIII to 1 2 4 ADF4602 O Band X GPO DAC DAC 1 T Tx_PWR_CONTROL Direct conversion transmitter and receiver TXBBIB Minimal external components TXBBI Integrated, multiband, multimode monitoring TXLBRF TXBBQ No Tx SAW or Rx interstage SAW filters Tx_PWR_ TXBBQB CONTROL Integrated power management (3.1 V to 3.6 V supply) Tx_PWR_CONTROL Integrated synthesizers, including PLL loop filters TXHBRF Integrated PA bias control DACs/GPOs Tx_PWR_ Tx PLL WCDMA and GSM receive baseband filter options CONTROL FRAC N VSUP7 LOOP Easy-to-use with minimal calibration LO GENERATOR FILTER SYNTHE- SIZER Automatic Rx DC offset control Simple gain, frequency, mode programming Rx PLL Low supply current LOOP FRAC N LO GENERATOR FILTER SYNTHE- 50 mA typical Rx current VSUP6 SIZER 50 mA to 100 mA Tx current (varies with output power) Rx_LO_LB 6 mm × 6 mm 40-pin LFCSP package SELECTABLE BANDWIDTH BASEBAND FILTERS APPLICATIONS RXHB1RF RXBBI I RXBBIB 3G home base stations (femtocells) CHAN- RXHB2RF NEL DC OFFSET CORRECTION RXBBQ RXLBRF Q RXBBQB CHAN- NEL DC OFFSET CORRECTION Rx_LO_LB REFIN 26MHz 19.2MHz SERIAL INTER- FACE VDD VSUP8 LDO1 LDO2 LDO3 LDO4 LDO5 N K A K P1 P2 P3 P4 P5 NT LK L U U U U U SE VI
