Datasheet RN41XV, RN42XV (Microchip) - 4

FabricanteMicrochip
DescripciónBluetooth Module
Páginas / Página10 / 4 — RN4142XV-DS. TABLE 2-7:. RN42XV RADIO CHARACTERISTICS. Frequency. …
Formato / tamaño de archivoPDF / 335 Kb
Idioma del documentoInglés

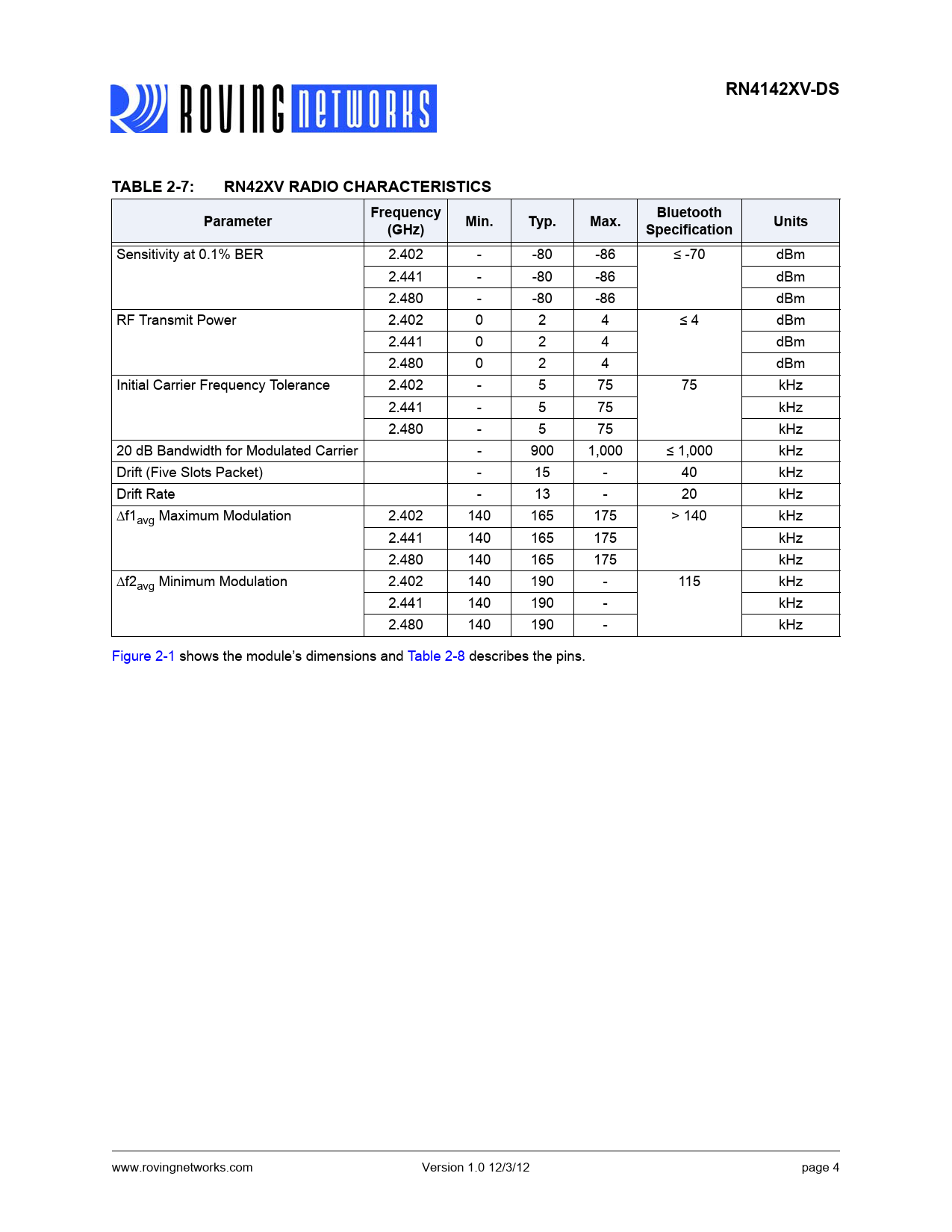

RN4142XV-DS. TABLE 2-7:. RN42XV RADIO CHARACTERISTICS. Frequency. Bluetooth. Parameter. Min. Typ. Max. Units. (GHz). Specification

RN4142XV-DS TABLE 2-7: RN42XV RADIO CHARACTERISTICS Frequency Bluetooth Parameter Min Typ Max Units (GHz) Specification

Línea de modelo para esta hoja de datos

Versión de texto del documento

link to page 5 link to page 5
RN4142XV-DS TABLE 2-7: RN42XV RADIO CHARACTERISTICS Frequency Bluetooth Parameter Min. Typ. Max. Units (GHz) Specification
Sensitivity at 0.1% BER 2.402 - -80 -86 ≤ -70 dBm 2.441 - -80 -86 dBm 2.480 - -80 -86 dBm RF Transmit Power 2.402 0 2 4 ≤ 4 dBm 2.441 0 2 4 dBm 2.480 0 2 4 dBm Initial Carrier Frequency Tolerance 2.402 - 5 75 75 kHz 2.441 - 5 75 kHz 2.480 - 5 75 kHz 20 dB Bandwidth for Modulated Carrier - 900 1,000 ≤ 1,000 kHz Drift (Five Slots Packet) - 15 - 40 kHz Drift Rate - 13 - 20 kHz ∆f1avg Maximum Modulation 2.402 140 165 175 > 140 kHz 2.441 140 165 175 kHz 2.480 140 165 175 kHz ∆f2avg Minimum Modulation 2.402 140 190 - 115 kHz 2.441 140 190 - kHz 2.480 140 190 - kHz Figure 2-1 shows the module’s dimensions and Table 2-8 describes the pins. www.rovingnetworks.com Version 1.0 12/3/12 page 4 Document Outline Features: Applications: 1.0 Description 2.0 Overview FIGURE 2-1: RN41XV & RN42XV Dimensions 3.0 Typical Application Schematic FIGURE 3-1: Application Schematic, Note 1 4.0 Design Concerns 4.1 Powering the Module 4.2 Reset Circuit 4.3 Factory Reset Using GPIO4 4.4 Connection Status 5.0 Compliance Information 6.0 Ordering Information
