RN4870/71 Bluetooth Low Energy Module User’s Guide

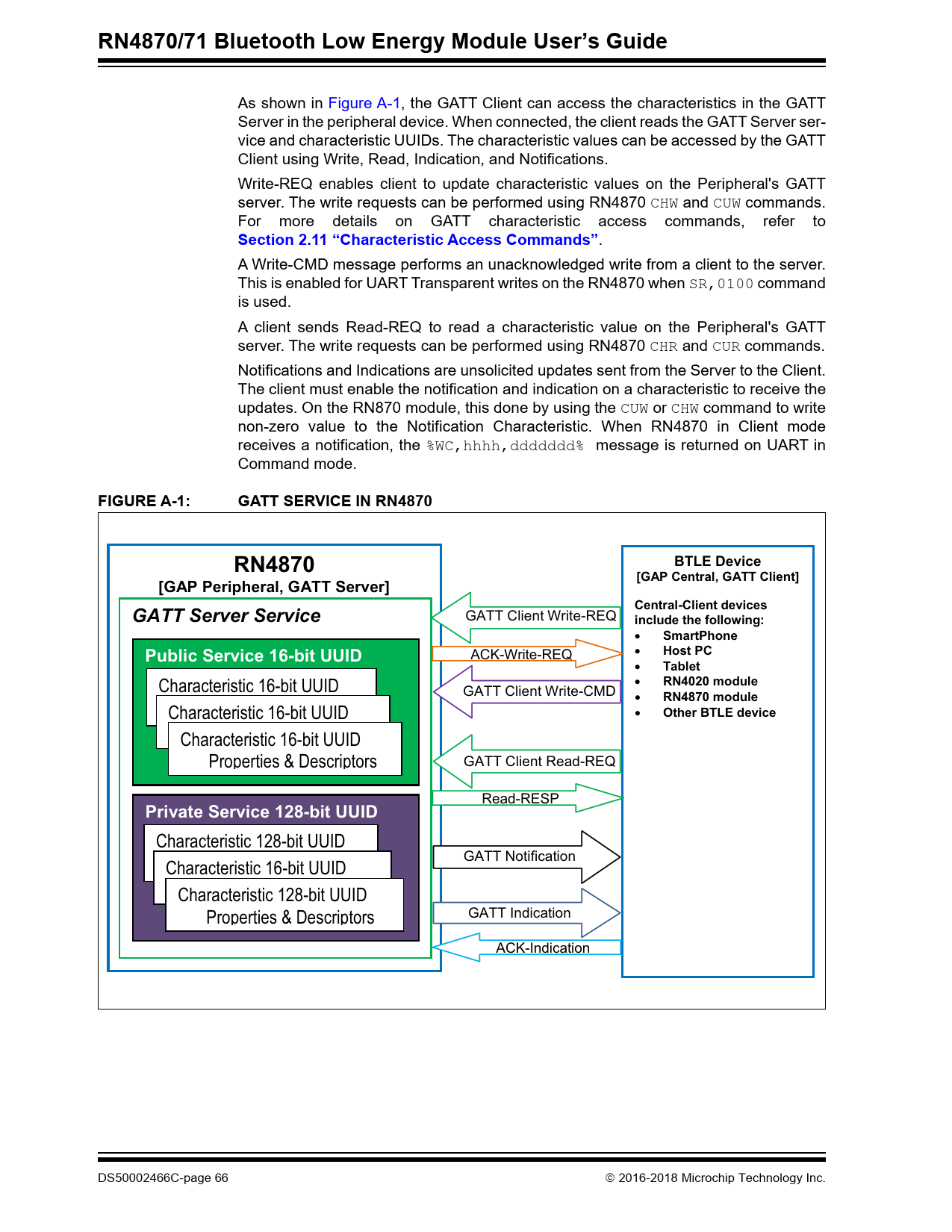

As shown in Figure A-1, the GATT Client can access the characteristics in the GATT Server in the peripheral device. When connected, the client reads the GATT Server ser- vice and characteristic UUIDs. The characteristic values can be accessed by the GATT Client using Write, Read, Indication, and Notifications. Write-REQ enables client to update characteristic values on the Peripheral's GATT server. The write requests can be performed using RN4870 CHW and CUW commands. For more details on GATT characteristic access commands, refer to
Section 2.11 “Characteristic Access Commands”
. A Write-CMD message performs an unacknowledged write from a client to the server. This is enabled for UART Transparent writes on the RN4870 when SR,0100 command is used. A client sends Read-REQ to read a characteristic value on the Peripheral's GATT server. The write requests can be performed using RN4870 CHR and CUR commands. Notifications and Indications are unsolicited updates sent from the Server to the Client. The client must enable the notification and indication on a characteristic to receive the updates. On the RN870 module, this done by using the CUW or CHW command to write non-zero value to the Notification Characteristic. When RN4870 in Client mode receives a notification, the %WC,hhhh,ddddddd% message is returned on UART in Command mode.
FIGURE A-1: GATT SERVICE IN RN4870 RN4870 BTLE Device [GAP Central, GATT Client] [GAP Peripheral, GATT Server] GATT Server Service Central-Client devices
GATT Client Write-5(4
include the following:
x
SmartPhone Public Service 16-bit UUID
x
Host PC
ACK-Write-REQ x
Tablet
Characteristic 16-bit UUID x
RN4020 module
GATT Client Write-&0' Pr x
RN4870 module
Charoper acteties & D ristic 16 escr -b iptors it UUID x
Other BTLE device
Properties & Descriptors Characteristic 16-bit UUID Properties & Descriptors GATT Client Read-5(4 Read-RESP
Private Service 128-bit UUID
Characteristic 128-bit UUID Pr Charoper acteties & D ristic 16 escr -b iptors it UUID GATT Notification Properties & Descriptors Characteristic 128-bit UUID Properties & Descriptors GATT Indication ACK-Indication DS50002466C-page 66  2016-2018 Microchip Technology Inc. Document Outline Trademarks Table of Contents Preface Chapter 1. Overview 1.1 Introduction 1.2 Key Features 1.2.1 ASCII Command Interface 1.2.2 Transparent UART 1.2.3 Custom GATT Services 1.2.4 Embedded Scripting Feature 1.2.5 Remote Command Console 1.3 Command Mode and Data Mode Figure 1-1: Command Mode and Transparent UART (Data) mode 1.4 Accessing the RN4870/71 over UART Table 1-1: Default UART Settings 1.5 RN4870 PIO Control Lines Chapter 2. Command Reference 2.1 Introduction 2.2 Command Syntax 2.3 Set and Get Commands Table 2-1: Set and Get Commands Syntax Format 2.4 Set Commands 2.4.1 S-,<string> 2.4.2 S$,<char> 2.4.3 S%,<pre>,<post> 2.4.4 SA,<0-5 Table 2-2: Set I/O Capability 2.4.5 SB,<H8> Table 2-3: UART Baud Rate Settings 2.4.6 SC,<0-2> Table 2-4: CONNECTABLE AND NON-CONNECTABLE ADVERTIEMENT SETTINGS 2.4.7 SDA,<H16> 2.4.8 SDF,<text> 2.4.9 SDH,<text> 2.4.10 SDM,<text> 2.4.11 SDN,<text> 2.4.12 SDR,<text> 2.4.13 SDS,<text> 2.4.14 SF,1 2.4.15 SF,2 2.4.16 SGA,<0-5>/SGC,<0-5> Table 2-5: Typical Output Power values 2.4.17 SM,<1-3>,<hex16> 2.4.18 SN,<text> 2.4.19 SO,<0,1> 2.4.20 SP,<4/6 digit pin> 2.4.21 SR,<hex16> Table 2-6: Bitmap of Features 2.4.22 SS,<hex8> Table 2-7: Bitmap of Services 2.4.23 ST,<hex16>,<hex16>,<hex16>,<hex16> Table 2-8: Connection Parameters 2.4.24 STA,<hex16>,<hex16>,<hex16> 2.4.25 STB,<hex16> 2.4.26 SW,<hex8>,<hex8> Table 2-9: Pin Index and RN4870/71 Pins Table 2-10: Configurable Functions 2.5 Get Commands 2.5.1 GK 2.5.2 GNR 2.5.3 G<char> 2.6 Action Commands 2.6.1 +[,<text>] 2.6.2 $$$ 2.6.3 --- 2.6.4 !,<0,1> 2.6.5 @,<0-5> Table 2-11: analog Channels and Associated Pins 2.6.6 |I,<hex8> Table 2-12: Digital I/O Bitmap 2.6.7 |O,<hex8>,<hex8> 2.6.8 [,<1-2>,<0-3>,<hex16>,<hex16> Table 2-13: PWM Operation Selection Figure 2-1: Basic concept of PWM Operation 2.6.9 &,<MAC> 2.6.10 &C 2.6.11 &R 2.6.12 A[,<hex16>,<hex16>] 2.6.13 B 2.6.14 C 2.6.15 C,<0,1>,<address> 2.6.16 C<1-8> 2.6.17 D 2.6.18 F[,<hex16>,<hex16>] 2.6.19 I 2.6.20 IA,<hex8>,<Hex>/IB,<hex8>,<Hex>/IS,<hex8>,<Hex> NA,<hex8>,<Hex>/NB,<hex8>,<Hex>/NS,<hex8>,<Hex> Table 2-14: List of AD Types 2.6.21 JA,<0,1>,<MAC> 2.6.22 JB 2.6.23 JC 2.6.24 JD 2.6.25 K,1 2.6.26 M 2.6.27 O,0 2.6.28 R,1 2.6.29 T,<hex16>,<hex16>,<hex16>,<hex16> 2.6.30 U,<1-8,Z> 2.6.31 V 2.6.32 X 2.6.33 Y 2.6.34 Z 2.7 I2C Commands Table 2-15: I2C Peripheral Interface Table 2-16: I2C Commands 2.7.1 ]A Table 2-17: Clock values 2.7.2 ]Z 2.7.3 ]D 2.7.4 ]R 2.7.5 ]W 2.7.6 ]X 2.8 SPI Commands Table 2-18: SPI Peripheral Interface Table 2-19: SPI Contacts 2.8.1 {A Table 2-20: SPI Clock Polarity and Phase Settings Table 2-21: SPI Master Clock Rate Table 2-22: SPI Chip Select Pin 2.8.2 {Z 2.8.3 {X 2.8.4 }A Table 2-23: SPI Clock Polarity and Phase Settings Table 2-24: SPI Master Clock Rate 2.8.5 }Z 2.8.6 }R 2.8.7 }W 2.9 List Commands 2.9.1 LB 2.9.2 LC[,<P,UUID>] Figure 2-2: Listing Client Service and Characteristics 2.9.3 LS[,<P,UUID>] 2.9.4 LW 2.10 Service Configuration Commands 2.10.1 PC,<hex16/hex128>,<hex8>,<hex8> 2.10.2 PS,<hex16/hex128> 2.10.3 PZ 2.10.4 Defining Multiple Services 2.11 Characteristic Access Commands 2.11.1 Definition of Characteristic Access Commands Table 2-25: Format of GATT access commands 2.11.2 CHR 2.11.3 CHW 2.11.4 CI 2.11.5 SHR 2.11.6 SHW 2.12 Script Commands 2.12.1 WC 2.12.2 WP 2.12.3 WR[,<H6>] Table 2-26: Command WR Input Parameters and Associated Events 2.12.4 WW Chapter 3. Embedded Scripting Feature 3.1 Introduction 3.1.1 Script Overview 3.1.2 Event Driven Table 3-1: List of Events and Event Labels 3.1.3 Comments 3.1.4 Variables 3.1.5 Handle Association 3.1.6 Remote Function Call Chapter 4. Connection Examples 4.1 Connecting to RN4870 using SmartDiscover App Figure 4-1: Connect to the RN4870 module Figure 4-2: Service Discovery Figure 4-3: Characteristic Access 4.2 UART Transparent Connection Using SmartData Figure 4-4: Connect to RN4870 Figure 4-5: Data Exchange on SmartData APP Figure 4-6: Data Exchange on Terminal Emulator 4.3 Module-to-Module Connection Figure 4-7: Connecting two RN4870 modules Appendix A. Bluetooth Low Energy Fundamentals A.1 Introduction Table A-1: Characteristic Properties Figure A-1: GATT Service in RN4870 Appendix B. Transparent UART Service UUIDs B.1 Introduction Table B-1: Characteristic Properties Appendix C. Low-Power Operation C.1 Introduction Figure C-1: State Diagram Appendix D. Status Response Summary Quick Reference D.1 Introduction Table D-1: Status Messages Returned by RN4870 /71 Table D-2: Command Summary Quick Reference AMERICAS Corporate Office Atlanta Austin, TX Boston Chicago Dallas Detroit Houston, TX Indianapolis Los Angeles Raleigh, NC New York, NY San Jose, CA Canada - Toronto ASIA/PACIFIC Australia - Sydney China - Beijing China - Chengdu China - Chongqing China - Dongguan China - Guangzhou China - Hangzhou China - Hong Kong SAR China - Nanjing China - Qingdao China - Shanghai China - Shenyang China - Shenzhen China - Suzhou China - Wuhan China - Xian China - Xiamen China - Zhuhai ASIA/PACIFIC India - Bangalore India - New Delhi India - Pune Japan - Osaka Japan - Tokyo Korea - Daegu Korea - Seoul Malaysia - Kuala Lumpur Malaysia - Penang Philippines - Manila Singapore Taiwan - Hsin Chu Taiwan - Kaohsiung Taiwan - Taipei Thailand - Bangkok Vietnam - Ho Chi Minh EUROPE Austria - Wels Denmark - Copenhagen Finland - Espoo France - Paris Germany - Garching Germany - Haan Germany - Heilbronn Germany - Karlsruhe Germany - Munich Germany - Rosenheim Israel - Ra’anana Italy - Milan Italy - Padova Netherlands - Drunen Norway - Trondheim Poland - Warsaw Romania - Bucharest Spain - Madrid Sweden - Gothenberg Sweden - Stockholm UK - Wokingham Worldwide Sales and Service Worldwide Sales and Service
