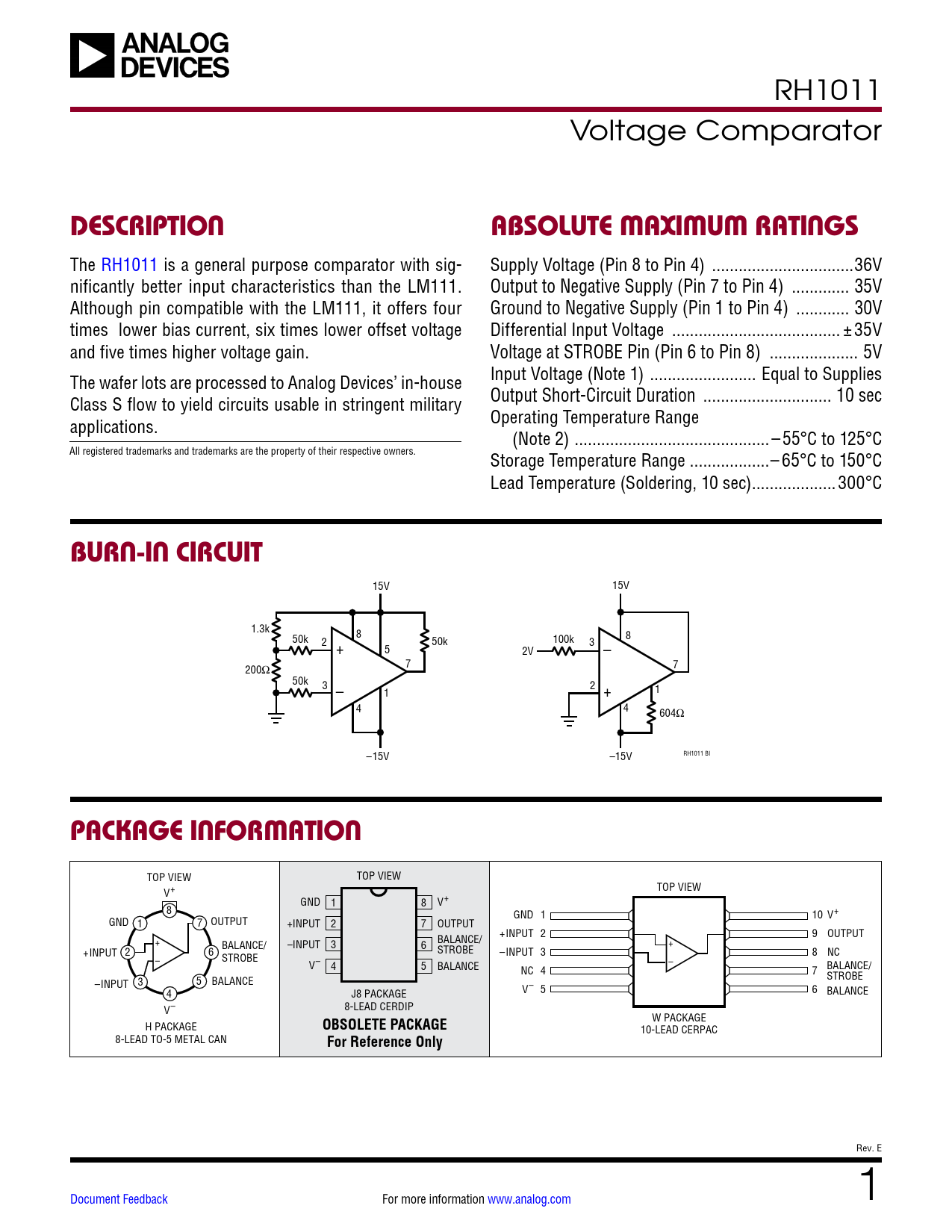

RH1011 Voltage Comparator
DESCRIPTION ABSOLUTE MAXIMUM RATINGS
The RH1011 is a general purpose comparator with sig- Supply Voltage (Pin 8 to Pin 4) ..36V nificantly better input characteristics than the LM111. Output to Negative Supply (Pin 7 to Pin 4) ... 35V Although pin compatible with the LM111, it offers four Ground to Negative Supply (Pin 1 to Pin 4) .. 30V times lower bias current, six times lower offset voltage Differential Input Voltage .. ±35V and five times higher voltage gain. Voltage at STROBE Pin (Pin 6 to Pin 8) .. 5V The wafer lots are processed to Analog Devices’ in-house Input Voltage (Note 1) .. Equal to Supplies Class S flow to yield circuits usable in stringent military Output Short-Circuit Duration ... 10 sec applications. Operating Temperature Range (Note 2) ..–55°C to 125°C All registered trademarks and trademarks are the property of their respective owners. Storage Temperature Range ..– 65°C to 150°C Lead Temperature (Soldering, 10 sec) ...300°C
BURN-IN CIRCUIT
15V 15V 1.3k 50k 8 2 8 + 50k 100k 3 5 2V – 200Ω 7 7 50k 3 – 2 1 + 1 4 4 604Ω –15V –15V RH1011 BI
PACKAGE INFORMATION
TOP VIEW TOP VIEW V+ TOP VIEW GND 1 8 V+ 8 GND 1 10 V+ GND 1 7 OUTPUT +INPUT 2 7 OUTPUT + +INPUT 2 9 OUTPUT + BALANCE/ –INPUT 3 6 BALANCE/ +INPUT 2 – 6 STROBE STROBE –INPUT 3 – 8 NC V– 4 5 BALANCE NC 4 7 BALANCE/ STROBE –INPUT 3 5 BALANCE 4 J8 PACKAGE V– 5 6 BALANCE V– 8-LEAD CERDIP W PACKAGE H PACKAGE
OBSOLETE PACKAGE
10-LEAD CERPAC 8-LEAD TO-5 METAL CAN
For Reference Only
