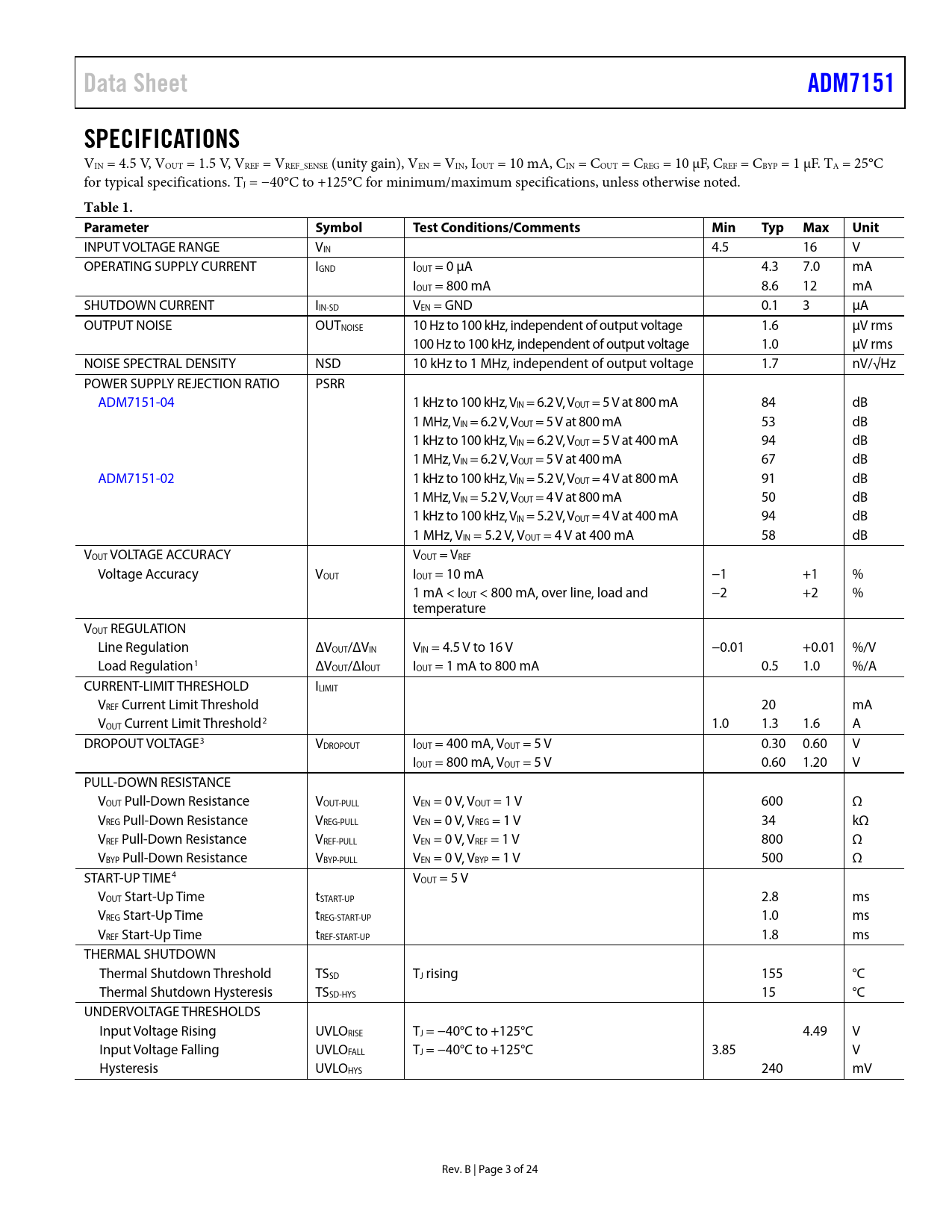

Data Sheet. ADM7151. SPECIFICATIONS. Table 1. Parameter. Symbol. Test Conditions/Comments. Min. Typ Max. Unit

Data Sheet ADM7151 SPECIFICATIONS Table 1 Parameter Symbol Test Conditions/Comments Min Typ Max Unit

Línea de modelo para esta hoja de datos

Versión de texto del documento

link to page 4 link to page 4 link to page 4 link to page 4
Data Sheet ADM7151 SPECIFICATIONS
VIN = 4.5 V, VOUT = 1.5 V, VREF = VREF_SENSE (unity gain), VEN = VIN, IOUT = 10 mA, CIN = COUT = CREG = 10 µF, CREF = CBYP = 1 µF. TA = 25°C for typical specifications. TJ = −40°C to +125°C for minimum/maximum specifications, unless otherwise noted.
Table 1. Parameter Symbol Test Conditions/Comments Min Typ Max Unit
INPUT VOLTAGE RANGE VIN 4.5 16 V OPERATING SUPPLY CURRENT IGND IOUT = 0 µA 4.3 7.0 mA IOUT = 800 mA 8.6 12 mA SHUTDOWN CURRENT IIN-SD VEN = GND 0.1 3 µA OUTPUT NOISE OUTNOISE 10 Hz to 100 kHz, independent of output voltage 1.6 µV rms 100 Hz to 100 kHz, independent of output voltage 1.0 µV rms NOISE SPECTRAL DENSITY NSD 10 kHz to 1 MHz, independent of output voltage 1.7 nV/√Hz POWER SUPPLY REJECTION RATIO PSRR ADM7151-04 1 kHz to 100 kHz, VIN = 6.2 V, VOUT = 5 V at 800 mA 84 dB 1 MHz, VIN = 6.2 V, VOUT = 5 V at 800 mA 53 dB 1 kHz to 100 kHz, VIN = 6.2 V, VOUT = 5 V at 400 mA 94 dB 1 MHz, VIN = 6.2 V, VOUT = 5 V at 400 mA 67 dB ADM7151-02 1 kHz to 100 kHz, VIN = 5.2 V, VOUT = 4 V at 800 mA 91 dB 1 MHz, VIN = 5.2 V, VOUT = 4 V at 800 mA 50 dB 1 kHz to 100 kHz, VIN = 5.2 V, VOUT = 4 V at 400 mA 94 dB 1 MHz, VIN = 5.2 V, VOUT = 4 V at 400 mA 58 dB VOUT VOLTAGE ACCURACY VOUT = VREF Voltage Accuracy VOUT IOUT = 10 mA −1 +1 % 1 mA < IOUT < 800 mA, over line, load and −2 +2 % temperature VOUT REGULATION Line Regulation ΔVOUT/ΔVIN VIN = 4.5 V to 16 V −0.01 +0.01 %/V Load Regulation1 ΔVOUT/ΔIOUT IOUT = 1 mA to 800 mA 0.5 1.0 %/A CURRENT-LIMIT THRESHOLD ILIMIT VREF Current Limit Threshold 20 mA VOUT Current Limit Threshold2 1.0 1.3 1.6 A DROPOUT VOLTAGE3 VDROPOUT IOUT = 400 mA, VOUT = 5 V 0.30 0.60 V IOUT = 800 mA, VOUT = 5 V 0.60 1.20 V PULL-DOWN RESISTANCE VOUT Pull-Down Resistance VOUT-PULL VEN = 0 V, VOUT = 1 V 600 Ω VREG Pull-Down Resistance VREG-PULL VEN = 0 V, VREG = 1 V 34 kΩ VREF Pull-Down Resistance VREF-PULL VEN = 0 V, VREF = 1 V 800 Ω VBYP Pull-Down Resistance VBYP-PULL VEN = 0 V, VBYP = 1 V 500 Ω START-UP TIME4 VOUT = 5 V VOUT Start-Up Time tSTART-UP 2.8 ms VREG Start-Up Time tREG-START-UP 1.0 ms VREF Start-Up Time tREF-START-UP 1.8 ms THERMAL SHUTDOWN Thermal Shutdown Threshold TSSD TJ rising 155 °C Thermal Shutdown Hysteresis TSSD-HYS 15 °C UNDERVOLTAGE THRESHOLDS Input Voltage Rising UVLORISE TJ = −40°C to +125°C 4.49 V Input Voltage Falling UVLOFALL TJ = −40°C to +125°C 3.85 V Hysteresis UVLOHYS 240 mV Rev. B | Page 3 of 24 Document Outline FEATURES APPLICATIONS TYPICAL APPLICATION CIRCUIT GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS INPUT AND OUTPUT CAPACITOR, RECOMMENDED SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL DATA THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLICATIONS INFORMATION MODEL SELECTION CAPACITOR SELECTION Output Capacitor Input and VREG Capacitor REF Capacitor BYP Capacitor Capacitor Properties ENABLE (EN) AND UNDERVOLTAGE LOCKOUT (UVLO) START-UP TIME REF, BYP, AND VREG PINS CURRENT-LIMIT AND THERMAL OVERLOAD PROTECTION THERMAL CONSIDERATIONS Thermal Characterization Parameter (ΨJB) PRINTED CIRCUIT BOARD LAYOUT CONSIDERATIONS OUTLINE DIMENSIONS ORDERING GUIDE
