Datasheet ADP151-EP (Analog Devices) - 6
| Fabricante | Analog Devices |
| Descripción | Ultralow Noise, 200 mA, CMOS Linear Regulator |
| Páginas / Página | 16 / 6 — ADP151-EP. Enhanced Product. PIN CONFIGURATIONS AND FUNCTION … |
| Formato / tamaño de archivo | PDF / 341 Kb |
| Idioma del documento | Inglés |

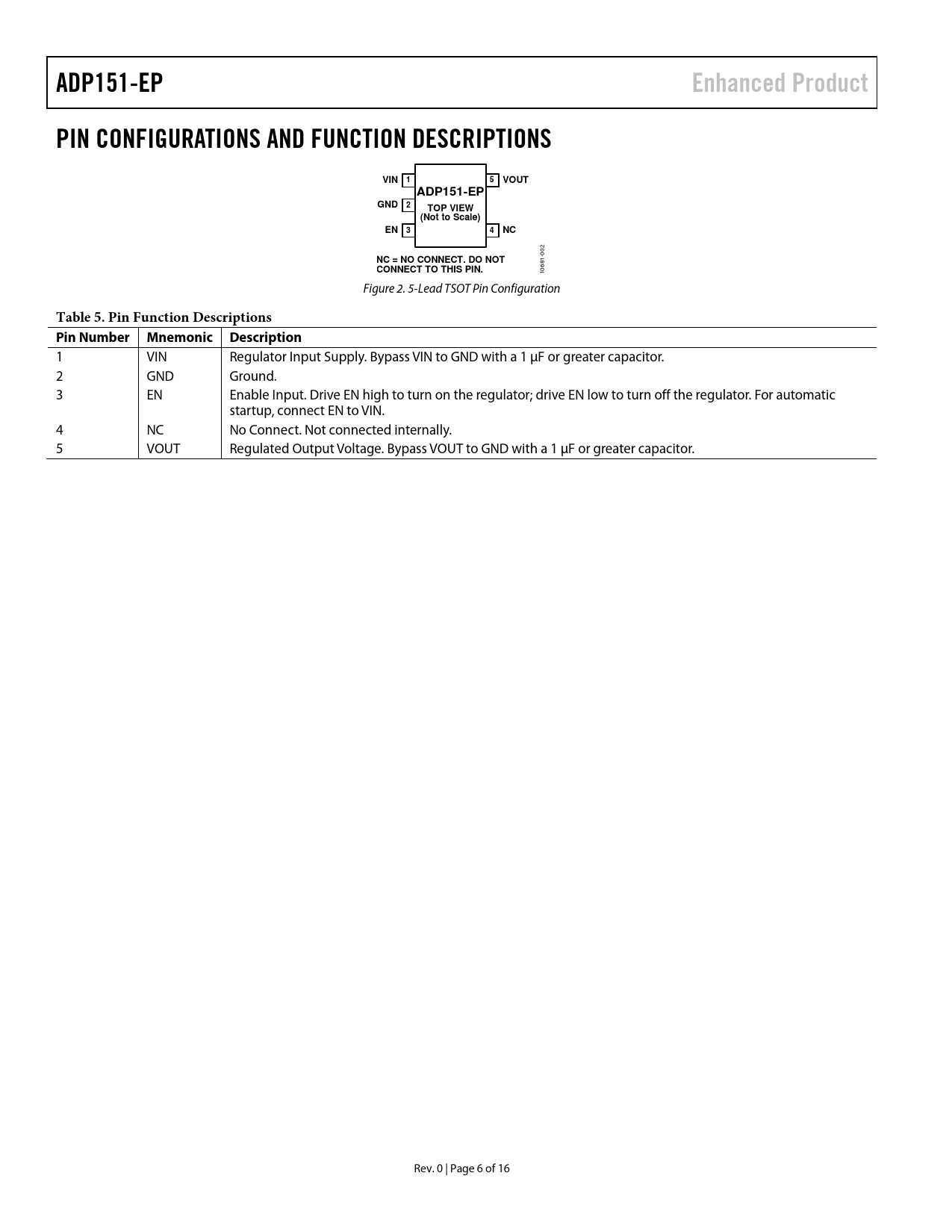

ADP151-EP. Enhanced Product. PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS. VIN 1. VOUT. GND 2. TOP VIEW. (Not to Scale). EN 3
Línea de modelo para esta hoja de datos
- ADP151ACBZ-1.1-R7 ADP151ACBZ-1.2-R7 ADP151ACBZ-1.5-R7 ADP151ACBZ-1.8-R7 ADP151ACBZ-2.1-R7 ADP151ACBZ-2.5-R7 ADP151ACBZ-2.6-R7 ADP151ACBZ-2.75-R7 ADP151ACBZ-2.8-R7 ADP151ACBZ-2.85-R7 ADP151ACBZ-3.0-R7 ADP151ACBZ-3.3-R7 ADP151ACPZ-1.2-R7 ADP151ACPZ-1.5-R7 ADP151ACPZ-1.8-R7 ADP151ACPZ-2.5-R7 ADP151ACPZ-2.7-R7 ADP151ACPZ-2.8-R7 ADP151ACPZ-3.0-R7 ADP151ACPZ-3.3-R7 ADP151AUJZ-1.2-R7 ADP151AUJZ-1.5-R7 ADP151AUJZ-1.8-R7 ADP151AUJZ-2.5-R7 ADP151AUJZ-2.8-R7 ADP151AUJZ-2.9-R7 ADP151AUJZ-3.0-R7 ADP151AUJZ-3.3-R7 ADP151TUJZ3.3-EPR2 ADP151WACBZ-1.1-R7 ADP151WACBZ-1.2-R7 ADP151WACBZ-1.5-R7 ADP151WACBZ-1.8-R7 ADP151WACBZ-2.1-R7 ADP151WACBZ-2.5-R7 ADP151WACBZ-2.6-R7 ADP151WACBZ-2.75-R7 ADP151WACBZ-2.8-R7 ADP151WACBZ-2.85-R7 ADP151WACBZ-3.0-R7 ADP151WACBZ-3.3-R7
Versión de texto del documento
ADP151-EP Enhanced Product PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS VIN 1 5 VOUT ADP151-EP GND 2 TOP VIEW (Not to Scale) EN 3 4 NC
002
NC = NO CONNECT. DO NOT CONNECT TO THIS PIN.
10681- Figure 2. 5-Lead TSOT Pin Configuration
Table 5. Pin Function Descriptions Pin Number Mnemonic Description
1 VIN Regulator Input Supply. Bypass VIN to GND with a 1 µF or greater capacitor. 2 GND Ground. 3 EN Enable Input. Drive EN high to turn on the regulator; drive EN low to turn off the regulator. For automatic startup, connect EN to VIN. 4 NC No Connect. Not connected internally. 5 VOUT Regulated Output Voltage. Bypass VOUT to GND with a 1 µF or greater capacitor. Rev. 0 | Page 6 of 16 Document Outline Features Applications Typical Application Circuit General Description Revision History Specifications Input and Output Capacitor, Recommended Specifications Absolute Maximum Ratings Thermal Data Thermal Resistance ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Applications Information Thermal Considerations Printed Circuit Board Layout Considerations Outline Dimensions Ordering Guide
