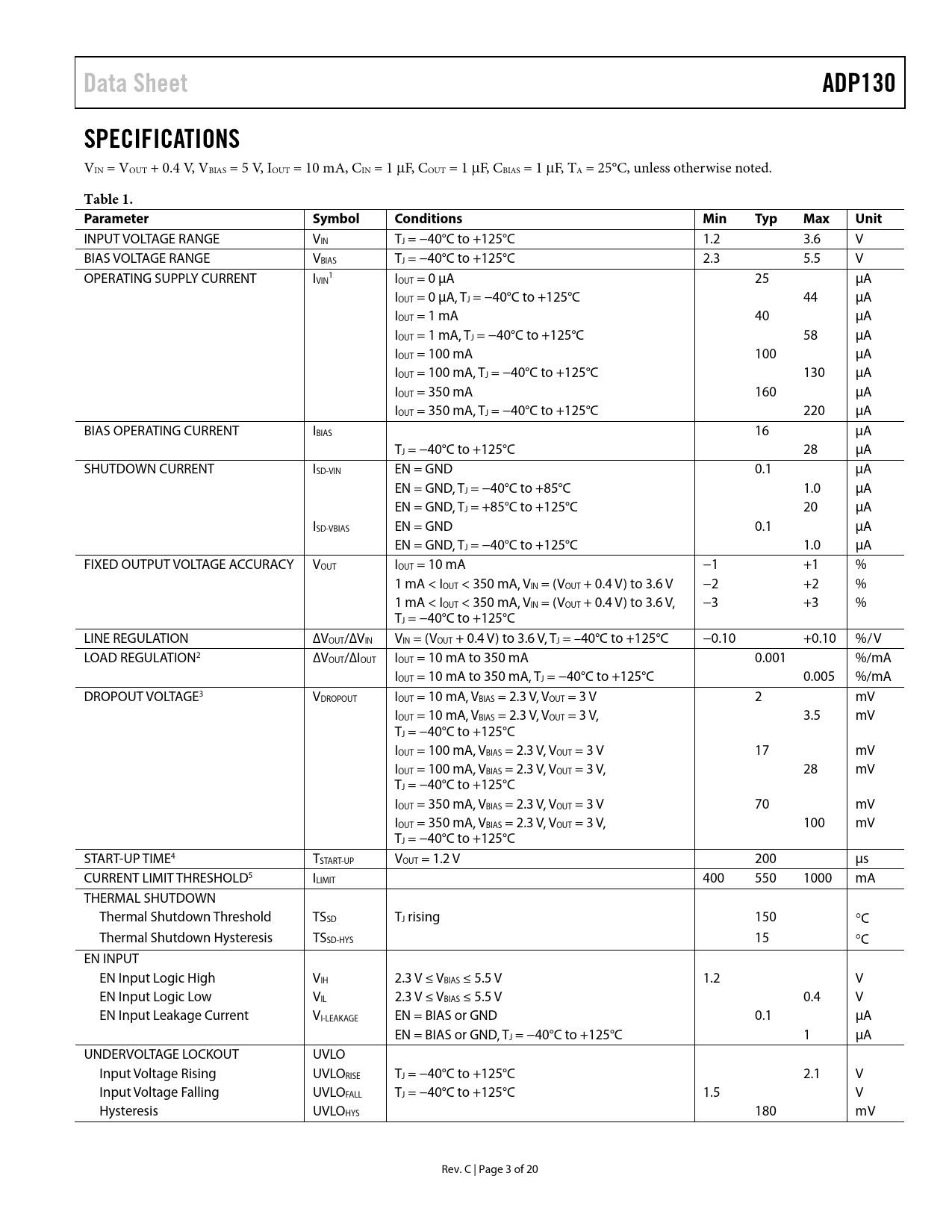

Data Sheet ADP130 SPECIFICATIONS
VIN = VOUT + 0.4 V, VBIAS = 5 V, IOUT = 10 mA, CIN = 1 F, COUT = 1 F, CBIAS = 1 F, TA = 25°C, unless otherwise noted.
Table 1. Parameter Symbol Conditions Min Typ Max Unit
INPUT VOLTAGE RANGE VIN TJ = −40°C to +125°C 1.2 3.6 V BIAS VOLTAGE RANGE VBIAS TJ = −40°C to +125°C 2.3 5.5 V OPERATING SUPPLY CURRENT I 1 VIN IOUT = 0 μA 25 μA IOUT = 0 μA, TJ = −40°C to +125°C 44 μA IOUT = 1 mA 40 μA IOUT = 1 mA, TJ = −40°C to +125°C 58 μA IOUT = 100 mA 100 μA IOUT = 100 mA, TJ = −40°C to +125°C 130 μA IOUT = 350 mA 160 μA IOUT = 350 mA, TJ = −40°C to +125°C 220 μA BIAS OPERATING CURRENT IBIAS 16 μA TJ = −40°C to +125°C 28 μA SHUTDOWN CURRENT ISD-VIN EN = GND 0.1 μA EN = GND, TJ = −40°C to +85°C 1.0 μA EN = GND, TJ = +85°C to +125°C 20 μA ISD-VBIAS EN = GND 0.1 μA EN = GND, TJ = −40°C to +125°C 1.0 μA FIXED OUTPUT VOLTAGE ACCURACY VOUT IOUT = 10 mA −1 +1 % 1 mA < IOUT < 350 mA, VIN = (VOUT + 0.4 V) to 3.6 V −2 +2 % 1 mA < IOUT < 350 mA, VIN = (VOUT + 0.4 V) to 3.6 V, −3 +3 % TJ = −40°C to +125°C LINE REGULATION ∆VOUT/∆VIN VIN = (VOUT + 0.4 V) to 3.6 V, TJ = –40°C to +125°C −0.10 +0.10 %/ V LOAD REGULATION2 ∆VOUT/∆IOUT IOUT = 10 mA to 350 mA 0.001 %/mA IOUT = 10 mA to 350 mA, TJ = −40°C to +125°C 0.005 %/mA DROPOUT VOLTAGE3 VDROPOUT IOUT = 10 mA, VBIAS = 2.3 V, VOUT = 3 V 2 mV IOUT = 10 mA, VBIAS = 2.3 V, VOUT = 3 V, 3.5 mV TJ = −40°C to +125°C IOUT = 100 mA, VBIAS = 2.3 V, VOUT = 3 V 17 mV IOUT = 100 mA, VBIAS = 2.3 V, VOUT = 3 V, 28 mV TJ = −40°C to +125°C IOUT = 350 mA, VBIAS = 2.3 V, VOUT = 3 V 70 mV IOUT = 350 mA, VBIAS = 2.3 V, VOUT = 3 V, 100 mV TJ = −40°C to +125°C START-UP TIME4 TSTART-UP VOUT = 1.2 V 200 μs CURRENT LIMIT THRESHOLD5 ILIMIT 400 550 1000 mA THERMAL SHUTDOWN Thermal Shutdown Threshold TSSD TJ rising 150 C Thermal Shutdown Hysteresis TSSD-HYS 15 C EN INPUT EN Input Logic High VIH 2.3 V ≤ VBIAS ≤ 5.5 V 1.2 V EN Input Logic Low VIL 2.3 V ≤ VBIAS ≤ 5.5 V 0.4 V EN Input Leakage Current VI-LEAKAGE EN = BIAS or GND 0.1 μA EN = BIAS or GND, TJ = −40°C to +125°C 1 μA UNDERVOLTAGE LOCKOUT UVLO Input Voltage Rising UVLORISE TJ = −40°C to +125°C 2.1 V Input Voltage Falling UVLOFALL TJ = −40°C to +125°C 1.5 V Hysteresis UVLOHYS 180 mV Rev. C | Page 3 of 20 Document Outline Features Applications Typical Application Circuits General Description Table of Contents Revision History Specifications Input and Output Capacitor: Recommended Specifications Absolute Maximum Ratings Thermal Data Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Theory of Operation Applications Information Capacitor Selection Output Capacitor Input Bypass Capacitor Bias Capacitor Input, Bias, and Output Capacitor Properties Undervoltage Lockout Enable Feature Current Limit and Thermal Overload Protection Thermal Considerations Junction Temperature Calculations PCB Layout Considerations Outline Dimensions Ordering Guide
