ADP1712/ADP1713/ADP1714. Parameter. Symbol. Conditions. Min. Typ. Max. Unit

ADP1712/ADP1713/ADP1714 Parameter Symbol Conditions Min Typ Max Unit

Línea de modelo para esta hoja de datos

Versión de texto del documento

link to page 7

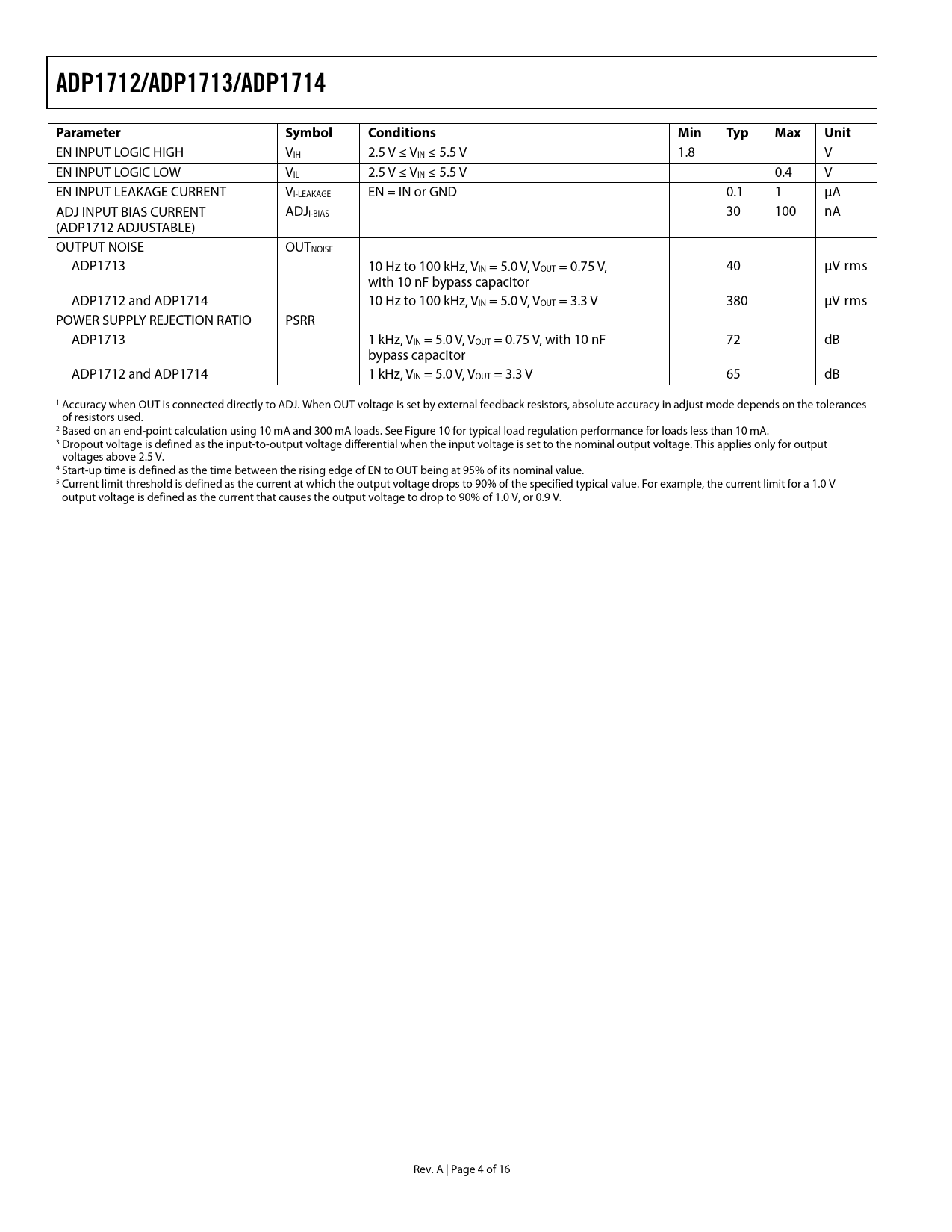

ADP1712/ADP1713/ADP1714 Parameter Symbol Conditions Min Typ Max Unit
EN INPUT LOGIC HIGH VIH 2.5 V ≤ VIN ≤ 5.5 V 1.8 V EN INPUT LOGIC LOW VIL 2.5 V ≤ VIN ≤ 5.5 V 0.4 V EN INPUT LEAKAGE CURRENT VI-LEAKAGE EN = IN or GND 0.1 1 μA ADJ INPUT BIAS CURRENT ADJI-BIAS 30 100 nA (ADP1712 ADJUSTABLE) OUTPUT NOISE OUTNOISE ADP1713 10 Hz to 100 kHz, VIN = 5.0 V, VOUT = 0.75 V, 40 μV rms with 10 nF bypass capacitor ADP1712 and ADP1714 10 Hz to 100 kHz, VIN = 5.0 V, VOUT = 3.3 V 380 μV rms POWER SUPPLY REJECTION RATIO PSRR ADP1713 1 kHz, VIN = 5.0 V, VOUT = 0.75 V, with 10 nF 72 dB bypass capacitor ADP1712 and ADP1714 1 kHz, VIN = 5.0 V, VOUT = 3.3 V 65 dB 1 Accuracy when OUT is connected directly to ADJ. When OUT voltage is set by external feedback resistors, absolute accuracy in adjust mode depends on the tolerances of resistors used. 2 Based on an end-point calculation using 10 mA and 300 mA loads. See Figure 10 for typical load regulation performance for loads less than 10 mA. 3 Dropout voltage is defined as the input-to-output voltage differential when the input voltage is set to the nominal output voltage. This applies only for output voltages above 2.5 V. 4 Start-up time is defined as the time between the rising edge of EN to OUT being at 95% of its nominal value. 5 Current limit threshold is defined as the current at which the output voltage drops to 90% of the specified typical value. For example, the current limit for a 1.0 V output voltage is defined as the current that causes the output voltage to drop to 90% of 1.0 V, or 0.9 V. Rev. A | Page 4 of 16 Document Outline FEATURES APPLICATIONS TYPICAL APPLICATION CIRCUITS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION SOFT-START FUNCTION (ADP1712) ADJUSTABLE OUTPUT VOLTAGE(ADP1712 ADJUSTABLE) BYPASS CAPACITOR (ADP1713) TRACK MODE (ADP1714) ENABLE FEATURE UNDERVOLTAGE LOCKOUT (UVLO) APPLICATION INFORMATION CAPACITOR SELECTION Output Capacitor Input Bypass Capacitor Input and Output Capacitor Properties CURRENT LIMIT AND THERMAL OVERLOAD PROTECTION THERMAL CONSIDERATIONS PRINTED CIRCUIT BOARD LAYOUT CONSIDERATIONS OUTLINE DIMENSIONS ORDERING GUIDE
