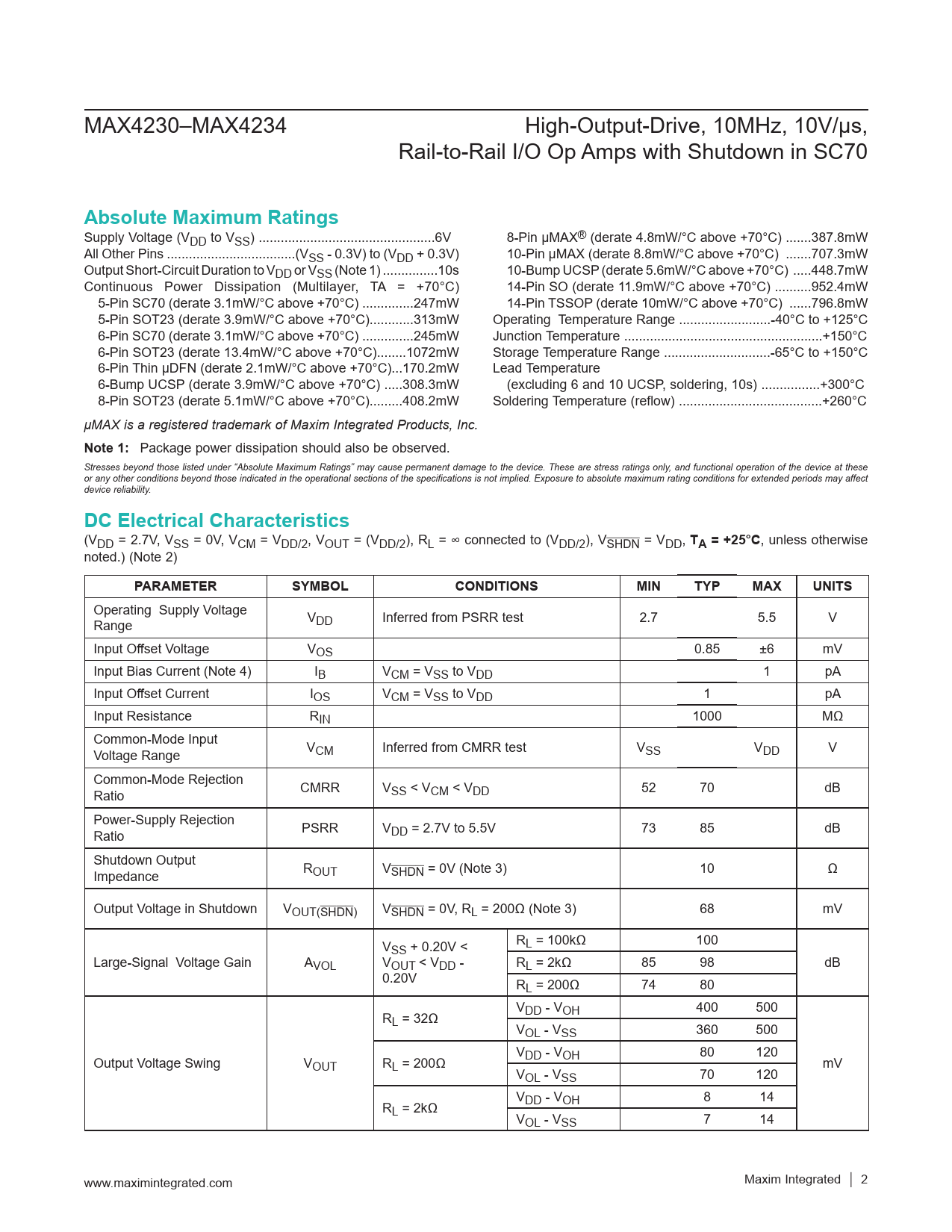

MAX4230–MAX4234 High-Output-Drive, 10MHz, 10V/μs, Rail-to-Rail I/O Op Amps with Shutdown in SC70
Absolute Maximum Ratings
Supply Voltage (VDD to VSS) ..6V 8-Pin µMAX® (derate 4.8mW/°C above +70°C) ...387.8mW All Other Pins ...(VSS - 0.3V) to (VDD + 0.3V) 10-Pin µMAX (derate 8.8mW/°C above +70°C) ...707.3mW Output Short-Circuit Duration to VDD or VSS (Note 1) ...10s 10-Bump UCSP (derate 5.6mW/°C above +70°C) ...448.7mW Continuous Power Dissipation (Multilayer, TA = +70°C) 14-Pin SO (derate 11.9mW/°C above +70°C) ..952.4mW 5-Pin SC70 (derate 3.1mW/°C above +70°C) ..247mW 14-Pin TSSOP (derate 10mW/°C above +70°C) ..796.8mW 5-Pin SOT23 (derate 3.9mW/°C above +70°C)..313mW Operating Temperature Range ...-40°C to +125°C 6-Pin SC70 (derate 3.1mW/°C above +70°C) ..245mW Junction Temperature ..+150°C 6-Pin SOT23 (derate 13.4mW/°C above +70°C)..1072mW Storage Temperature Range ...-65°C to +150°C 6-Pin Thin µDFN (derate 2.1mW/°C above +70°C)...170.2mW Lead Temperature 6-Bump UCSP (derate 3.9mW/°C above +70°C) ...308.3mW (excluding 6 and 10 UCSP, soldering, 10s) ..+300°C 8-Pin SOT23 (derate 5.1mW/°C above +70°C)...408.2mW Soldering Temperature (reflow) ...+260°C μMAX is a registered trademark of Maxim Integrated Products, Inc.
Note 1:
Package power dissipation should also be observed. Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
DC Electrical Characteristics
(VDD = 2.7V, VSS = 0V, VCM = VDD/2, VOUT = (VDD/2), RL = ∞ connected to (VDD/2), VSHDN = VDD,
TA = +25°C
, unless otherwise noted.) (Note 2)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
Operating Supply Voltage Range VDD Inferred from PSRR test 2.7 5.5 V Input Offset Voltage VOS 0.85 ±6 mV Input Bias Current (Note 4) IB VCM = VSS to VDD 1 pA Input Offset Current IOS VCM = VSS to VDD 1 pA Input Resistance RIN 1000 MΩ Common-Mode Input Voltage Range VCM Inferred from CMRR test VSS VDD V Common-Mode Rejection Ratio CMRR VSS < VCM < VDD 52 70 dB Power-Supply Rejection Ratio PSRR VDD = 2.7V to 5.5V 73 85 dB Shutdown Output Impedance ROUT VSHDN = 0V (Note 3) 10 Ω Output Voltage in Shutdown VOUT(SHDN) VSHDN = 0V, RL = 200Ω (Note 3) 68 mV V R SS + 0.20V < L = 100kΩ 100 Large-Signal Voltage Gain AVOL VOUT < VDD - RL = 2kΩ 85 98 dB 0.20V RL = 200Ω 74 80 V R DD - VOH 400 500 L = 32Ω VOL - VSS 360 500 V Output Voltage Swing V DD - VOH 80 120 OUT RL = 200Ω mV VOL - VSS 70 120 V R DD - VOH 8 14 L = 2kΩ VOL - VSS 7 14 www.maximintegrated.com Maxim Integrated │
2
