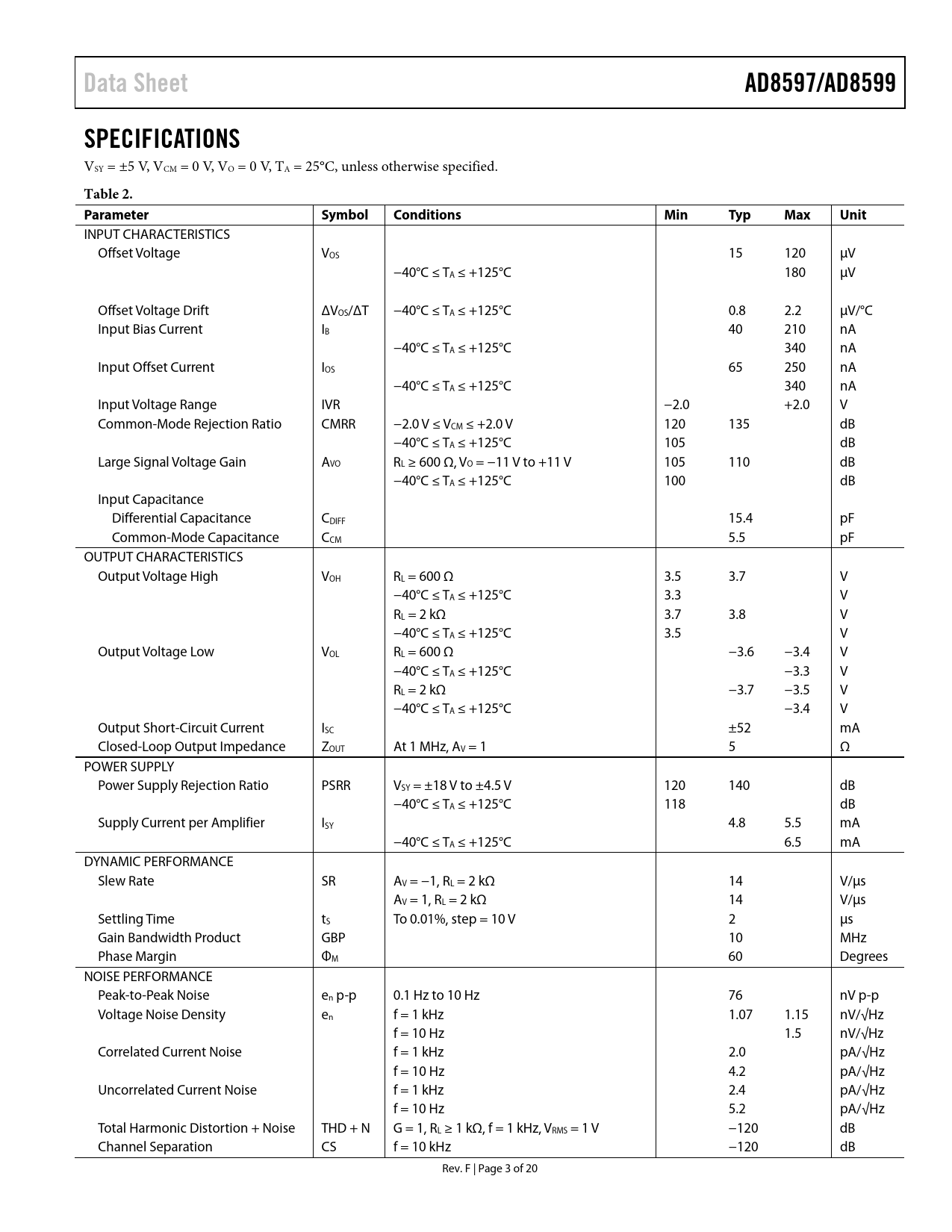

Data Sheet. AD8597/AD8599. SPECIFICATIONS. Table 2. Parameter. Symbol. Conditions. Min. Typ. Max. Unit

Data Sheet AD8597/AD8599 SPECIFICATIONS Table 2 Parameter Symbol Conditions Min Typ Max Unit

Línea de modelo para esta hoja de datos

Versión de texto del documento

Data Sheet AD8597/AD8599 SPECIFICATIONS
VSY = ±5 V, VCM = 0 V, VO = 0 V, TA = 25°C, unless otherwise specified.
Table 2. Parameter Symbol Conditions Min Typ Max Unit
INPUT CHARACTERISTICS Offset Voltage VOS 15 120 μV −40°C ≤ TA ≤ +125°C 180 μV Offset Voltage Drift ΔVOS/ΔT −40°C ≤ TA ≤ +125°C 0.8 2.2 μV/°C Input Bias Current IB 40 210 nA −40°C ≤ TA ≤ +125°C 340 nA Input Offset Current IOS 65 250 nA −40°C ≤ TA ≤ +125°C 340 nA Input Voltage Range IVR −2.0 +2.0 V Common-Mode Rejection Ratio CMRR −2.0 V ≤ VCM ≤ +2.0 V 120 135 dB −40°C ≤ TA ≤ +125°C 105 dB Large Signal Voltage Gain AVO RL ≥ 600 Ω, VO = −11 V to +11 V 105 110 dB −40°C ≤ TA ≤ +125°C 100 dB Input Capacitance Differential Capacitance CDIFF 15.4 pF Common-Mode Capacitance CCM 5.5 pF OUTPUT CHARACTERISTICS Output Voltage High VOH RL = 600 Ω 3.5 3.7 V −40°C ≤ TA ≤ +125°C 3.3 V RL = 2 kΩ 3.7 3.8 V −40°C ≤ TA ≤ +125°C 3.5 V Output Voltage Low VOL RL = 600 Ω −3.6 −3.4 V −40°C ≤ TA ≤ +125°C −3.3 V RL = 2 kΩ −3.7 −3.5 V −40°C ≤ TA ≤ +125°C −3.4 V Output Short-Circuit Current ISC ±52 mA Closed-Loop Output Impedance ZOUT At 1 MHz, AV = 1 5 Ω POWER SUPPLY Power Supply Rejection Ratio PSRR VSY = ±18 V to ±4.5 V 120 140 dB −40°C ≤ TA ≤ +125°C 118 dB Supply Current per Amplifier ISY 4.8 5.5 mA −40°C ≤ TA ≤ +125°C 6.5 mA DYNAMIC PERFORMANCE Slew Rate SR AV = −1, RL = 2 kΩ 14 V/μs AV = 1, RL = 2 kΩ 14 V/μs Settling Time tS To 0.01%, step = 10 V 2 μs Gain Bandwidth Product GBP 10 MHz Phase Margin ΦM 60 Degrees NOISE PERFORMANCE Peak-to-Peak Noise en p-p 0.1 Hz to 10 Hz 76 nV p-p Voltage Noise Density en f = 1 kHz 1.07 1.15 nV/√Hz f = 10 Hz 1.5 nV/√Hz Correlated Current Noise f = 1 kHz 2.0 pA/√Hz f = 10 Hz 4.2 pA/√Hz Uncorrelated Current Noise f = 1 kHz 2.4 pA/√Hz f = 10 Hz 5.2 pA/√Hz Total Harmonic Distortion + Noise THD + N G = 1, RL ≥ 1 kΩ, f = 1 kHz, VRMS = 1 V −120 dB Channel Separation CS f = 10 kHz −120 dB Rev. F | Page 3 of 20 Document Outline FEATURES APPLICATIONS PIN CONFIGURATIONS GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE POWER SEQUENCING ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS FUNCTIONAL OPERATION INPUT VOLTAGE RANGE OUTPUT PHASE REVERSAL NOISE AND SOURCE IMPEDANCE CONSIDERATIONS OUTLINE DIMENSIONS ORDERING GUIDE
