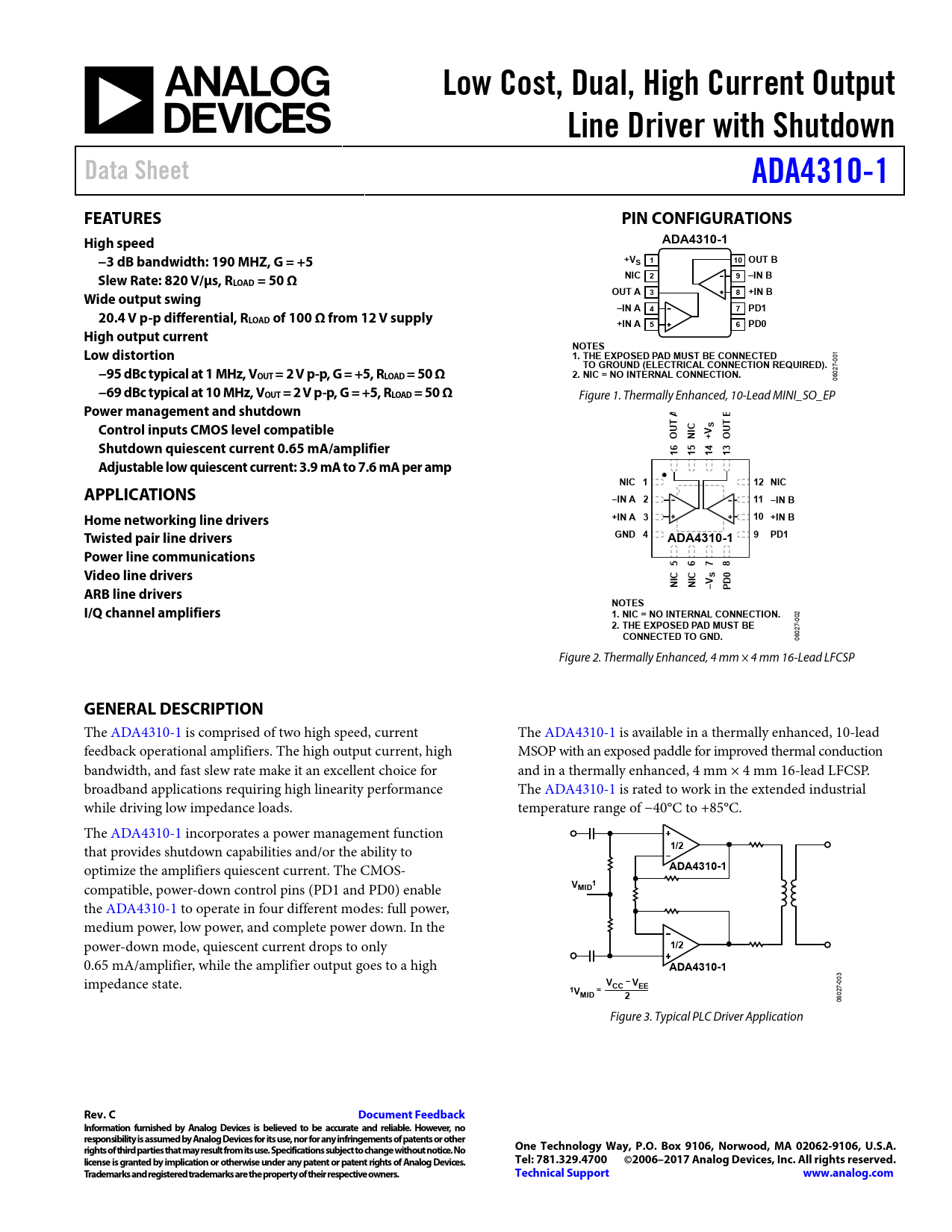

Low Cost, Dual, High Current Output. Line Driver with Shutdown. Data Sheet. ADA4310-1. FEATURES. PIN CONFIGURATIONS. High speed

Datasheet ADA4310-1 Analog Devices, Revisión: C

Línea de modelo para esta hoja de datos

Versión de texto del documento

Low Cost, Dual, High Current Output Line Driver with Shutdown Data Sheet ADA4310-1 FEATURES PIN CONFIGURATIONS High speed ADA4310-1 −3 dB bandwidth: 190 MHZ, G = +5 +VS 1 10 OUT B Slew Rate: 820 V/μs, R NIC 2 9 –IN B LOAD = 50 Ω Wide output swing OUT A 3 8 +IN B –IN A 4 7 PD1 20.4 V p-p differential, RLOAD of 100 Ω from 12 V supply +IN A 5 6 PD0 High output current NOTES Low distortion 1. THE EXPOSED PAD MUST BE CONNECTED
001
TO GROUND (ELECTRICAL CONNECTION REQUIRED). −95 dBc typical at 1 MHz, VOUT = 2 V p-p, G = +5, RLOAD = 50 Ω 2. NIC = NO INTERNAL CONNECTION.
06027-
−69 dBc typical at 10 MHz, VOUT = 2 V p-p, G = +5, RLOAD = 50 Ω
Figure 1. Thermally Enhanced, 10-Lead MINI_SO_EP
Power management and shutdown A T B Control inputs CMOS level compatible UT C S O NI +V OU Shutdown quiescent current 0.65 mA/amplifier 16 15 14 13 Adjustable low quiescent current: 3.9 mA to 7.6 mA per amp NIC 1 12 NIC APPLICATIONS −IN A 2 11 −IN B Home networking line drivers +IN A 3 10 +IN B Twisted pair line drivers GND 4 9 PD1 ADA4310-1 Power line communications 5 6 7 8 Video line drivers C C S NI NI –V ARB line drivers PD0 NOTES I/Q channel amplifiers 1. NIC = NO INTERNAL CONNECTION.
002
2. THE EXPOSED PAD MUST BE CONNECTED TO GND.
06027- Figure 2. Thermal y Enhanced, 4 mm × 4 mm 16-Lead LFCSP
GENERAL DESCRIPTION
The ADA4310-1 is comprised of two high speed, current The ADA4310-1 is available in a thermally enhanced, 10-lead feedback operational amplifiers. The high output current, high MSOP with an exposed paddle for improved thermal conduction bandwidth, and fast slew rate make it an excel ent choice for and in a thermally enhanced, 4 mm × 4 mm 16-lead LFCSP. broadband applications requiring high linearity performance The ADA4310-1 is rated to work in the extended industrial while driving low impedance loads. temperature range of −40°C to +85°C. The ADA4310-1 incorporates a power management function that provides shutdown capabilities and/or the ability to
1/2
optimize the amplifiers quiescent current. The CMOS-
ADA4310-1
compatible, power-down control pins (PD1 and PD0) enable
VMID1
the ADA4310-1 to operate in four different modes: full power, medium power, low power, and complete power down. In the power-down mode, quiescent current drops to only
1/2
0.65 mA/amplifier, while the amplifier output goes to a high
ADA4310-1
impedance state. 003
V 1V CC – VEE MID = 2
06027- Figure 3. Typical PLC Driver Application
