a

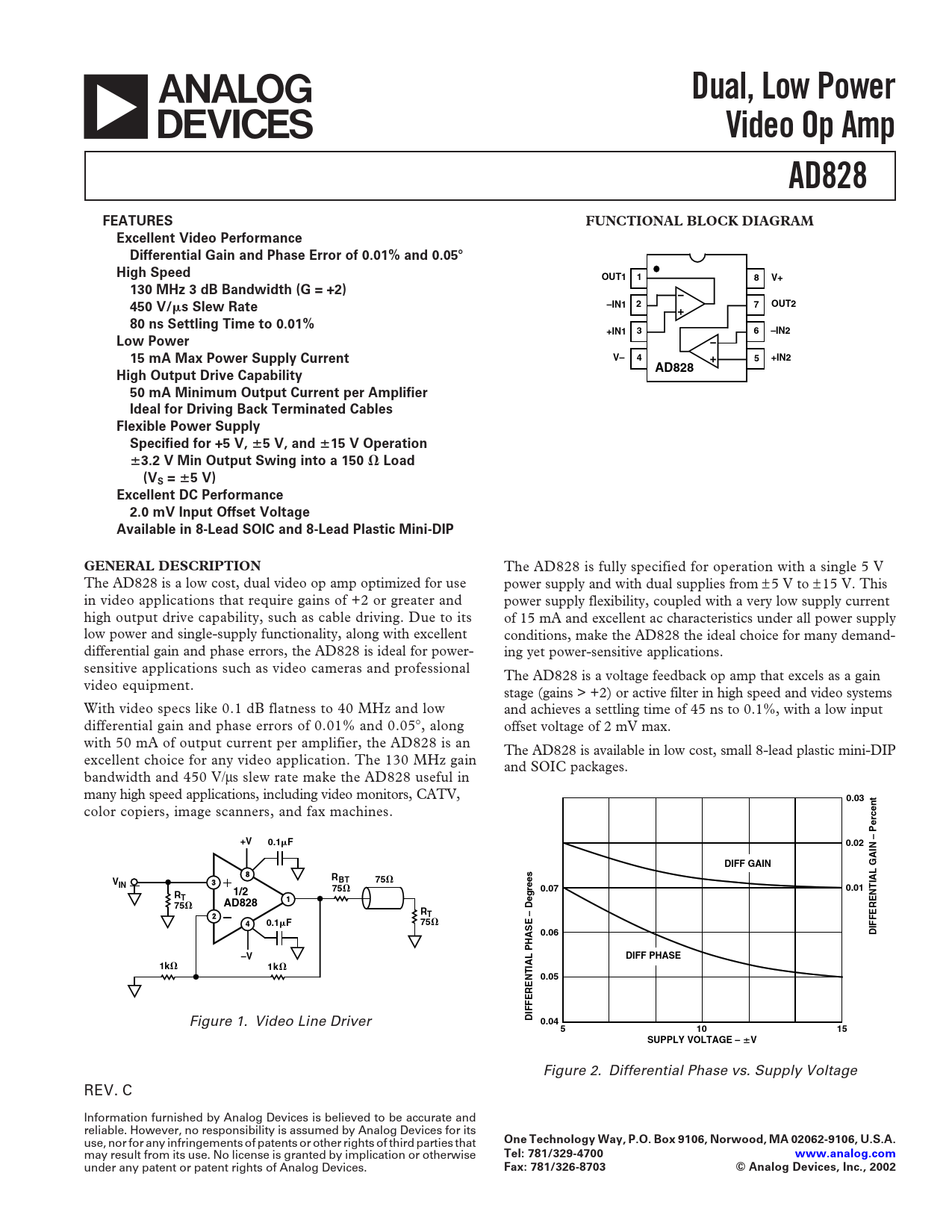

Dual, Low Power Video Op Amp AD828 FEATURES FUNCTIONAL BLOCK DIAGRAM Excellent Video Performance Differential Gain and Phase Error of 0.01% and 0.05 High Speed OUT1 1 8 V+ 130 MHz 3 dB Bandwidth (G = +2) 450 V/ s Slew Rate –IN1 2 7 OUT2 80 ns Settling Time to 0.01% +IN1 3 6 –IN2 Low Power 15 mA Max Power Supply Current V– 4 5 +IN2 AD828 High Output Drive Capability 50 mA Minimum Output Current per Amplifier Ideal for Driving Back Terminated Cables Flexible Power Supply Specified for +5 V, 5 V, and 15 V Operation 3.2 V Min Output Swing into a 150 Load (VS = 5 V) Excellent DC Performance 2.0 mV Input Offset Voltage Available in 8-Lead SOIC and 8-Lead Plastic Mini-DIP GENERAL DESCRIPTION
The AD828 is fully specified for operation with a single 5 V The AD828 is a low cost, dual video op amp optimized for use power supply and with dual supplies from ± 5 V to ± 15 V. This in video applications that require gains of +2 or greater and power supply flexibility, coupled with a very low supply current high output drive capability, such as cable driving. Due to its of 15 mA and excellent ac characteristics under all power supply low power and single-supply functionality, along with excellent conditions, make the AD828 the ideal choice for many demand- differential gain and phase errors, the AD828 is ideal for power- ing yet power-sensitive applications. sensitive applications such as video cameras and professional The AD828 is a voltage feedback op amp that excels as a gain video equipment. stage (gains > +2) or active filter in high speed and video systems With video specs like 0.1 dB flatness to 40 MHz and low and achieves a settling time of 45 ns to 0.1%, with a low input differential gain and phase errors of 0.01% and 0.05°, along offset voltage of 2 mV max. with 50 mA of output current per amplifier, the AD828 is an The AD828 is available in low cost, small 8-lead plastic mini-DIP excellent choice for any video application. The 130 MHz gain and SOIC packages. bandwidth and 450 V/µs slew rate make the AD828 useful in many high speed applications, including video monitors, CATV,
0.03
color copiers, image scanners, and fax machines.
+V 0.1 F 0.02 DIFF GAIN RBT 75 V IN 1/2 75 0.07 0.01 RT AD828 75 RT 0.1 F 75 0.06 DIFFERENTIAL GAIN – Percent –V DIFF PHASE 1k 1k 0.05
Figure 1. Video Line Driver
DIFFERENTIAL PHASE – Degrees 0.04 5 10 15 SUPPLY VOLTAGE – V
Figure 2. Differential Phase vs. Supply Voltage REV. C Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
may result from its use. No license is granted by implication or otherwise
Tel: 781/329-4700 www.analog.com
under any patent or patent rights of Analog Devices.
Fax: 781/326-8703 © Analog Devices, Inc., 2002
