Datasheet MAX6605 (Maxim)
| Fabricante | Maxim |
| Descripción | Low-Power Analog Temperature Sensor in SC70 Package |
| Páginas / Página | 6 / 1 — Low-Power Analog Temperature Sensor. in SC70 Package. MAX6605. General … |
| Formato / tamaño de archivo | PDF / 123 Kb |
| Idioma del documento | Inglés |
Low-Power Analog Temperature Sensor. in SC70 Package. MAX6605. General Description. Features. Low Current Consumption (10µA max)
Línea de modelo para esta hoja de datos
Versión de texto del documento

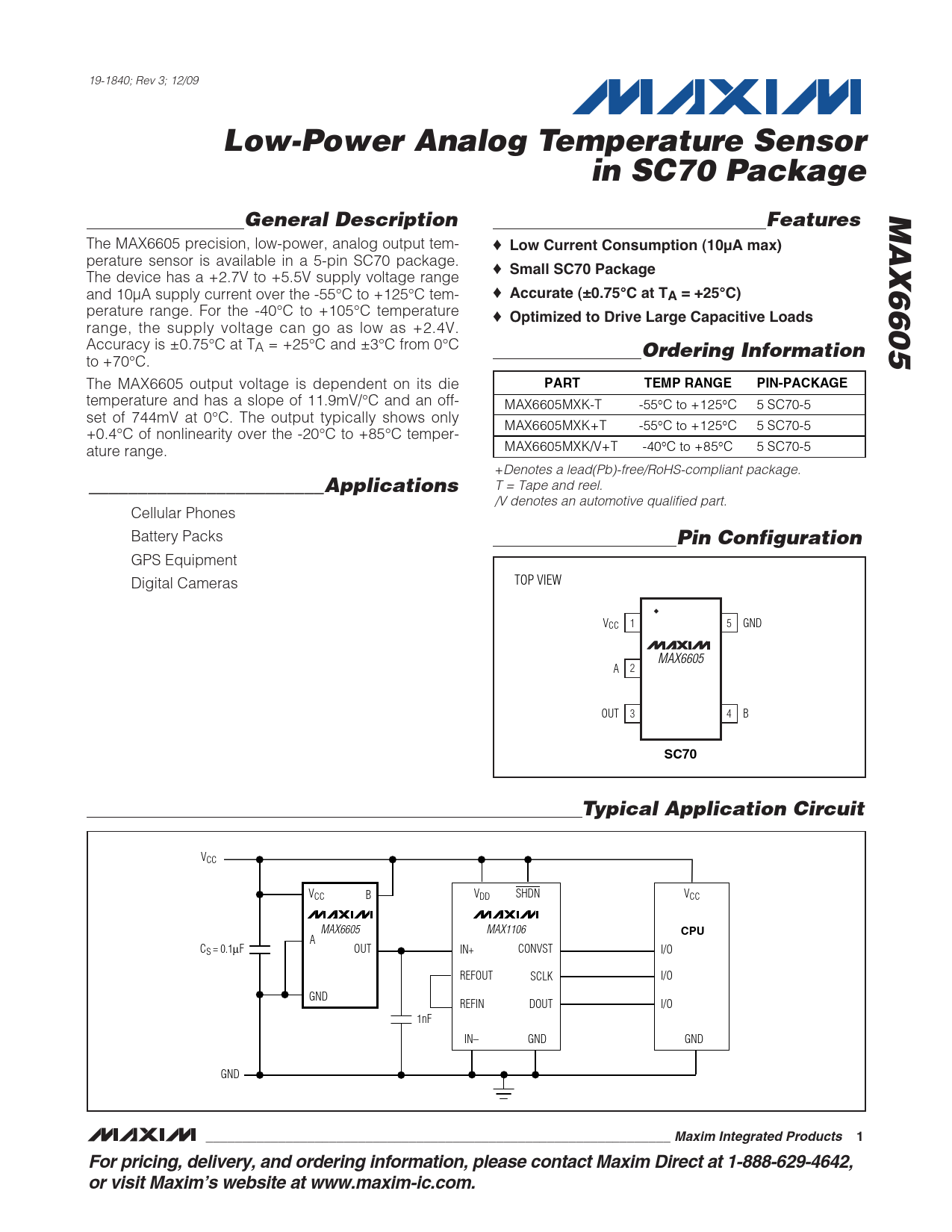

19-1840; Rev 3; 12/09
Low-Power Analog Temperature Sensor in SC70 Package MAX6605 General Description Features
The MAX6605 precision, low-power, analog output tem- ♦
Low Current Consumption (10µA max)
perature sensor is available in a 5-pin SC70 package. ♦
Small SC70 Package
The device has a +2.7V to +5.5V supply voltage range and 10µA supply current over the -55°C to +125°C tem- ♦
Accurate (±0.75°C at TA = +25°C)
perature range. For the -40°C to +105°C temperature ♦
Optimized to Drive Large Capacitive Loads
range, the supply voltage can go as low as +2.4V. Accuracy is ±0.75°C at TA = +25°C and ±3°C from 0°C
Ordering Information
to +70°C. The MAX6605 output voltage is dependent on its die
PART TEMP RANGE PIN-PACKAGE
temperature and has a slope of 11.9mV/°C and an off- MAX6605MXK-T -55°C to +125°C 5 SC70-5 set of 744mV at 0°C. The output typically shows only MAX6605MXK+T -55°C to +125°C 5 SC70-5 +0.4°C of nonlinearity over the -20°C to +85°C temper- ature range. MAX6605MXK/V+T -40°C to +85°C 5 SC70-5 +Denotes a lead(Pb)-free/RoHS-compliant package.
________________________Applications
T = Tape and reel. /V denotes an automotive qualified part. Cellular Phones Battery Packs
Pin Configuration
GPS Equipment Digital Cameras TOP VIEW VCC 1 5 GND MAX6605 A 2 OUT 3 4 B
SC70 Typical Application Circuit
VCC VCC B VDD SHDN VCC MAX6605 MAX1106
CPU
A CS = 0.1μF OUT IN+ CONVST I/O REFOUT SCLK I/O GND REFIN DOUT I/O 1nF IN– GND GND GND
________________________________________________________________ Maxim Integrated Products 1 For pricing, delivery, and ordering information, please contact Maxim Direct at 1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.
Low-Power Analog Temperature Sensor in SC70 Package MAX6605 General Description Features
The MAX6605 precision, low-power, analog output tem- ♦
Low Current Consumption (10µA max)
perature sensor is available in a 5-pin SC70 package. ♦
Small SC70 Package
The device has a +2.7V to +5.5V supply voltage range and 10µA supply current over the -55°C to +125°C tem- ♦
Accurate (±0.75°C at TA = +25°C)
perature range. For the -40°C to +105°C temperature ♦
Optimized to Drive Large Capacitive Loads
range, the supply voltage can go as low as +2.4V. Accuracy is ±0.75°C at TA = +25°C and ±3°C from 0°C
Ordering Information
to +70°C. The MAX6605 output voltage is dependent on its die
PART TEMP RANGE PIN-PACKAGE
temperature and has a slope of 11.9mV/°C and an off- MAX6605MXK-T -55°C to +125°C 5 SC70-5 set of 744mV at 0°C. The output typically shows only MAX6605MXK+T -55°C to +125°C 5 SC70-5 +0.4°C of nonlinearity over the -20°C to +85°C temper- ature range. MAX6605MXK/V+T -40°C to +85°C 5 SC70-5 +Denotes a lead(Pb)-free/RoHS-compliant package.
________________________Applications
T = Tape and reel. /V denotes an automotive qualified part. Cellular Phones Battery Packs
Pin Configuration
GPS Equipment Digital Cameras TOP VIEW VCC 1 5 GND MAX6605 A 2 OUT 3 4 B
SC70 Typical Application Circuit
VCC VCC B VDD SHDN VCC MAX6605 MAX1106
CPU
A CS = 0.1μF OUT IN+ CONVST I/O REFOUT SCLK I/O GND REFIN DOUT I/O 1nF IN– GND GND GND
________________________________________________________________ Maxim Integrated Products 1 For pricing, delivery, and ordering information, please contact Maxim Direct at 1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.
