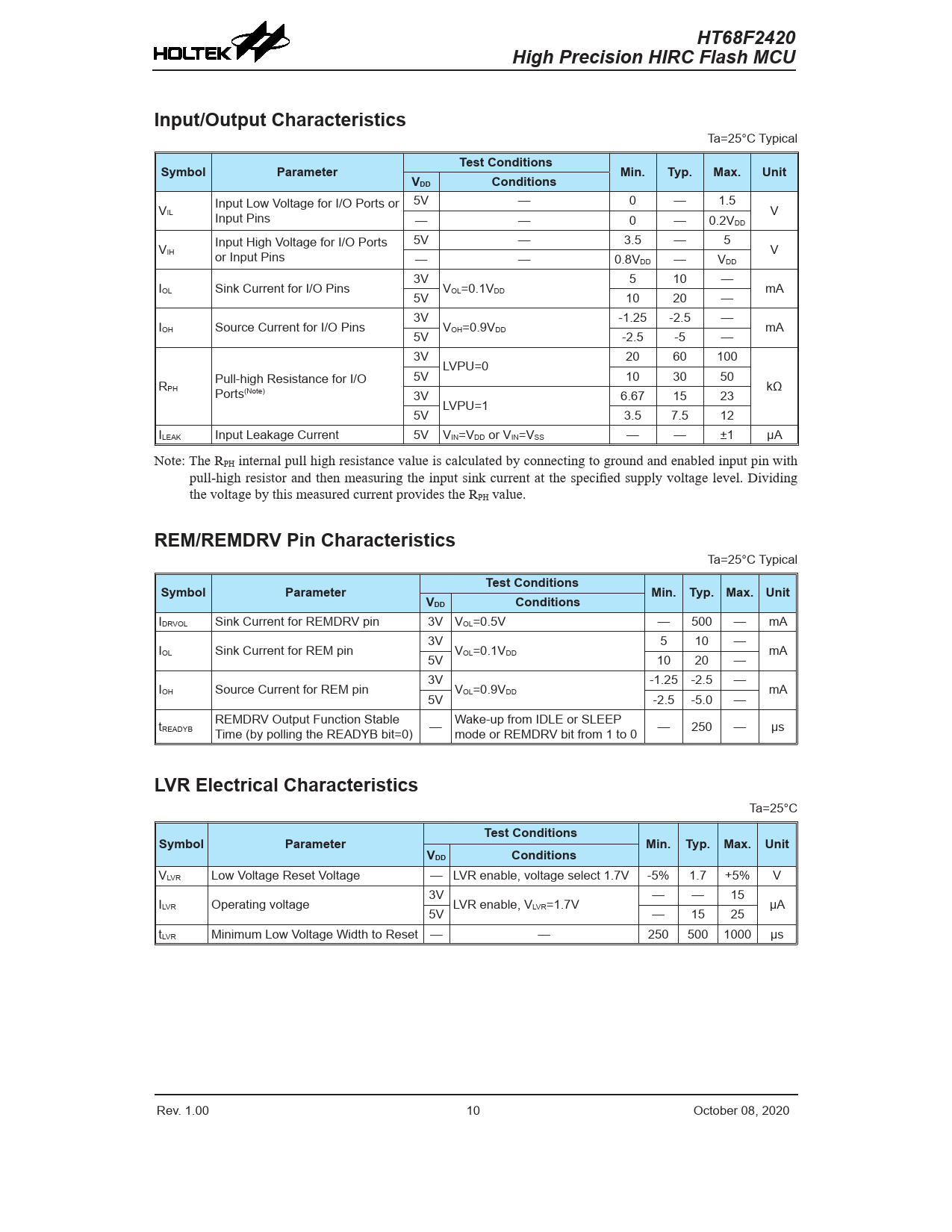

HT68F2420. High Precision HIRC Flash MCU. Input/Output Characteristics. Test Conditions. Symbol. Parameter. Min. Typ. Max. Unit. VDD

HT68F2420 High Precision HIRC Flash MCU Input/Output Characteristics Test Conditions Symbol Parameter Min Typ Max Unit VDD

Línea de modelo para esta hoja de datos

Versión de texto del documento

HT68F2420 HT68F2420 High Precision HIRC Flash MCU High Precision HIRC Flash MCU Input/Output Characteristics
Ta=25°C Typical
Test Conditions Symbol Parameter Min. Typ. Max. Unit VDD Conditions
5V — 0 — 1.5 V Input Low Voltage for I/O Ports or IL Input Pins V — — 0 — 0.2VDD 5V — 3.5 — 5 V Input High Voltage for I/O Ports IH or Input Pins V — — 0.8VDD — VDD 3V 5 10 — IOL Sink Current for I/O Pins VOL=0.1VDD mA 5V 10 20 — 3V -1.25 -2.5 — IOH Source Current for I/O Pins VOH=0.9VDD mA 5V -2.5 -5 — 3V 20 60 100 LVPU=0 5V 10 30 50 R Pull-high Resistance for I/O PH Ports(Note) kΩ 3V 6.67 15 23 LVPU=1 5V 3.5 7.5 12 ILEAK Input Leakage Current 5V VIN=VDD or VIN=VSS — — ±1 μA Note: The RPH internal pull high resistance value is calculated by connecting to ground and enabled input pin with pull-high resistor and then measuring the input sink current at the specified supply voltage level. Dividing the voltage by this measured current provides the RPH value.
REM/REMDRV Pin Characteristics
Ta=25°C Typical
Test Conditions Symbol Parameter Min. Typ. Max. Unit VDD Conditions
IDRVOL Sink Current for REMDRV pin 3V VOL=0.5V — 500 — mA 3V 5 10 — IOL Sink Current for REM pin VOL=0.1VDD mA 5V 10 20 — 3V -1.25 -2.5 — IOH Source Current for REM pin VOL=0.9VDD mA 5V -2.5 -5.0 — t REMDRV Output Function Stable READYB Time (by polling the READYB bit=0) — Wake-up from IDLE or SLEEP mode or REMDRV bit from 1 to 0 — 250 — µs
LVR Electrical Characteristics
Ta=25°C
Test Conditions Symbol Parameter Min. Typ. Max. Unit VDD Conditions
VLVR Low Voltage Reset Voltage — LVR enable, voltage select 1.7V -5% 1.7 +5% V 3V — — 15 ILVR Operating voltage LVR enable, VLVR=1.7V μA 5V — 15 25 tLVR Minimum Low Voltage Width to Reset — — 250 500 1000 μs Rev. 1.00 10 October 08, 2020 Rev. 1.00 11 October 08, 2020 Document Outline Features CPU Features Peripheral Features General Description Block Diagram Pin Assignment Pin Description Absolute Maximum Ratings D.C. Characteristics Operating Voltage Characteristics Operating Current Characteristics Standby Current Characteristics A.C. Characteristics Internal Oscillator Characteristics System Start Up Time Characteristics Input/Output Characteristics REM/REMDRV Pin Characteristics LVR Electrical Characteristics Power on Reset Characteristics System Architecture Clocking and Pipelining Program Counter Stack Arithmetic and Logic Unit – ALU Flash Program Memory Structure Special Vectors Look-up Table Table Program Example In Circuit Programming – ICP On-Chip Debug Support – OCDS Data Memory Structure General Purpose Data Memory Special Purpose Data Memory Special Function Register Description Indirect Addressing Registers – IAR0 Memory Pointers – MP0 Accumulator – ACC Program Counter Low Register – PCL Look-up Table Registers – TBLP, TBLH Status Register – STATUS Oscillators Oscillator Overview System Clock Configurations Internal RC Oscillator – HIRC Internal 32kHz Oscillator – LIRC Operating Modes and System Clocks System Clocks System Operation Modes Control Register Operating Mode Switching Standby Current Considerations Wake-up Watchdog Timer Watchdog Timer Clock Source Watchdog Timer Control Register Watchdog Timer Operation Reset and Initialisation Reset Functions Reset Initial Conditions Input/Output Ports Pull-high Resistors I/O Pin Wake-up I/O Port Control Registers I/O Pin Structures Programming Considerations 9-bit Timer with Carrier Output Timer and Carrier Output Conctrol Register Timer Operation Carrier Output Carrier Output Pins Interrupts Interrupt Register Interrupt Operation Time Base Interrupt Interrupt Wake-up Function Programming Considerations Application Circuits Instruction Set Introduction Instruction Timing Moving and Transferring Data Arithmetic Operations Logical and Rotate Operation Branches and Control Transfer Bit Operations Table Read Operations Other Operations Instruction Set Summary Table Conventions Instruction Definition Package Information 8-pin SOP (150mil) Outline Dimensions 16-pin NSOP (150mil) Outline Dimensions 20-pin NSOP (150mil) Outline Dimensions 20-pin SSOP (150mil) Outline Dimensions
