Datasheet MYTNA1R84RELA2RA (Murata) - 5
| Fabricante | Murata |
| Descripción | UltraBK 4A DC–DC Converter Module |
| Páginas / Página | 26 / 5 — MYTNA1R84RELA2RA. PARAMETER. SYMBOL. CONDITIONS. MIN. TYP. MAX. UNITS. … |
| Formato / tamaño de archivo | PDF / 1.5 Mb |
| Idioma del documento | Inglés |
MYTNA1R84RELA2RA. PARAMETER. SYMBOL. CONDITIONS. MIN. TYP. MAX. UNITS. (3)(5). (4). (2)(3). (2). Table 4. Electrical Characteristics
Línea de modelo para esta hoja de datos
Versión de texto del documento
MYTNA1R84RELA2RA
Document Category: Datasheet

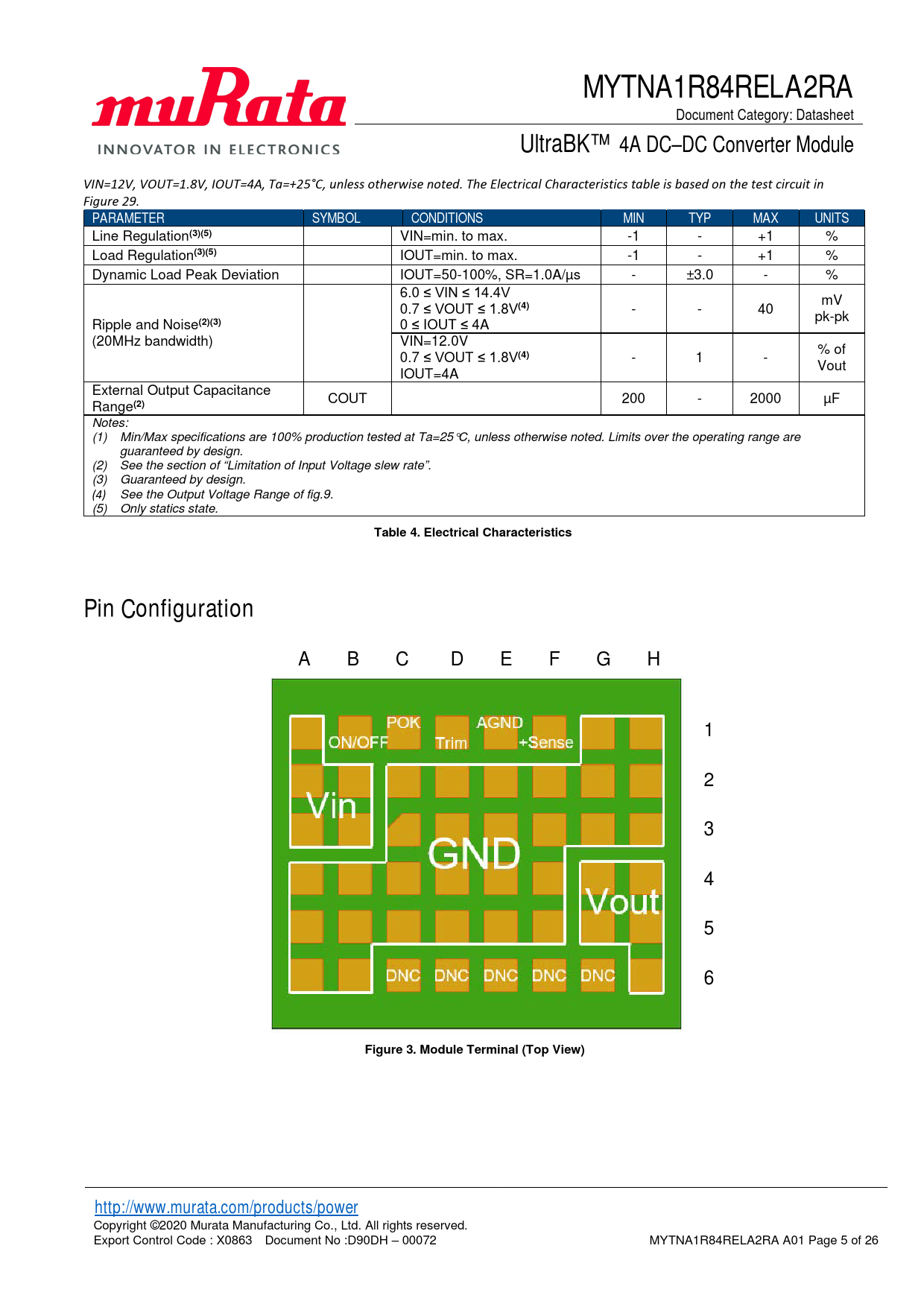

UltraBK™ 4A DC–DC Converter Module VIN=12V, VOUT=1.8V, IOUT=4A, Ta=+25°C, unless otherwise noted. The Electrical Characteristics table is based on the test circuit in Figure 29.
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
Line Regulation
(3)(5)
VIN=min. to max. -1 - +1 % Load Regulation
(3)(5)
IOUT=min. to max. -1 - +1 % Dynamic Load Peak Deviation IOUT=50-100%, SR=1.0A/µs - ±3.0 - % 6.0 ≤ VIN ≤ 14.4V mV 0.7 ≤ VOUT ≤ 1.8V
(4)
- - 40 pk-pk Ripple and Noise
(2)(3)
0 ≤ IOUT ≤ 4A (20MHz bandwidth) VIN=12.0V % of 0.7 ≤ VOUT ≤ 1.8V
(4)
- 1 - Vout IOUT=4A External Output Capacitance COUT 200 - 2000 µF Range
(2)
Notes: (1) Min/Max specifications are 100% production tested at Ta=25°C, unless otherwise noted. Limits over the operating range are guaranteed by design. (2) See the section of “Limitation of Input Voltage slew rate”. (3) Guaranteed by design. (4) See the Output Voltage Range of fig.9. (5) Only statics state.
Table 4. Electrical Characteristics Pin Configuration
A B C D E F G H 1 2 3 4 5 6
Figure 3. Module Terminal (Top View) http://www.murata.com/products/power
Copyright ©2020 Murata Manufacturing Co., Ltd. All rights reserved. Export Control Code : X0863 Document No :D90DH – 00072 MYTNA1R84RELA2RA A01 Page 5 of 26 Document Outline Product Description Features Typical Applications Efficiency Simplified Application Circuit Absolute Maximum Ratings(1)(2) Recommended Operating Conditions(1) Package Thermal Characteristics(1)(2) Electrical Characteristics Pin Configuration Pin Descriptions Functional Block Diagram Typical Performance Characteristics Thermal Deratings (Reference Data) Output Voltage Range Limitation of Input Voltage Slew rate Detailed Description Output Voltage Adjustment Resistor Trim Equation Output Voltage Remote Sense Function Remote Enable Function Soft start Function Power Good Operation Protections Over Current Protection and Short Circuit Protection Over Temperature Protection Soldering Guidelines Pb-free Solder Processes Dry Pack Information Application Performance Transient Performance Test Circuit Component Selection Input Fuse Input Capacitor Output Capacitor Packaging Information Moisture Sensitivity Level Package Drawing Recommended Board Land Pattern (Top View) Top Marking Specification Application Circuit Application Circuit Part List (Recommended) Application Board Example Tape and Reel Specification Order Codes Notices CAUTION Limitation of Applications Note Product Specification Sales contact Disclaimers Patent Statement Copyright and Trademark
