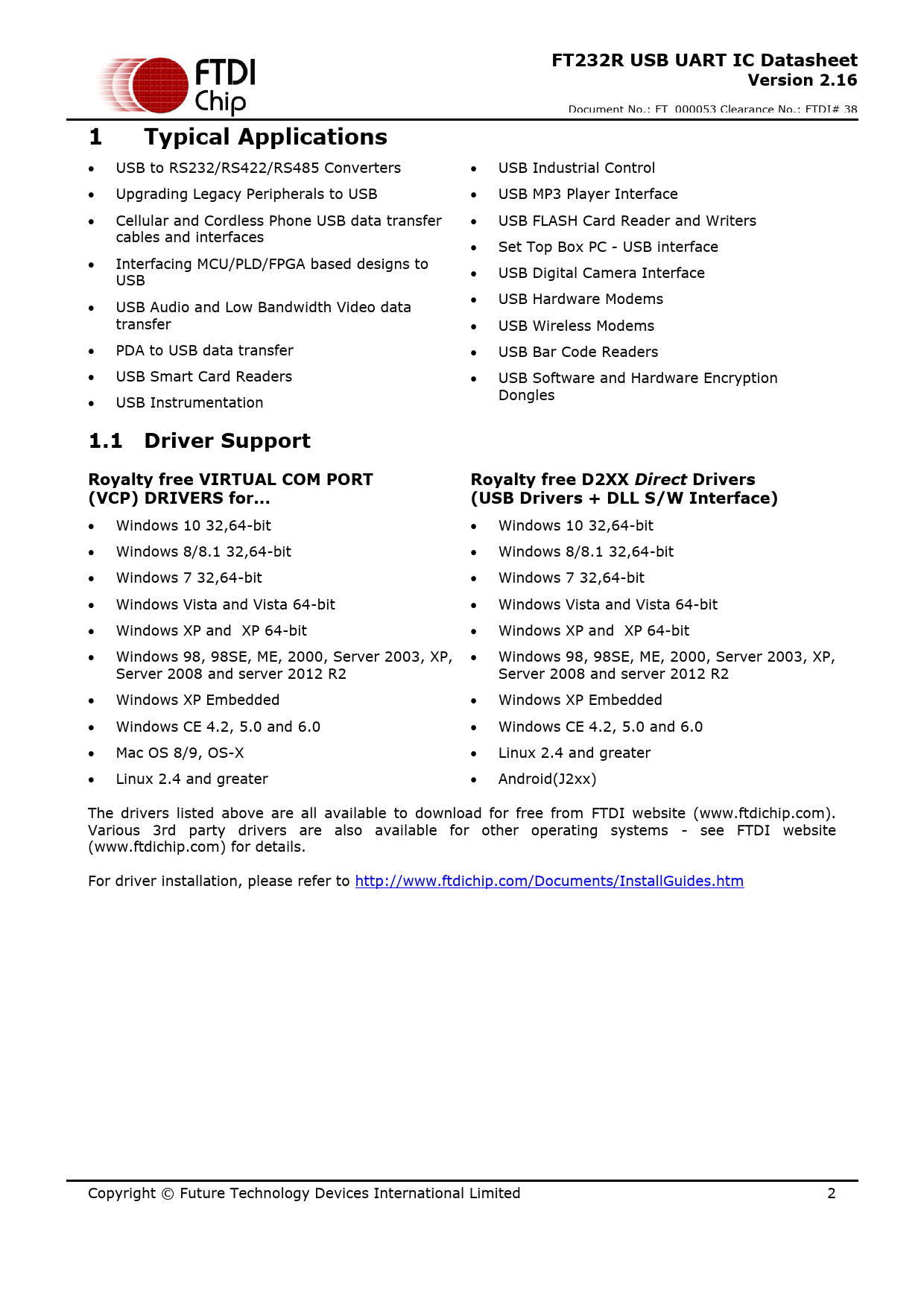

FT232R USB UART IC Datasheet Version 2.16
Document No.: FT_000053 Clearance No.: FTDI# 38
1 Typical Applications
USB to RS232/RS422/RS485 Converters USB Industrial Control Upgrading Legacy Peripherals to USB USB MP3 Player Interface Cellular and Cordless Phone USB data transfer USB FLASH Card Reader and Writers cables and interfaces Set Top Box PC - USB interface Interfacing MCU/PLD/FPGA based designs to USB USB Digital Camera Interface USB Hardware Modems USB Audio and Low Bandwidth Video data transfer USB Wireless Modems PDA to USB data transfer USB Bar Code Readers USB Smart Card Readers USB Software and Hardware Encryption Dongles USB Instrumentation
1.1 Driver Support Royalty free VIRTUAL COM PORT Royalty free D2XX Direct Drivers (VCP) DRIVERS for... (USB Drivers + DLL S/W Interface)
Windows 10 32,64-bit Windows 10 32,64-bit Windows 8/8.1 32,64-bit Windows 8/8.1 32,64-bit Windows 7 32,64-bit Windows 7 32,64-bit Windows Vista and Vista 64-bit Windows Vista and Vista 64-bit Windows XP and XP 64-bit Windows XP and XP 64-bit Windows 98, 98SE, ME, 2000, Server 2003, XP, Windows 98, 98SE, ME, 2000, Server 2003, XP, Server 2008 and server 2012 R2 Server 2008 and server 2012 R2 Windows XP Embedded Windows XP Embedded Windows CE 4.2, 5.0 and 6.0 Windows CE 4.2, 5.0 and 6.0 Mac OS 8/9, OS-X Linux 2.4 and greater Linux 2.4 and greater Android(J2xx) The drivers listed above are all available to download for free from FTDI website (www.ftdichip.com). Various 3rd party drivers are also available for other operating systems - see FTDI website (www.ftdichip.com) for details. For driver installation, please refer to http://www.ftdichip.com/Documents/InstallGuides.htm Copyright © Future Technology Devices International Limited 2 Document Outline 1 Typical Applications 1.1 Driver Support 1.2 Part Numbers 1.3 USB Compliant 2 FT232R Block Diagram 3 Device Pin Out and Signal Description 3.1 28-LD SSOP Package 3.2 SSOP Package Pin Out Description 3.3 QFN-32 Package 3.4 QFN-32 Package Signal Description 3.5 CBUS Signal Options 4 Function Description 4.1 Key Features 4.2 Functional Block Descriptions 5 Devices Characteristics and Ratings 5.1 Absolute Maximum Ratings 5.2 DC Characteristics 5.3 EEPROM Reliability Characteristics 5.4 Internal Clock Characteristics 5.5 Thermal Characteristics 6 USB Power Configurations 6.1 USB Bus Powered Configuration 6.2 Self Powered Configuration 6.3 USB Bus Powered with Power Switching Configuration 6.4 USB Bus Powered with Selectable External Logic Supply 7 Application Examples 7.1 USB to RS232 Converter 7.2 USB to RS485 Converter 7.3 USB to RS422 Converter 7.4 USB to MCU UART Interface 7.5 LED Interface 7.6 Using the External Oscillator 8 Internal EEPROM Configuration 9 Package Parameters 9.1 SSOP-28 Package Dimensions 9.2 QFN-32 Package Dimensions 9.3 Solder Reflow Profile 10 Alternative Parts 11 Contact Information Appendix A – References Document References Acronyms and Abbreviations Appendix B – List of Figures and Tables List of Figures List of Tables Appendix C – Revision History
