Continental. Device. India. Pvt. Limited. An. IATF. 16949,. ISO9001. and. ISO. 14001. Certified. Company. NPN. PLANAR. SWITCHING. TRANSISTORS. 2N2221. 2N2222

Datasheet 2N2222 CDIL

Línea de modelo para esta hoja de datos

Versión de texto del documento

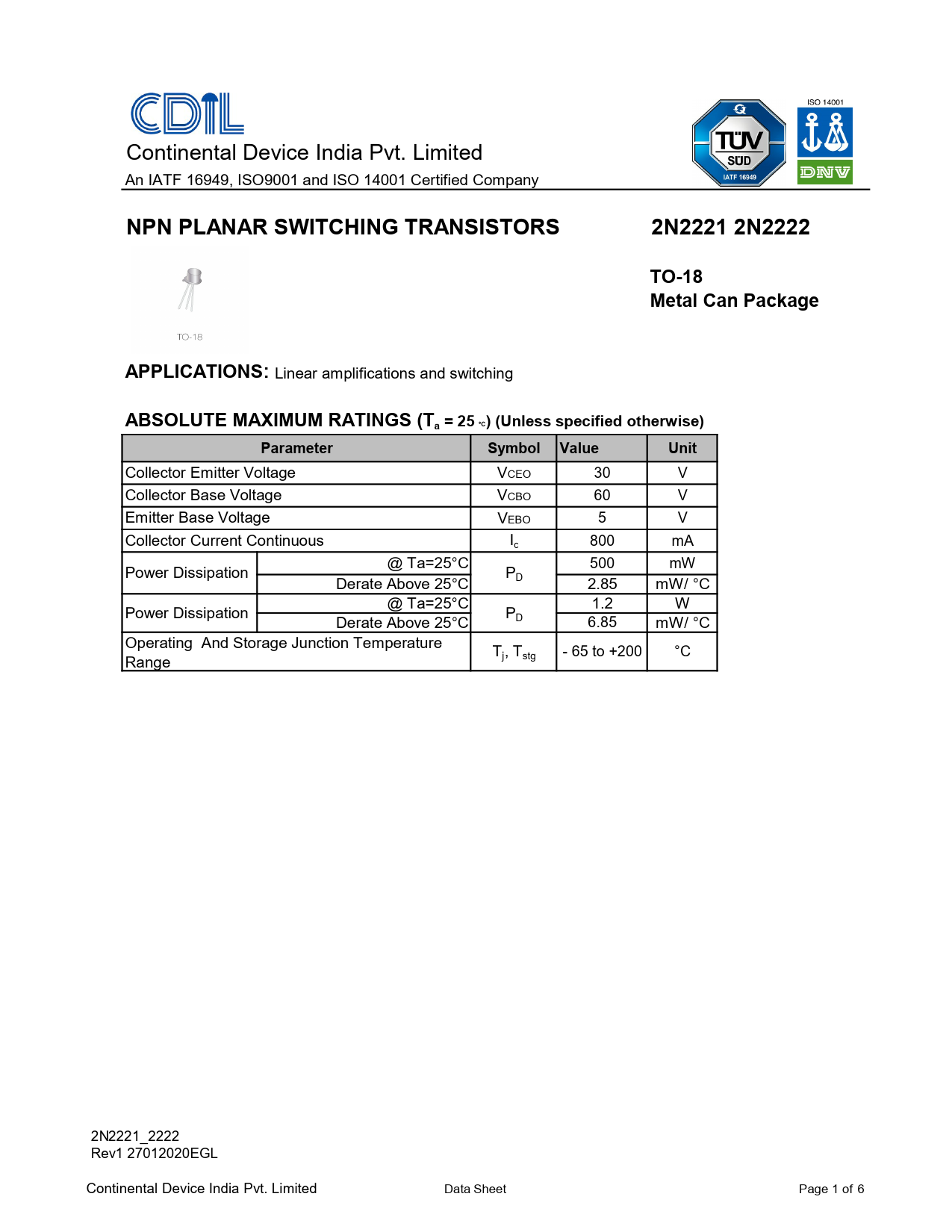

Continental Device India Pvt. Limited An IATF 16949, ISO9001 and ISO 14001 Certified Company NPN PLANAR SWITCHING TRANSISTORS 2N2221 2N2222 TO-18 Metal Can Package APPLICATIONS: Linear amplifications and switching ABSOLUTE MAXIMUM RATINGS (Ta = 25 °C) (Unless specified otherwise) Parameter Symbol Value Unit Col ector Emitter Voltage VCEO 30 V Col ector Base Voltage VCBO 60 V Emitter Base Voltage VEBO 5 V Col ector Current Continuous Ic 800 mA @ Ta=25°C 500 mW Power Dissipation PD Derate Above 25°C 2.85 mW/ °C @ Ta=25°C 1.2 W Power Dissipation PD Derate Above 25°C 6.85 mW/ °C Operating And Storage Junction Temperature T Range j, Tstg - 65 to +200 °C 2N2221_2222 Rev1 27012020EGL Continental Device India Pvt. Limited Data Sheet Page 1 of 6
