Datasheet MAX4475, MAX4476, MAX4477, MAX4478, MAX4488, MAX4489 (Maxim) - 5
| Fabricante | Maxim |
| Descripción | SOT23, Low-Noise, Low-Distortion, Wide-Band, Rail-to-Rail Op Amps |
| Páginas / Página | 17 / 5 — DC Electrical Characteristics. PARAMETER. SYMBOL. CONDITIONS. MIN. TYP. … |
| Formato / tamaño de archivo | PDF / 2.5 Mb |
| Idioma del documento | Inglés |
DC Electrical Characteristics. PARAMETER. SYMBOL. CONDITIONS. MIN. TYP. MAX. UNITS
Línea de modelo para esta hoja de datos
- MAX4475ASA+ MAX4475ASA+T MAX4475ATT+ MAX4475ATT+T MAX4475AUA+ MAX4475AUA+T MAX4475AUT+ MAX4475AUT+T MAX4475AUT/V+ MAX4475AUT/V+T
- MAX4477ASA MAX4477ASA+ MAX4477ASA+T MAX4477AUA MAX4477AUA+ MAX4477AUA+T MAX4477AUA/V+ MAX4477AUA/V+T
Versión de texto del documento

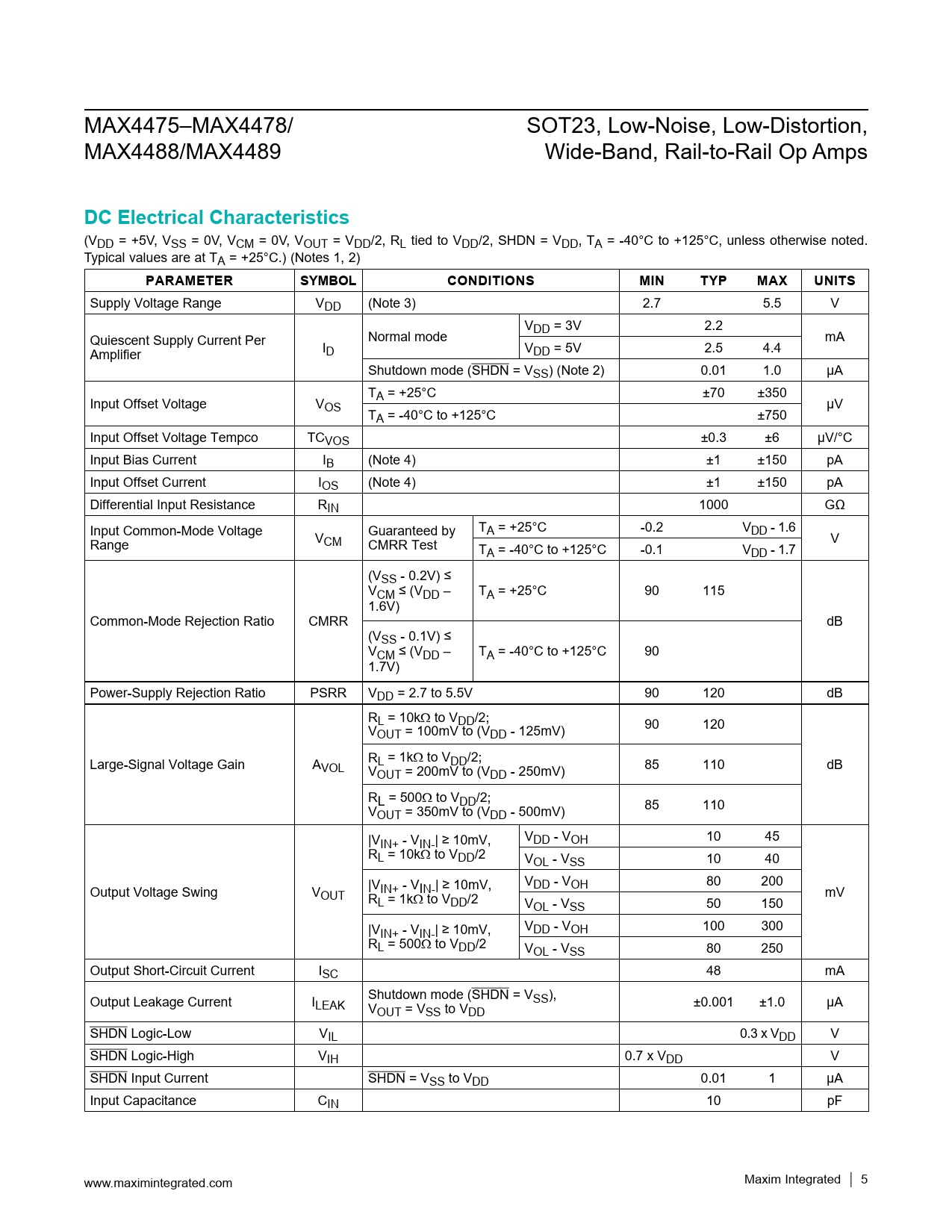

MAX4475–MAX4478/ SOT23, Low-Noise, Low-Distortion, MAX4488/MAX4489 Wide-Band, Rail-to-Rail Op Amps
DC Electrical Characteristics
(VDD = +5V, VSS = 0V, VCM = 0V, VOUT = VDD/2, RL tied to VDD/2, SHDN = VDD, TA = -40°C to +125°C, unless otherwise noted. Typical values are at TA = +25°C.) (Notes 1, 2)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
Supply Voltage Range VDD (Note 3) 2.7 5.5 V VDD = 3V 2.2 Quiescent Supply Current Per Normal mode mA Amplifier ID VDD = 5V 2.5 4.4 Shutdown mode (SHDN = VSS) (Note 2) 0.01 1.0 µA T Input Offset Voltage V A = +25°C ±70 ±350 OS µV TA = -40°C to +125°C ±750 Input Offset Voltage Tempco TCVOS ±0.3 ±6 µV/°C Input Bias Current IB (Note 4) ±1 ±150 pA Input Offset Current IOS (Note 4) ±1 ±150 pA Differential Input Resistance RIN 1000 GΩ Input Common-Mode Voltage Guaranteed by TA = +25°C -0.2 VDD - 1.6 Range VCM CMRR Test V TA = -40°C to +125°C -0.1 VDD - 1.7 (VSS - 0.2V) ≤ VCM ≤ (VDD – TA = +25°C 90 115 1.6V) Common-Mode Rejection Ratio CMRR dB (VSS - 0.1V) ≤ VCM ≤ (VDD – TA = -40°C to +125°C 90 1.7V) Power-Supply Rejection Ratio PSRR VDD = 2.7 to 5.5V 90 120 dB RL = 10kΩ to VDD/2; VOUT = 100mV to (VDD - 125mV) 90 120 Large-Signal Voltage Gain A R VOL L = 1kΩ to VDD/2; dB VOUT = 200mV to (VDD - 250mV) 85 110 RL = 500Ω to VDD/2; VOUT = 350mV to (VDD - 500mV) 85 110 |VIN+ - VIN-| ≥ 10mV, VDD - VOH 10 45 RL = 10kΩ to VDD/2 VOL - VSS 10 40 V Output Voltage Swing V |V DD - VOH 80 200 OUT IN+ - VIN-| ≥ 10mV, mV RL = 1kΩ to VDD/2 VOL - VSS 50 150 |VIN+ - VIN-| ≥ 10mV, VDD - VOH 100 300 RL = 500Ω to VDD/2 VOL - VSS 80 250 Output Short-Circuit Current ISC 48 mA Output Leakage Current I Shutdown mode (SHDN = V LEAK SS), V ±0.001 ±1.0 µA OUT = VSS to VDD SHDN Logic-Low VIL 0.3 x VDD V SHDN Logic-High VIH 0.7 x VDD V SHDN Input Current SHDN = VSS to VDD 0.01 1 µA Input Capacitance CIN 10 pF www.maximintegrated.com Maxim Integrated │
