Datasheet RV-3032-C7 (Micro Crystal) - 2

FabricanteMicro Crystal
DescripciónReal-Time Clock Module with I2C-Bus
Páginas / Página2 / 2 — ELECTRICAL CHARACTERISTICS. Symbol. Condition. Min. Typ. Max Unit. AT …
Formato / tamaño de archivoPDF / 892 Kb
Idioma del documentoInglés

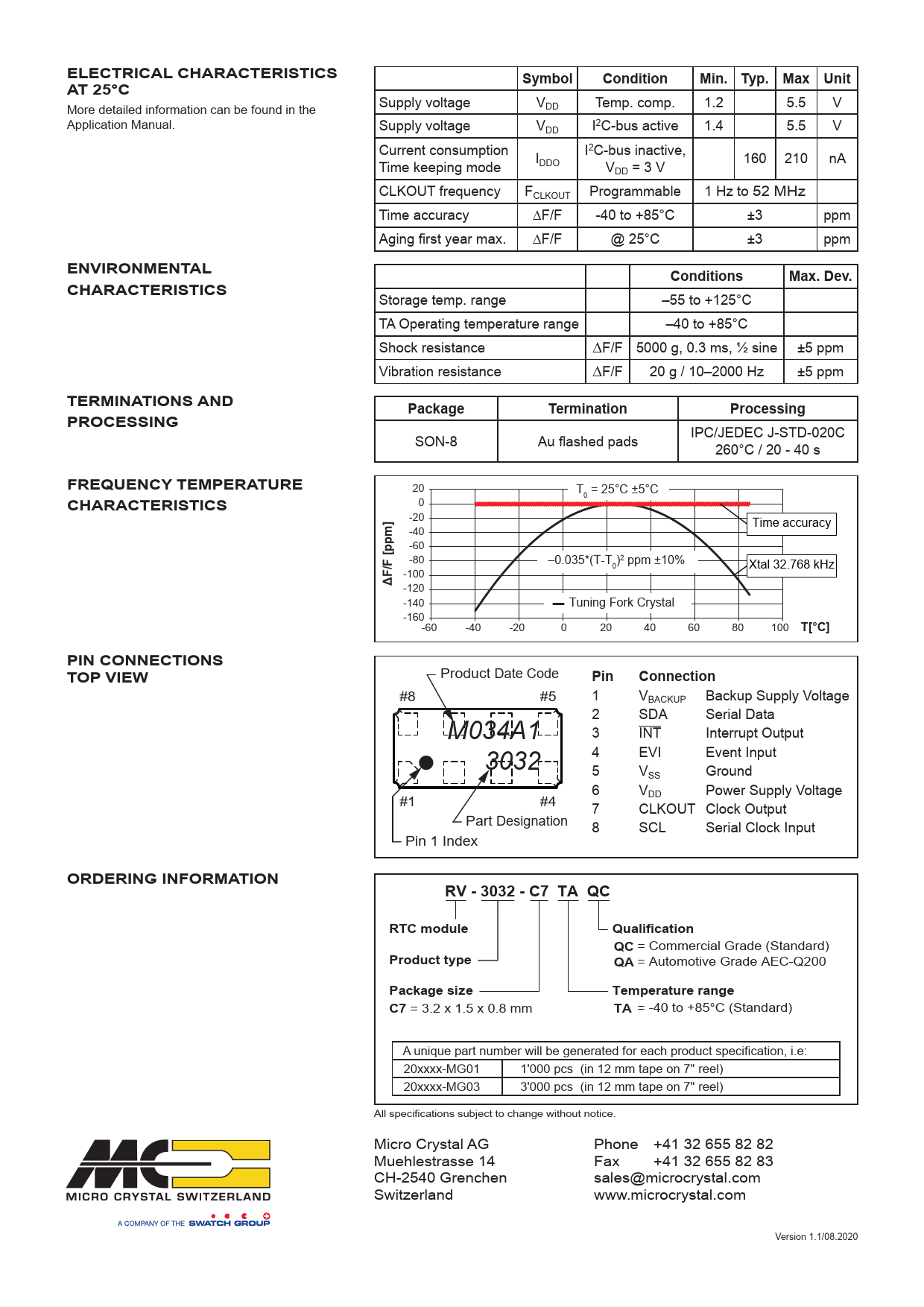

ELECTRICAL CHARACTERISTICS. Symbol. Condition. Min. Typ. Max Unit. AT 25°C. ENVIRONMENTAL. Conditions. Max. Dev. CHARACTERISTICS

ELECTRICAL CHARACTERISTICS Symbol Condition Min Typ Max Unit AT 25°C ENVIRONMENTAL Conditions Max Dev CHARACTERISTICS

Línea de modelo para esta hoja de datos

Versión de texto del documento

ELECTRICAL CHARACTERISTICS Symbol Condition Min. Typ. Max Unit AT 25°C
More detailed information can be found in the Supply voltage VDD Temp. comp. 1.2 5.5 V Application Manual. Supply voltage VDD I2C-bus active 1.4 5.5 V Current consumption I2C-bus inactive, Time keeping mode IDDO VDD = 3 V 160 210 nA CLKOUT frequency FCLKOUT Programmable 1 Hz to 52 MHz Time accuracy ΔF/F -40 to +85°C ±3 ppm Aging first year max. ΔF/F @ 25°C ±3 ppm
ENVIRONMENTAL Conditions Max. Dev. CHARACTERISTICS
Storage temp. range –55 to +125°C TA Operating temperature range –40 to +85°C Shock resistance ΔF/F 5000 g, 0.3 ms, ½ sine ±5 ppm Vibration resistance ΔF/F 20 g / 10–2000 Hz ±5 ppm
TERMINATIONS AND Package Termination Processing PROCESSING
SON-8 Au flashed pads IPC/JEDEC J-STD-020C 260°C / 20 - 40 s
FREQUENCY TEMPERATURE
20 T = 25°C ±5°C 0 0
CHARACTERISTICS
-20
]
Time accuracy -40 -60
[ppm
-80 –0.035*(T-T )2 ppm ±10% 0 Xtal 32.768 kHz -100
ΔF/F
-120 -140 Tuning Fork Crystal -160-60 -40 -20 0 20 40 60 80 100
T[°C] PIN CONNECTIONS TOP VIEW
Product Date Code
Pin Connection
#8 #5 1 VBACKUP Backup Supply Voltage 2 SDA Serial Data M034A1 3 INT Interrupt Output 3032 4 EVI Event Input 5 VSS Ground 6 V #1 #4 DD Power Supply Voltage 7 CLKOUT Clock Output Part Designation 8 SCL Serial Clock Input Pin 1 Index
ORDERING INFORMATION RV - 3032 - C7 TA QC RTC module Qualification QC
= Commercial Grade (Standard)
Product type QA
= Automotive Grade AEC-Q200
Package size Temperature range C7
= 3.2 x 1.5 x 0.8 mm
TA
= -40 to +85°C (Standard) A unique part number will be generated for each product specification, i.e: 20xxxx-MG01 1'000 pcs (in 12 mm tape on 7" reel) 20xxxx-MG03 3'000 pcs (in 12 mm tape on 7" reel) All specifications subject to change without notice. Micro Crystal AG Phone +41 32 655 82 82 Muehlestrasse 14 Fax +41 32 655 82 83 CH-2540 Grenchen sales@microcrystal.com Switzerland www.microcrystal.com Version 1.1/08.2020
