True RMS AC Current Transducer. Specifications. Connection Drawings. CR4110. CR4120. CR4150. CR4160. CR4170. CR4180. Outline Drawing
Línea de modelo para esta hoja de datos
Versión de texto del documento

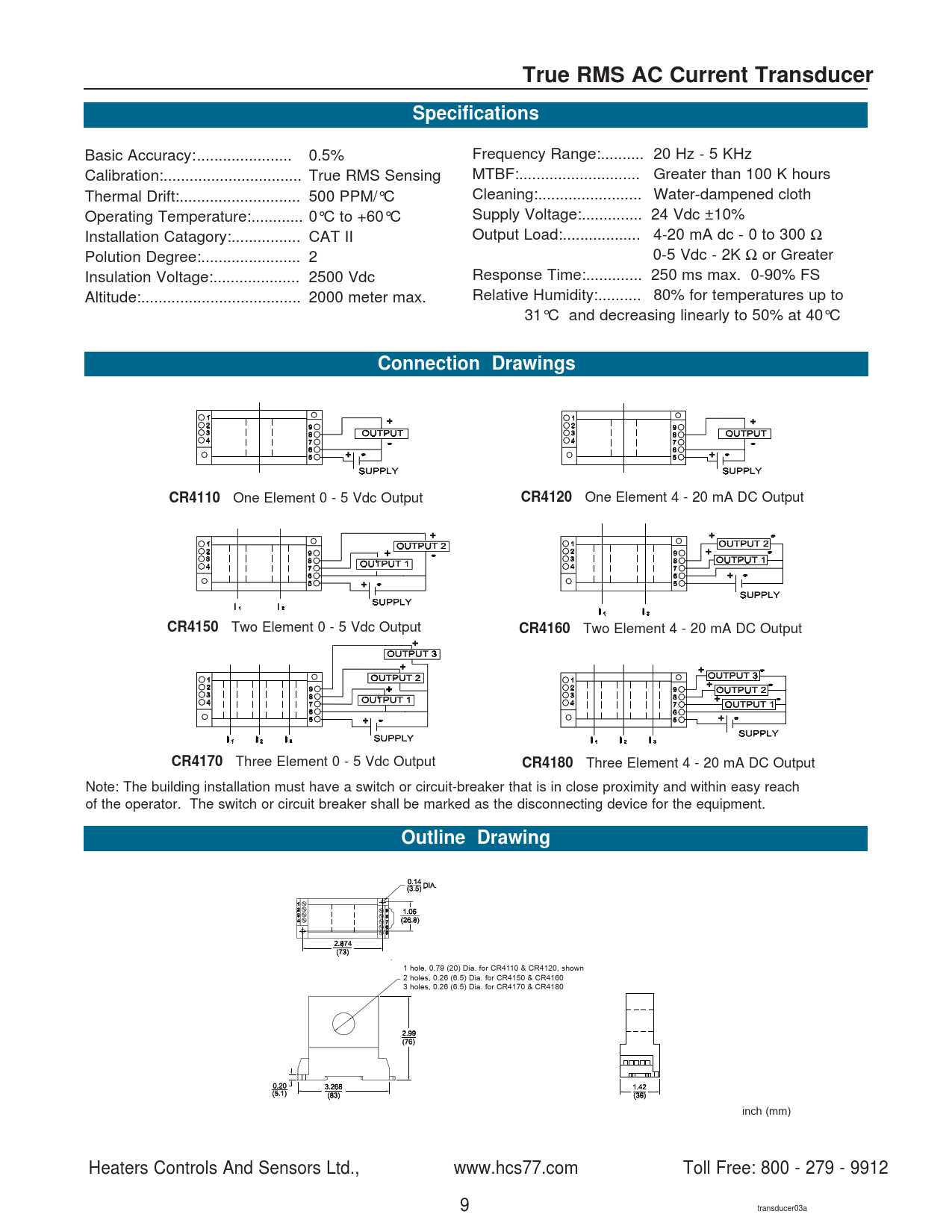

True RMS AC Current Transducer Specifications
Basic Accuracy:.. 0.5% Frequency Range:.. 20 Hz - 5 KHz Calibration:.. True RMS Sensing MTBF:.. Greater than 100 K hours Thermal Drift:.. 500 PPM/°C Cleaning:.. Water-dampened cloth Operating Temperature:.. 0°C to +60°C Supply Voltage:.. 24 Vdc ±10% Installation Catagory:.. CAT II Output Load:.. 4-20 mA dc - 0 to 300 Ω Polution Degree:... 2 0-5 Vdc - 2K Ω or Greater Insulation Voltage:.. 2500 Vdc Response Time:... 250 ms max. 0-90% FS Altitude:... 2000 meter max. Relative Humidity:.. 80% for temperatures up to 31°C and decreasing linearly to 50% at 40°C
Connection Drawings CR4110
One Element 0 - 5 Vdc Output
CR4120
One Element 4 - 20 mA DC Output
CR4150
Two Element 0 - 5 Vdc Output
CR4160
Two Element 4 - 20 mA DC Output
CR4170
Three Element 0 - 5 Vdc Output
CR4180
Three Element 4 - 20 mA DC Output Note: The building installation must have a switch or circuit-breaker that is in close proximity and within easy reach of the operator. The switch or circuit breaker shall be marked as the disconnecting device for the equipment.
Outline Drawing
1 hole, 0.79 (20) Dia. for CR4110 & CR4120, shown 2 holes, 0.26 (6.5) Dia. for CR4150 & CR4160 3 holes, 0.26 (6.5) Dia. for CR4170 & CR4180 inch (mm) Heaters Controls And Sensors Ltd., www.hcs77.com Toll Free: 800 - 279 - 9912 9 transducer03a
