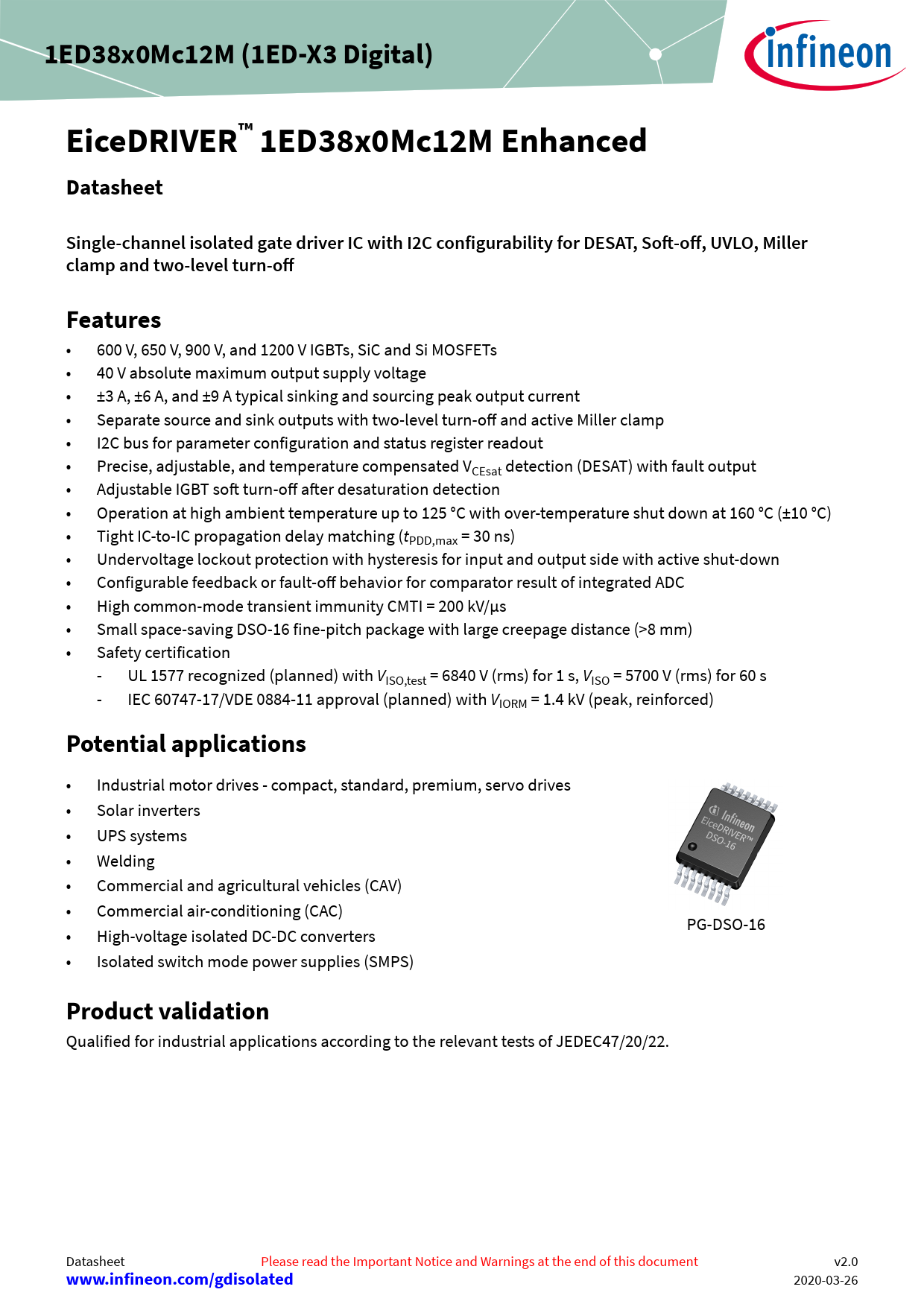

1ED38x0Mc12M (1ED-X3 Digital) EiceDRIVER™ 1ED38x0Mc12M Enhanced Datasheet Single-channel isolated gate driver IC with I2C configurability for DESAT, Soft-off, UVLO, Miller clamp and two-level turn-off Features
• 600 V, 650 V, 900 V, and 1200 V IGBTs, SiC and Si MOSFETs • 40 V absolute maximum output supply voltage • ±3 A, ±6 A, and ±9 A typical sinking and sourcing peak output current • Separate source and sink outputs with two-level turn-off and active Miller clamp • I2C bus for parameter configuration and status register readout • Precise, adjustable, and temperature compensated VCEsat detection (DESAT) with fault output • Adjustable IGBT soft turn-off after desaturation detection • Operation at high ambient temperature up to 125 °C with over-temperature shut down at 160 °C (±10 °C) • Tight IC-to-IC propagation delay matching (tPDD,max = 30 ns) • Undervoltage lockout protection with hysteresis for input and output side with active shut-down • Configurable feedback or fault-off behavior for comparator result of integrated ADC • High common-mode transient immunity CMTI = 200 kV/µs • Small space-saving DSO-16 fine-pitch package with large creepage distance (>8 mm) • Safety certification - UL 1577 recognized (planned) with VISO,test = 6840 V (rms) for 1 s, VISO = 5700 V (rms) for 60 s - IEC 60747-17/VDE 0884-11 approval (planned) with VIORM = 1.4 kV (peak, reinforced)
Potential applications
• Industrial motor drives - compact, standard, premium, servo drives • Solar inverters • UPS systems • Welding • Commercial and agricultural vehicles (CAV) • Commercial air-conditioning (CAC) PG-DSO-16 • High-voltage isolated DC-DC converters • Isolated switch mode power supplies (SMPS)
Product validation
Qualified for industrial applications according to the relevant tests of JEDEC47/20/22. Datasheet Please read the Important Notice and Warnings at the end of this document v2.0
www.infineon.com/gdisolated
2020-03-26 Document Outline Table of contents 1 Block diagram 2 Related products 3 Pin configuration and functionality 3.1 Pin configuration 3.2 Pin functionality 3.3 Configurable parameters via I2C 4 Functional description 4.1 Start-up and fault clearing 4.2 Supply 4.3 Input side logic 4.4 I2C bus 4.5 Operating states 4.6 Measurement 4.7 Monitoring 4.8 Desaturation protection 4.8.1 DESAT behavior 4.9 Gate driver output 4.9.1 Turn-on behavior 4.9.2 Turn-off and fault turn-off behavior 4.9.2.1 Hard switching turn-off 4.9.2.2 Two-level turn-off 4.9.2.3 Soft turn-off 4.9.3 Active shut-down 4.9.4 Active Miller clamp 4.10 Short circuit clamping 5 Electrical parameters 5.1 Absolute maximum ratings 5.2 Thermal parameters 5.3 Operating parameters 5.4 Electrical characteristics 5.4.1 Voltage supply 5.4.2 Logic input and output 5.4.3 Gate driver 5.4.4 Active Miller clamp 5.4.5 Dynamic characteristics 5.4.6 Desaturation protection 5.4.7 Two-level turn-off 5.4.8 Soft-off current source 5.4.9 Over-temperature protection 5.4.10 ADC measurement 6 Insulation characteristics 6.1 Certified according to VDE 0884-11 and IEC 60747-17 reinforced insulation (planned) 6.2 Recognized under UL 1577 (planned) 7 Package information Revision history Disclaimer
