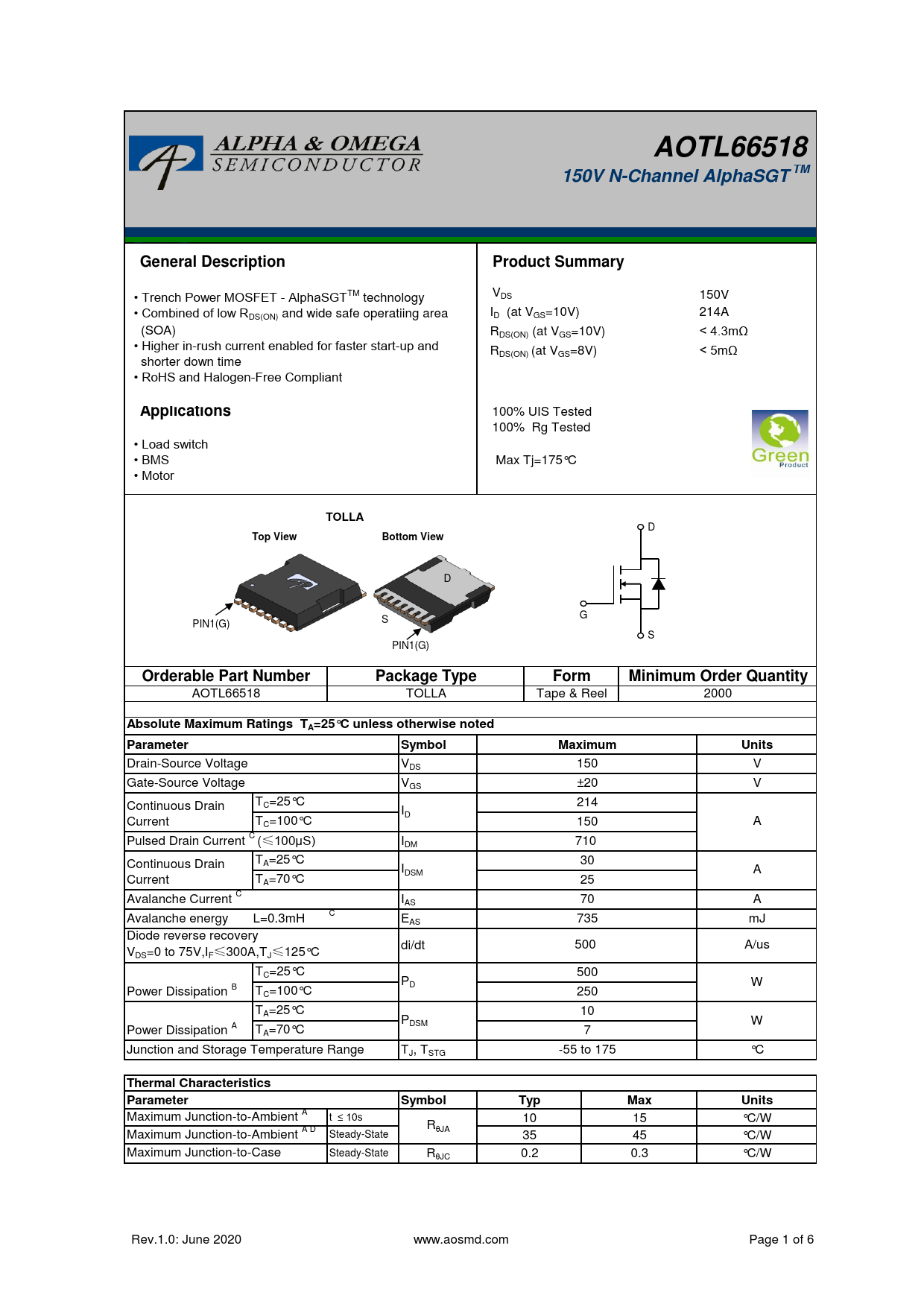

AOTL66518. 150V N-Channel AlphaSGT TM. General Description. Product Summary. Applications. TOLLA. Top View. Bottom View

Datasheet AOTL66518 Alpha & Omega

Línea de modelo para esta hoja de datos

Versión de texto del documento

AOTL66518 150V N-Channel AlphaSGT TM General Description Product Summary
VDS 150V • Trench Power MOSFET - AlphaSGTTM technology • Combined of low R I DS(ON) and wide safe operatiing area D (at VGS=10V) 214A (SOA) RDS(ON) (at VGS=10V) < 4.3mΩ • Higher in-rush current enabled for faster start-up and RDS(ON) (at VGS=8V) < 5mΩ shorter down time • RoHS and Halogen-Free Compliant
Applications
100% UIS Tested 100% Rg Tested • Load switch • BMS Max Tj=175°C • Motor
TOLLA
D
Top View Bottom View
D S G PIN1(G) S PIN1(G)
Orderable Part Number Package Type Form Minimum Order Quantity
AOTL66518 TOLLA Tape & Reel 2000
Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol Maximum Units
Drain-Source Voltage VDS 150 V Gate-Source Voltage VGS ±20 V TC=25°C 214 Continuous Drain ID Current TC=100°C 150 A Pulsed Drain Current C (≤100μS) IDM 710 TA=25°C Continuous Drain 30 IDSM A Current TA=70°C 25 Avalanche Current C IAS 70 A Avalanche energy L=0.3mH C EAS 735 mJ Diode reverse recovery di/dt 500 A/us V ≤ ≤ DS=0 to 75V,IF 300A,TJ 125°C TC=25°C 500 PD W Power Dissipation B TC=100°C 250 TA=25°C 10 PDSM W Power Dissipation A TA=70°C 7 Junction and Storage Temperature Range TJ, TSTG -55 to 175 °C
Thermal Characteristics Parameter Symbol Typ Max Units
Maximum Junction-to-Ambient A t ≤ 10s 10 15 °C/W Rq Maximum Junction-to-Ambient A D JA Steady-State 35 45 °C/W Maximum Junction-to-Case Steady-State RqJC 0.2 0.3 °C/W Rev.1.0: June 2020 www.aosmd.com Page 1 of 6
