Datasheet T1635H-8G (STMicroelectronics) - 9
| Fabricante | STMicroelectronics |
| Descripción | 16 A - 800 V - 150°C H-series Triac in D2PAK |
| Páginas / Página | 12 / 9 — T1635H-8G. D²PAK package information. Figure 16. D²PAK recommended … |
| Formato / tamaño de archivo | PDF / 290 Kb |
| Idioma del documento | Inglés |

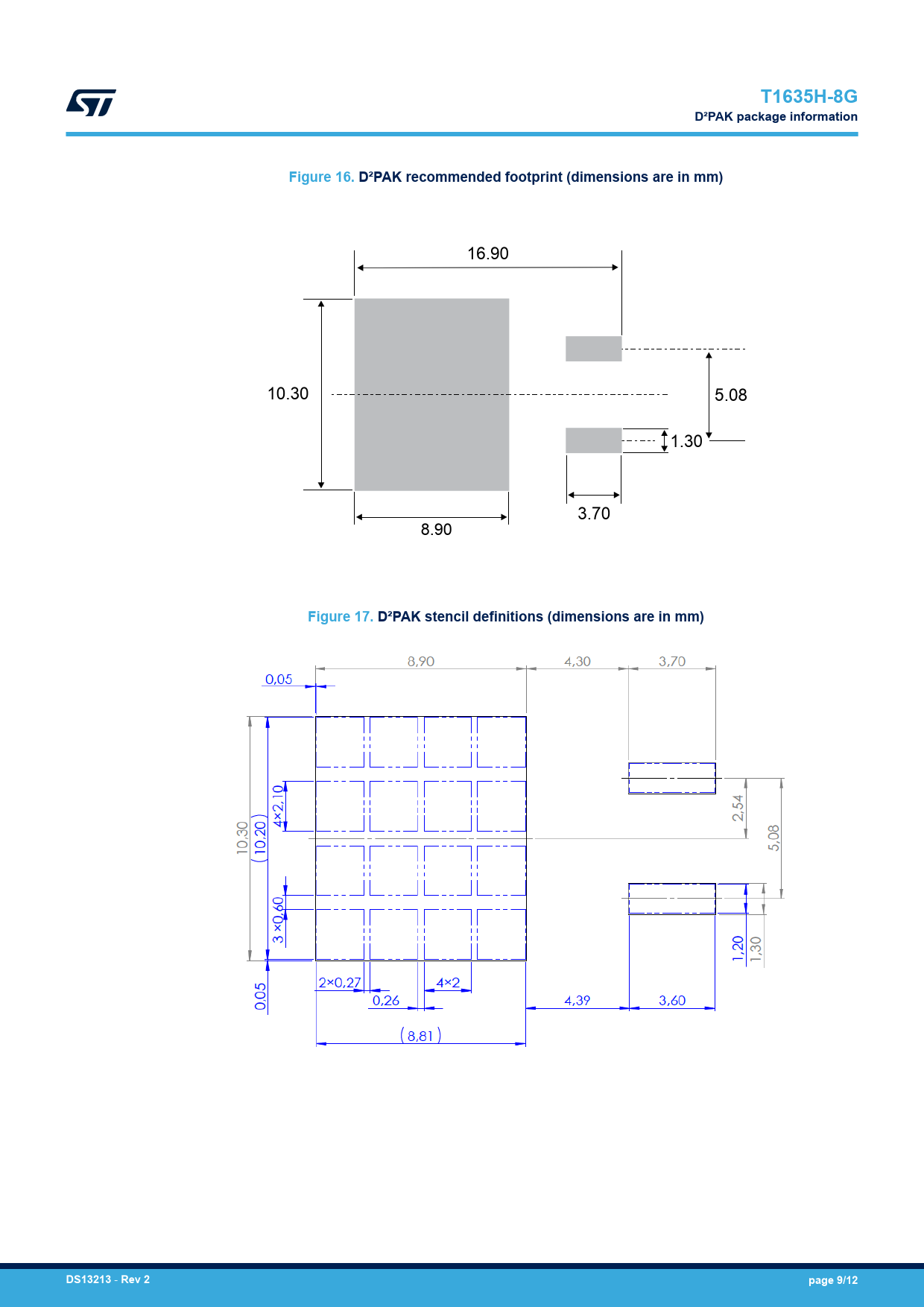

T1635H-8G. D²PAK package information. Figure 16. D²PAK recommended footprint (dimensions are in mm)
Línea de modelo para esta hoja de datos
Versión de texto del documento
T1635H-8G D²PAK package information Figure 16. D²PAK recommended footprint (dimensions are in mm)
16.90 10.30 5.08 1.30 3.70 8.90
Figure 17. D²PAK stencil definitions (dimensions are in mm) DS13213
-
Rev 2 page 9/12
