Datasheet T3035H-8G (STMicroelectronics) - 6
| Fabricante | STMicroelectronics |
| Descripción | 30 A - 800 V - 150°C H-series Triac in D²PAK |
| Páginas / Página | 12 / 6 — T3035H-8G. Characteristics (curves). Figure 13. Relative variation of … |
| Formato / tamaño de archivo | PDF / 270 Kb |
| Idioma del documento | Inglés |

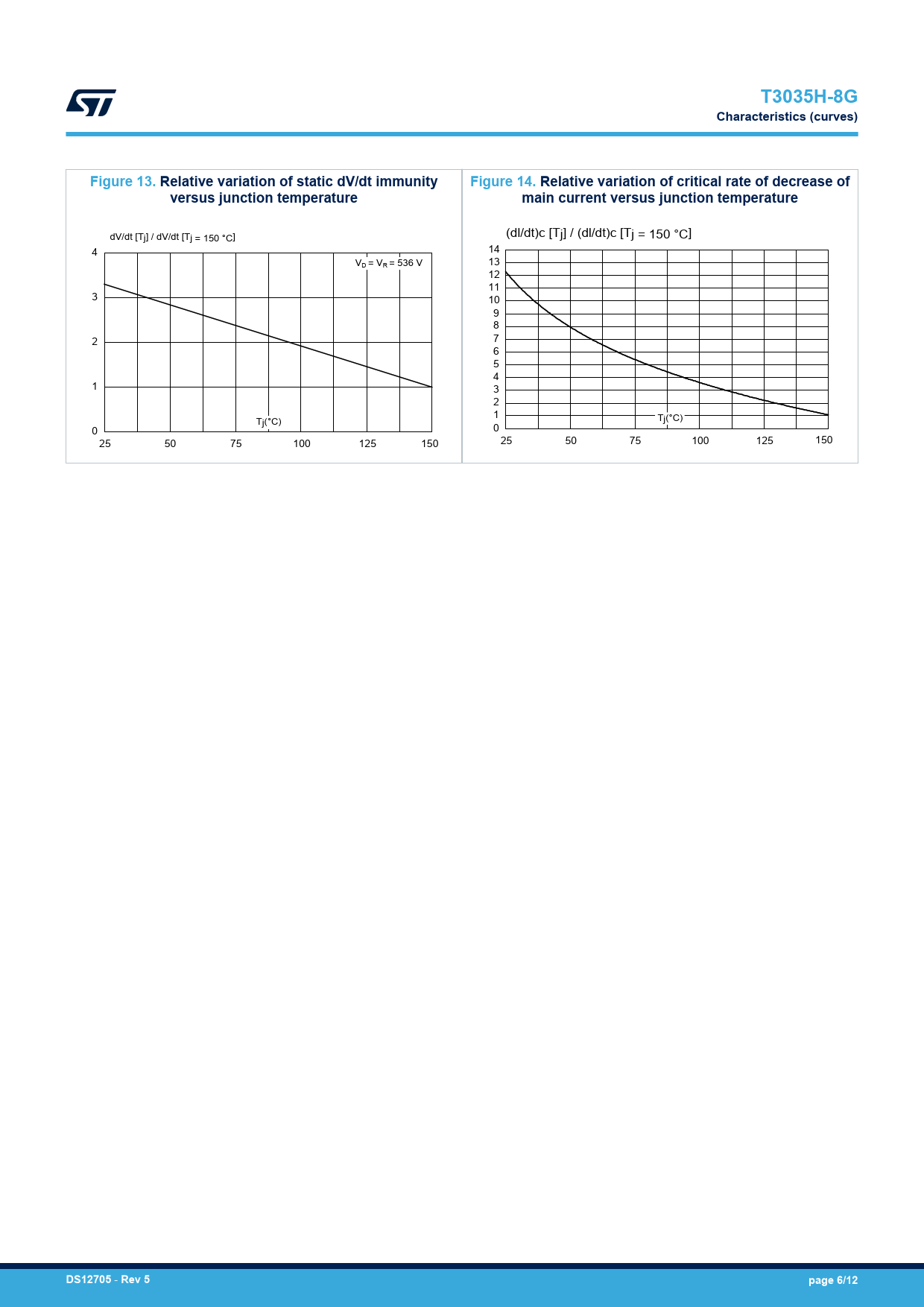

T3035H-8G. Characteristics (curves). Figure 13. Relative variation of static dV/dt immunity
Línea de modelo para esta hoja de datos
Versión de texto del documento
T3035H-8G Characteristics (curves) Figure 13. Relative variation of static dV/dt immunity Figure 14. Relative variation of critical rate of decrease of versus junction temperature main current versus junction temperature
dV/dt [T (dl/dt)c [T j] / dV/dt [Tj = 150 °C] j] / (dl/dt)c [Tj = 150 °C] 4 14 VD = VR = 536 V 13 12 11 3 10 9 8 2 7 6 5 4 1 3 2 1 T T j(°C) j(°C) 0 0 25 50 75 100 125 150 25 50 75 100 125 150
DS12705
-
Rev 5 page 6/12
