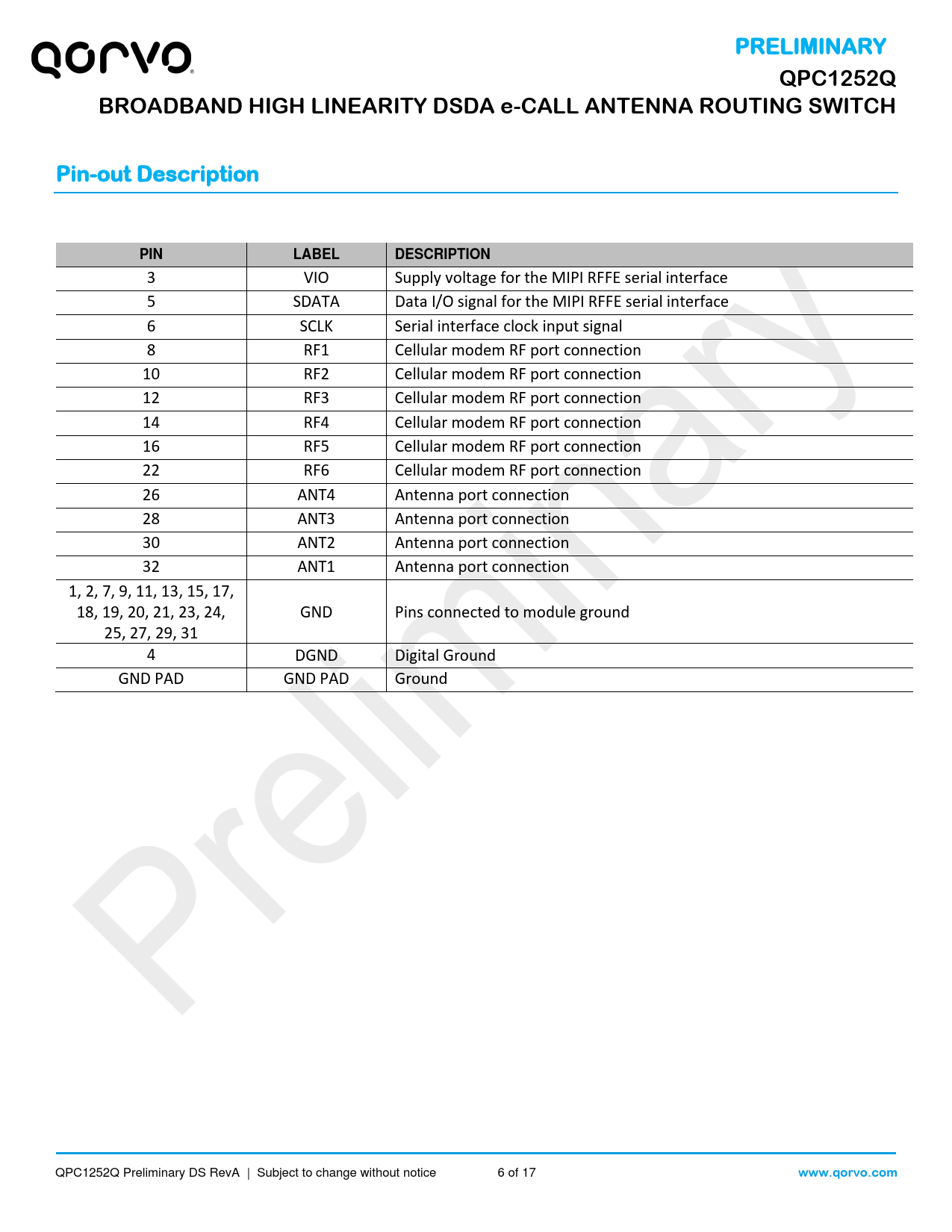

PRELIMINARY QPC1252Q BROADBAND HIGH LINEARITY DSDA e-CALL ANTENNA ROUTING SWITCH Pin-out Description PIN LABEL DESCRIPTION
3 VIO Supply voltage for the MIPI RFFE serial interface 5 SDATA Data I/O signal for the MIPI RFFE serial interface 6 SCLK Serial interface clock input signal 8 RF1 Cellular modem RF port connection 10 RF2 Cellular modem RF port connection 12 RF3 Cellular modem RF port connection 14 RF4 Cellular modem RF port connection 16 RF5 Cellular modem RF port connection 22 RF6 Cellular modem RF port connection 26 ANT4 Antenna port connection 28 ANT3 Antenna port connection 30 ANT2 Antenna port connection 32 ANT1 Antenna port connection 1, 2, 7, 9, 11, 13, 15, 17, 18, 19, 20, 21, 23, 24, GND Pins connected to module ground 25, 27, 29, 31 4 DGND Digital Ground GND PAD GND PAD Ground

QPC1252Q Preliminary DS RevA | Subject to change without notice 6 of 17
