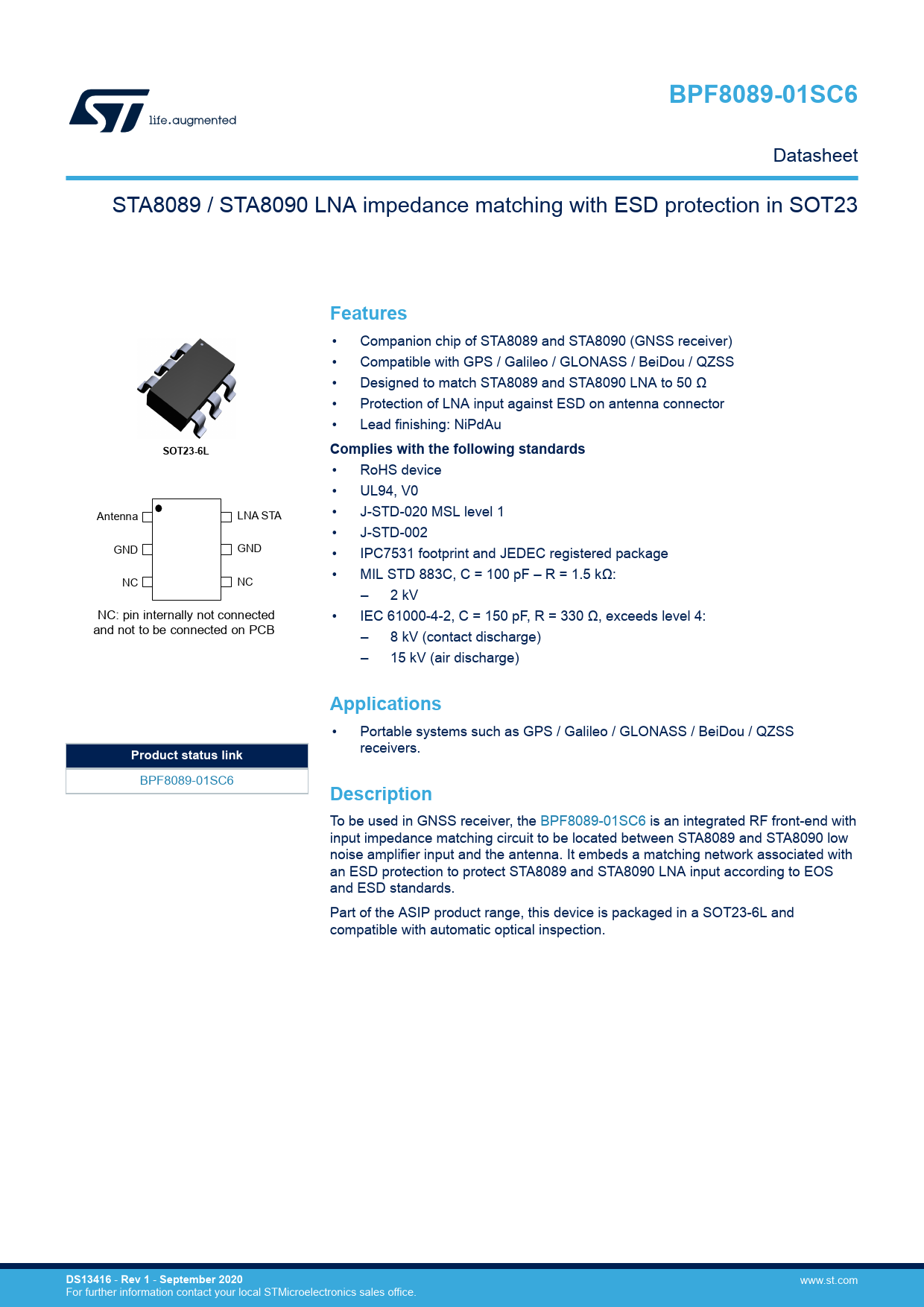

BPF8089-01SC6
Datasheet STA8089 / STA8090 LNA impedance matching with ESD protection in SOT23
Features
• Companion chip of STA8089 and STA8090 (GNSS receiver) • Compatible with GPS / Galileo / GLONASS / BeiDou / QZSS • Designed to match STA8089 and STA8090 LNA to 50 Ω • Protection of LNA input against ESD on antenna connector • Lead finishing: NiPdAu
SOT23-6L Complies with the following standards
• RoHS device • UL94, V0 Antenna LNA STA • J-STD-020 MSL level 1 • J-STD-002 GND GND • IPC7531 footprint and JEDEC registered package • MIL STD 883C, C = 100 pF – R = 1.5 kΩ: NC NC – 2 kV NC: pin internally not connected • IEC 61000-4-2, C = 150 pF, R = 330 Ω, exceeds level 4: and not to be connected on PCB – 8 kV (contact discharge) – 15 kV (air discharge)
Applications
• Portable systems such as GPS / Galileo / GLONASS / BeiDou / QZSS receivers.
Product status link
BPF8089-01SC6
Description
To be used in GNSS receiver, the BPF8089-01SC6 is an integrated RF front-end with input impedance matching circuit to be located between STA8089 and STA8090 low noise amplifier input and the antenna. It embeds a matching network associated with an ESD protection to protect STA8089 and STA8090 LNA input according to EOS and ESD standards. Part of the ASIP product range, this device is packaged in a SOT23-6L and compatible with automatic optical inspection.
DS13416
-
Rev 1
-
September 2020
