Datasheet PUSB3BB2DF (Nexperia) - 4
| Fabricante | Nexperia |
| Descripción | Extremely low clamping low capacitance ESD protection |
| Páginas / Página | 15 / 4 — Nexperia. PUSB3BB2DF. Extremely low clamping low capacitance ESD … |
| Revisión | 03112020 |
| Formato / tamaño de archivo | PDF / 1.9 Mb |
| Idioma del documento | Inglés |

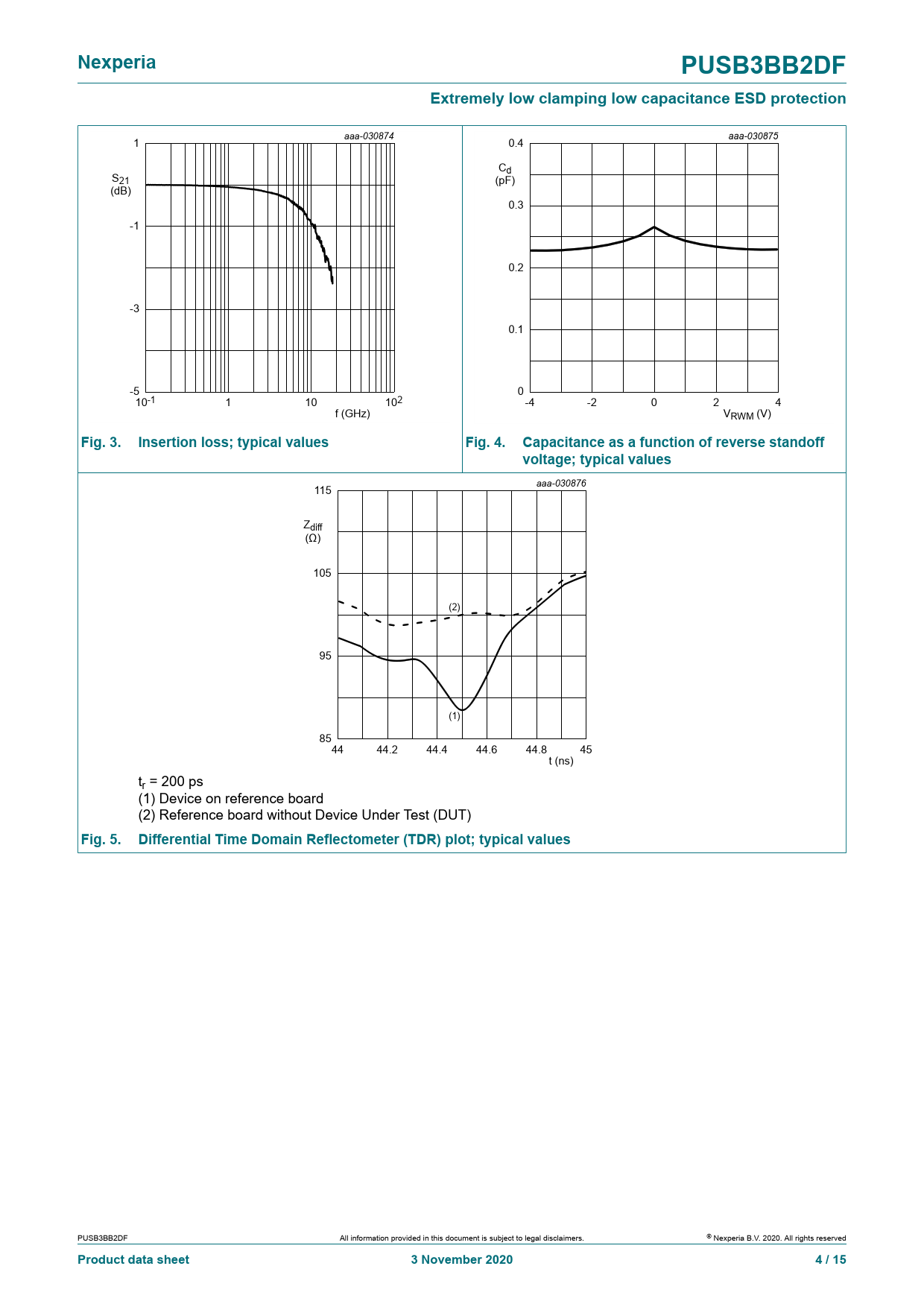

Nexperia. PUSB3BB2DF. Extremely low clamping low capacitance ESD protection. Fig. 3. Insertion loss; typical values
Línea de modelo para esta hoja de datos
Versión de texto del documento
Nexperia PUSB3BB2DF Extremely low clamping low capacitance ESD protection
aaa-030874 1 aaa-030875 0.4 Cd S21 (pF) (dB) 0.3 -1 0.2 -3 0.1 -5 0 10-1 1 102 10 -4 -2 0 2 4 f (GHz) VRWM (V)
Fig. 3. Insertion loss; typical values Fig. 4. Capacitance as a function of reverse standoff voltage; typical values
aaa-030876 115 Zdif (Ω) 105 (2) 95 (1) 8544 44.2 44.4 44.6 44.8 45 t (ns) tr = 200 ps (1) Device on reference board (2) Reference board without Device Under Test (DUT)
Fig. 5. Differential Time Domain Reflectometer (TDR) plot; typical values
PUSB3BB2DF All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2020. Al rights reserved
Product data sheet 3 November 2020 4 / 15
